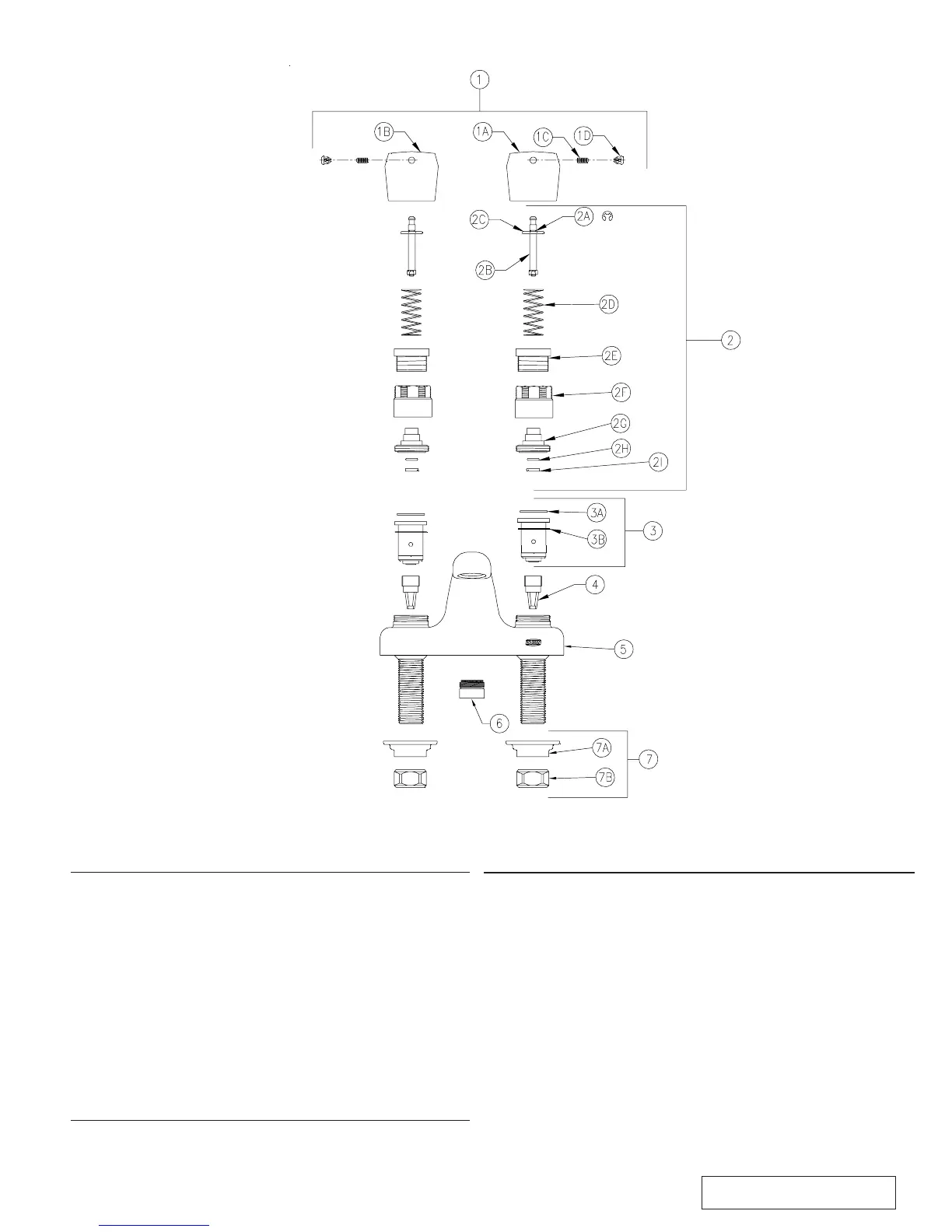

PAGE 3 OF 4
Z86500 PICTURED
Item Part Number Description Qty.
1 G61830 Dual Metering Handle Assembly 1
1A 60601002 Cold Metering Handle 1
1B 60601001 Hot Metering Handle 1
1C 62705001 Setscrew 2
1D G60562 Metering Index Buttons - H, C 1
60460001 Hot Index 1
60460002 Cold Index 1
2 G60561 Handle Nut Assembly 2
2A 60465001 E-Ring 1
2B 60451003 Stem 1
2C 60450001 Spring Seat 1
2D 60447001 Spring 1
2E 60446001 Adjustment Nut 1
Item Part Number Description Qty.
2F 60452001 Cap 1
2G 60456001 Stem Housing 1
2H 62499107 O-Ring 1
2I 60458001 O-Ring Retainer 1
3 G61754 Metering Cartridge Ass’y 2
3A 81121001 O-Ring 1
3B 81241001 Washer 1
4 G67787 Integral Shank Filter 2
5 92109001 4" [102mm] Centerset Body 1
6 G63561 13/16"-27 Male Spray Outlet - 0.25 GPC 1
7 G60502 Mounting Hardware 1
7A 59530002 Mounting Nut 2
7B 59532001 1/2" NPSM Riser Nut 2
Form # CF102 Date: 4/2/07
C.N. No. 106044 Rev. M
To Next Page
