Chapter 14 Bandwidth Control and Jumbo Frame
GS1500-24P User’s Guide
112
14.3 Bandwidth Control
Click Configuration > Bandwidth Control in the navigation panel to bring up
the screen as shown next.

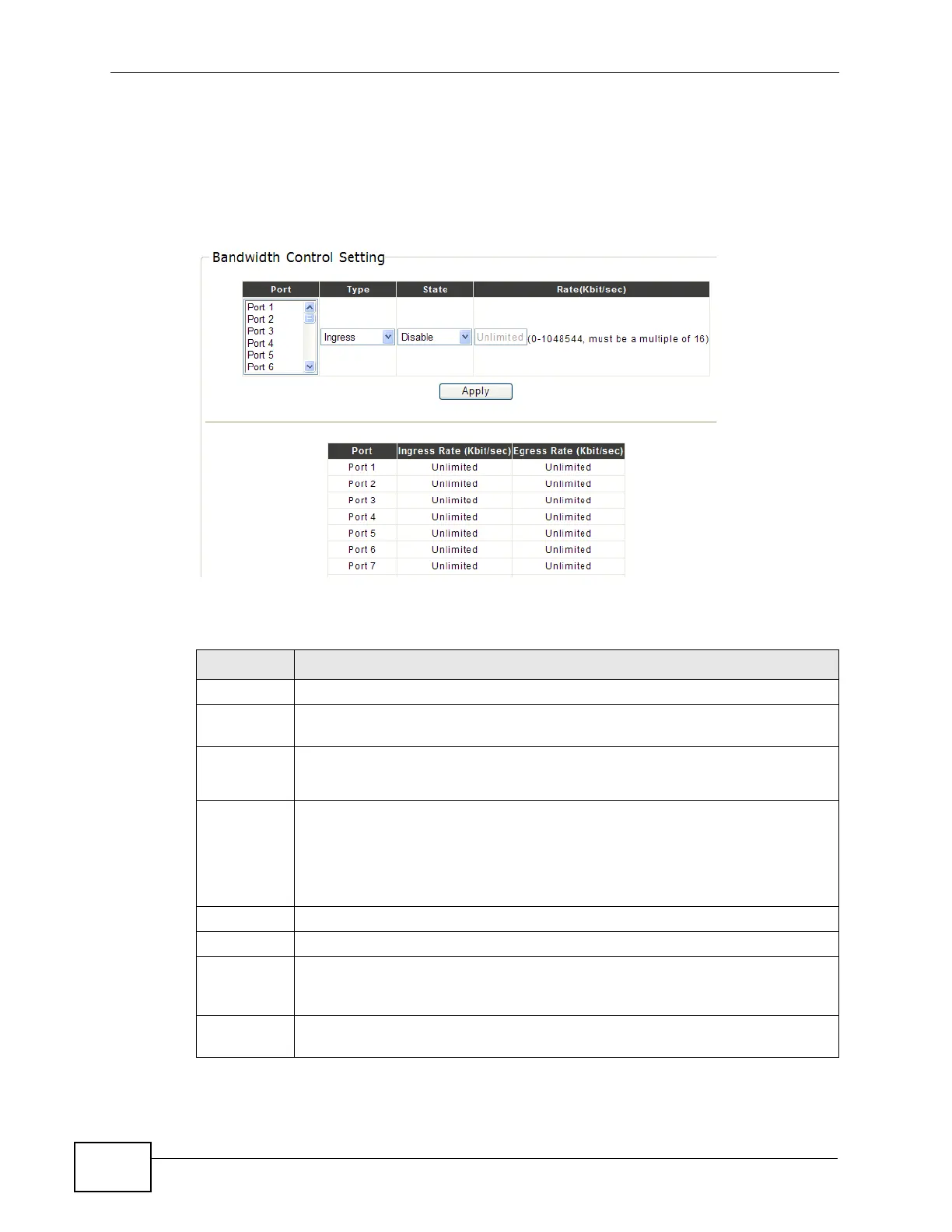

Figure 51 Configuration > Bandwidth Control
The following table describes the related labels in this screen.
Table 36 Configuration > Bandwidth Control
LABEL DESCRIPTION
Port Select the ports to enable bandwidth control on.
Type Select the type of traffic to control, Ingress (incoming) or Egress
(outgoing).
State Select Enable to activate bandwidth control on the selected ports.
Select Disable to turn off bandwidth control on the selected ports.
Rate (Kbit/
sec)
Configure the desired bandwidth available to the port’s traffic flow. Traffic
that exceeds the maximum bandwidth allocated (in cases where the
network is congested) is dropped.
Specify the bandwidth in kilobit per second (Kbps). Enter a number
between 0 and 1048544. The number must be a multiple of 16.
Apply Click Apply to save your changes to the Switch.
Port This field displays the port number.
Ingress
Rate (Kbit/
sec)
This field displays the maximum bandwidth allowed for incoming traffic on
the port in kilobits per second (Kbps). The default setting is Unlimited.
Egress Rate
(Kbit/sec)
This field displays the maximum bandwidth allowed for outgoing traffic on
the port in kilobits per second (Kbps). The default setting is Unlimited.
