Chapter 11 Mirroring
GS1500-24P User’s Guide
92
11.3 Port-based Mirroring
Click Configuration > Mirroring > Port-based Mirroring in the navigation
panel to display the following screen. Use this screen to select a monitor port and
specify the traffic flow to be copied to the monitor port.

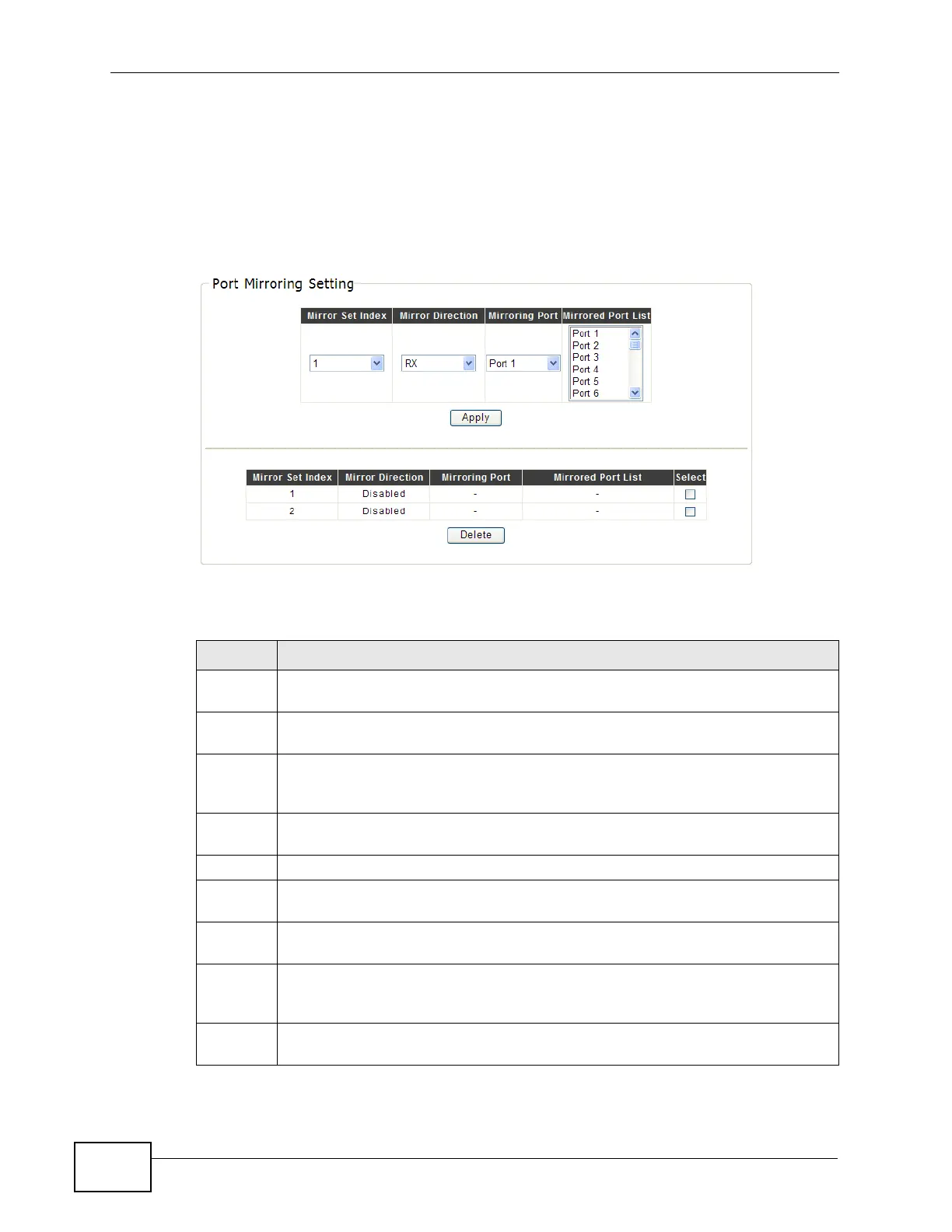

Figure 43 Configuration > Mirroring > Port-based MIrroring
The following table describes the labels in this screen.
Table 26 Configuration > Mirroring > Port-based Mirroring
LABEL DESCRIPTION
Mirror
Set Index
Specify the Mirror Set Index number from 1 or 2. The Switch can have two
mirroring ports set up at the same time.
Mirror
Direction
Specify the direction of the traffic to mirror by selecting from the drop-down
list box. Choices are TX (egress - outgoing) or RX (ingress - incoming).
Mirroring
Port
The mirroring port is the port you copy the traffic to in order to examine it in
more detail without interfering with the traffic flow on the original port(s).
Enter the port number of the mirroring port.
Mirrored
Port List
Select the ports or trunks to be monitored by the mirroring port.
Apply Click Apply to save your changes to the Switch.
Mirror
Set Index
This field displays the Mirror Set Index number.
Mirror
Direction
This field displays the direction of the traffic that is being monitored. This will
be either Tx (egress - outgoing) or Rx (ingress - incoming).
Mirroring
Port
This field displays the mirroring port. The mirroring port is the port the Switch
copies the traffic to in order to examine it in more detail without interfering
with the traffic flow on the original port(s).
Mirrored
Port List
This field displays the ports or trunks that are being monitored by the
mirroring port.
