www.123filter.com | (678) 261-7611 sales@ispringfilter.com Page 6

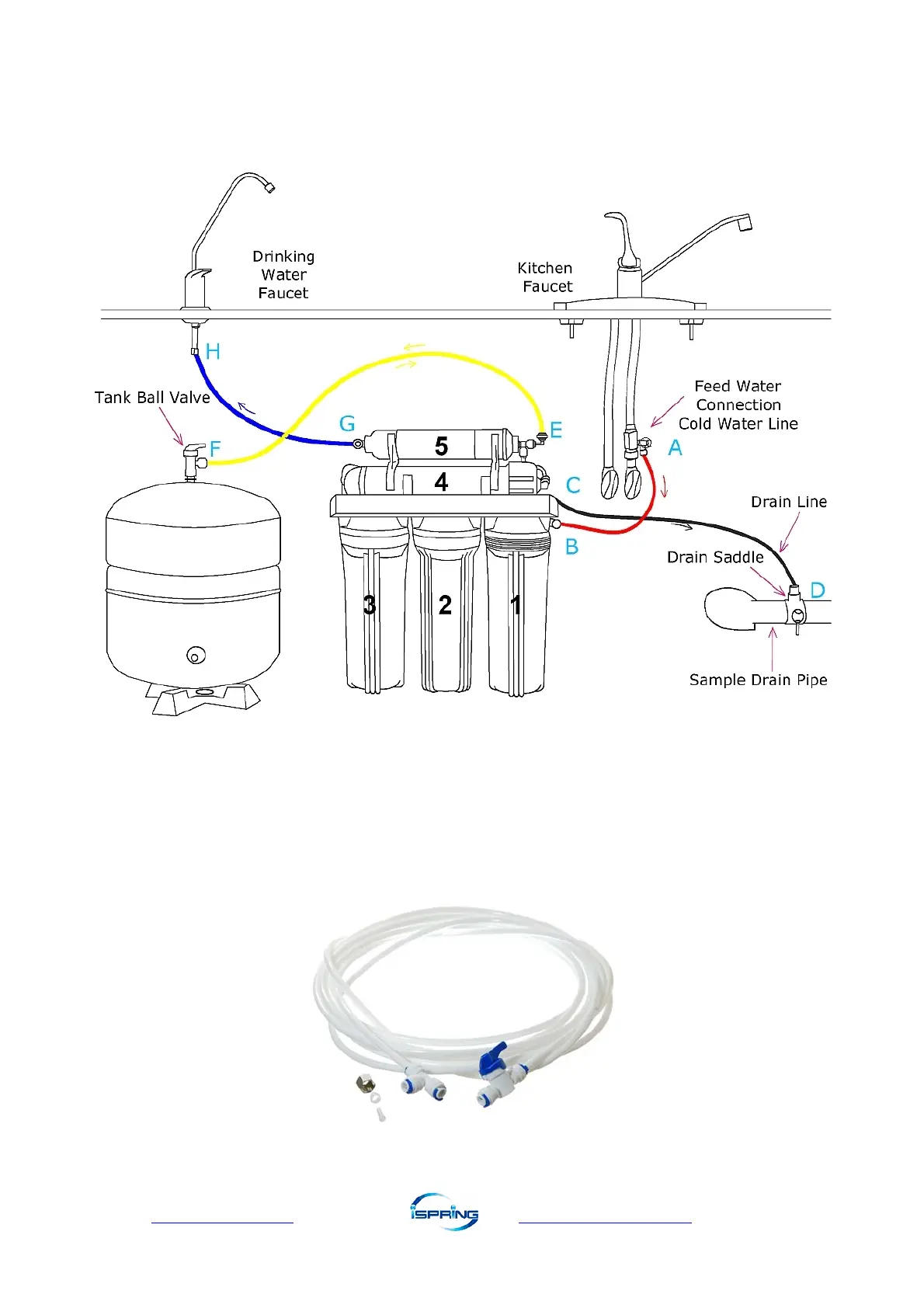

Sample Installation
Figure 5
A. Source water from Feed Water Adapter Æ B. Source water to water inlet next to 1st stage
C. Waste water from Flow Restrictor Æ D. Waste water to Drain Saddle
E. RO water from Automatic Shut-off Valve Æ F. RO water to Storage Tank
G. RO water from 5th stageÆ H. RO water to Drinking Faucet
An Ice Maker Kit (part# iSpring ICEK) can be purchased separately to feed RO water to refrigerator and get crystal
clear ice cubes and great tasting water at ease. It could make Drinking Water Faucet not absolutely necessary.
Figure 6
