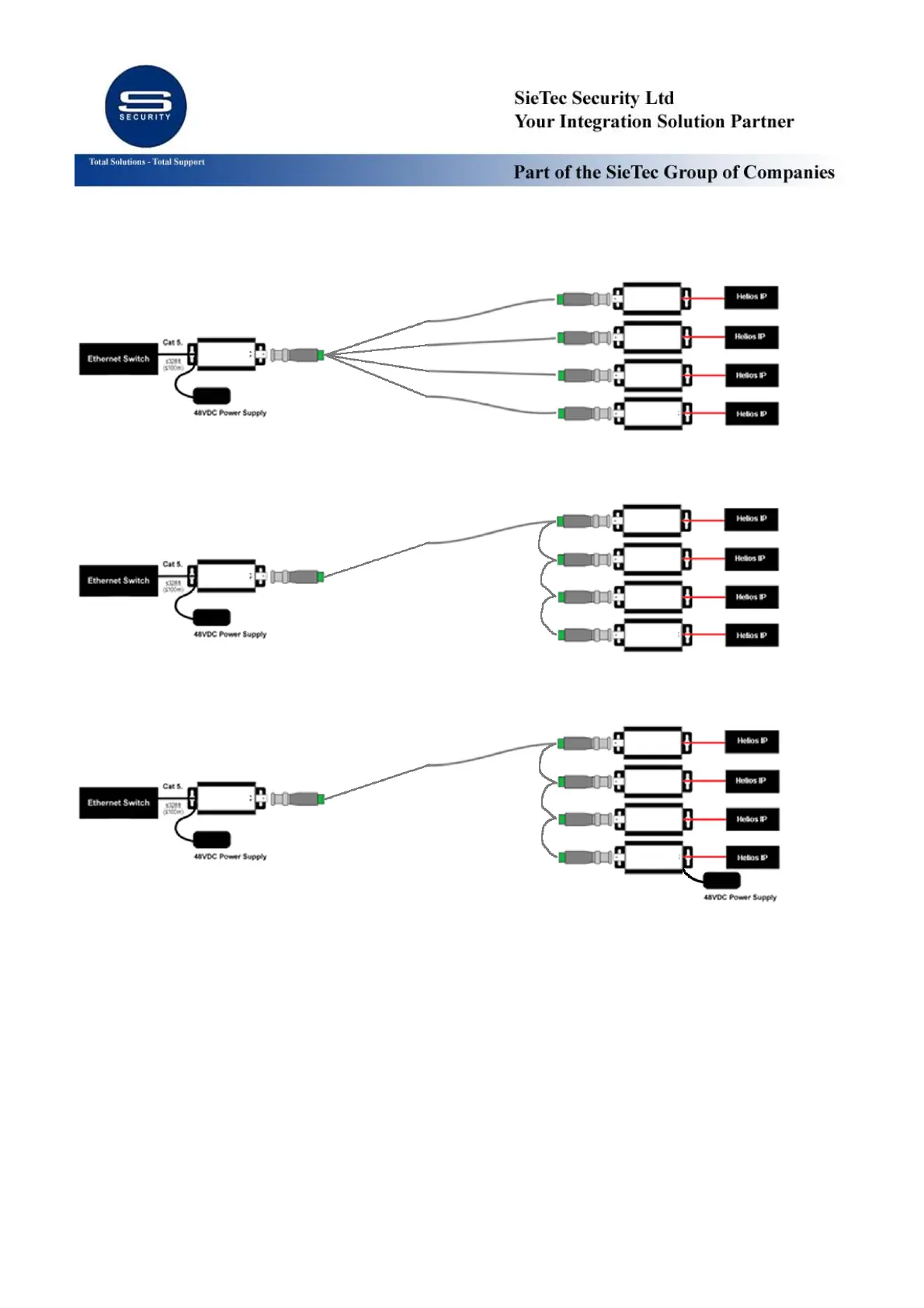

2. Use 4 separate cables of 2 wire twisted pair or 1 pair per Cat5e/Cat6 cable and connect
them to terminal block that is delivered together with the unit. You can connect all 4 cable pairs to
corresponding distant terminal.
OR
OR
Distance for the total of cable run must meet the criteria as advised ie. total length must not
exceed 220m with PoE and 750m with the far end device powered locally. Also in some
instances a 48Vdc PoE power supply may be needed at the distant end as shown in the last
image.
If you are using more than one slave unit connected to a master unit we recommend the
use of a power supply also on the side of the slave unit to guarantee best performance.
