IGMP Snooping 171

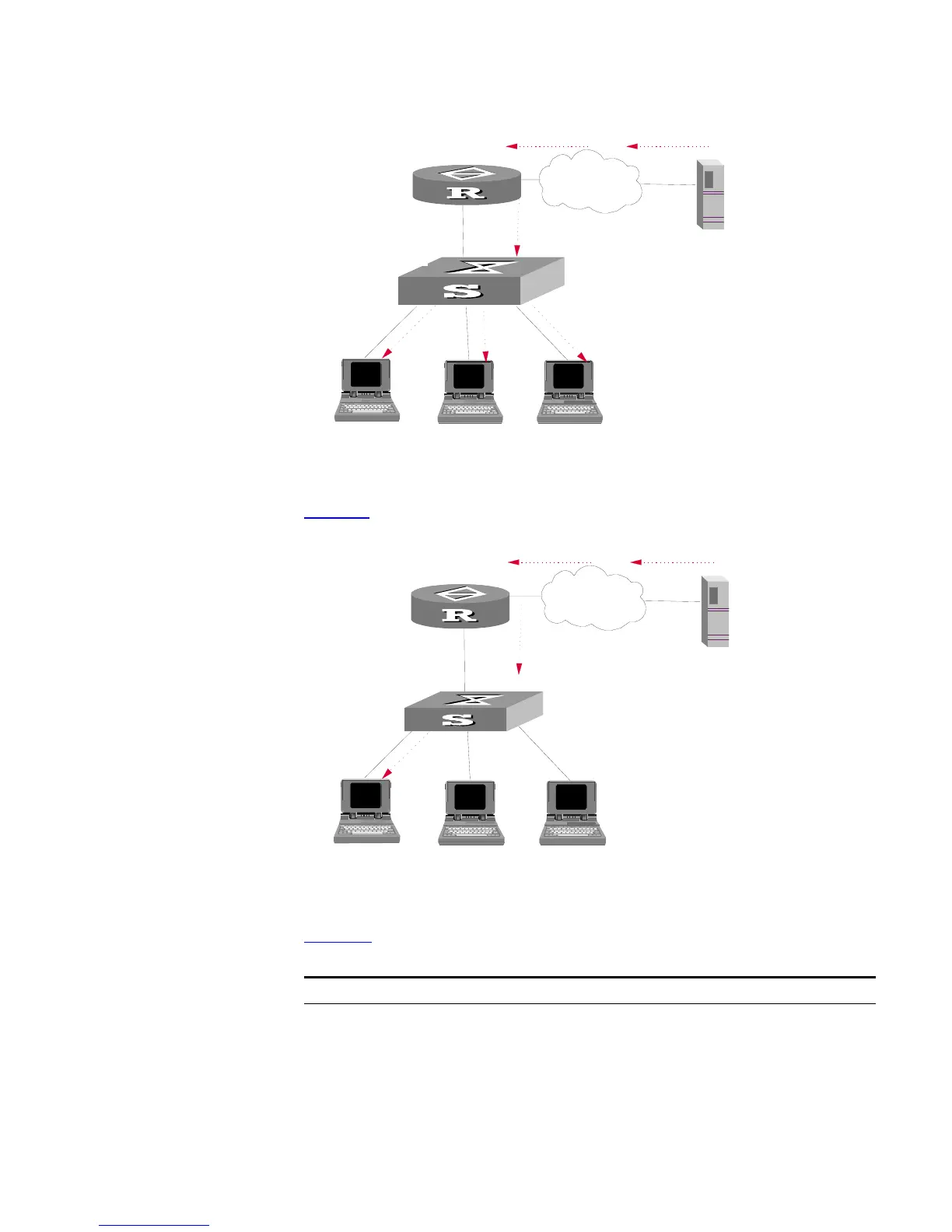

Figure 39 Multicast packet transmission without IGMP Snooping
When IGMP Snooping operates, packets are not forwarded to all ports, see
Figure 40.
Figure 40 Multicast packet transmission when IGMP Snooping runs
IGMP Snooping Terminology
Tabl e 176 explains switching terminology relevant to IGMP Snooping.
Tab le 176 Switching Terminology relevant to IGMP Snooping
Term Meaning
Router Port The port of the switch, directly connected to the multicast
router.
Multicast member port The port connected to the multicast member. The multicast
member refers to a host that joined a multicast group.
MAC multicast group The multicast group is identified with MAC multicast address
and maintained by the Switch 5500G-EI.
