GBIC Operation 29

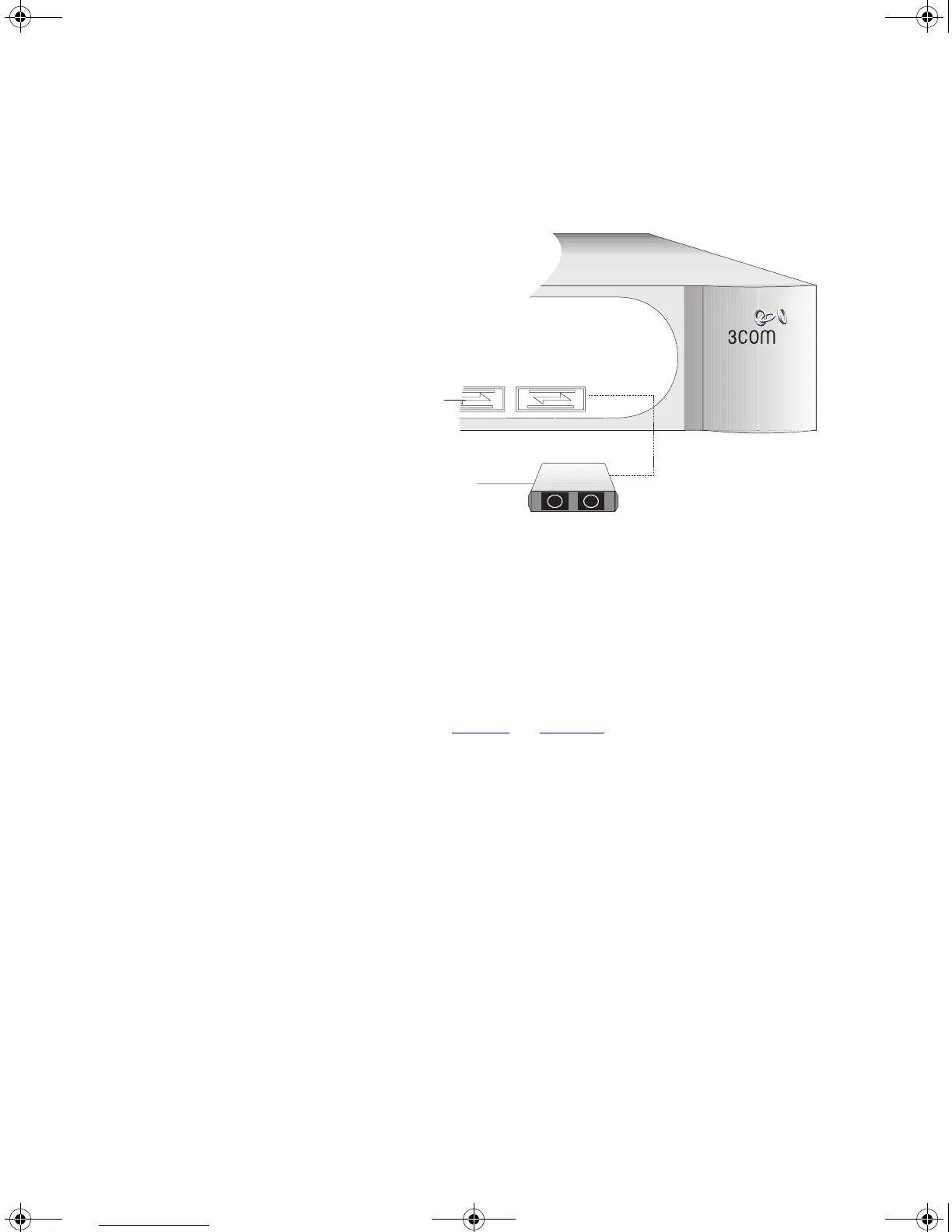

Figure 7 Inserting a GBIC Transceiver
3 The transceiver connects to the network using a duplex SC connector.
Attach a male duplex SC connector on the network cable into the duplex
SC connector on the transceiver.
4 Connect the other end of the cable to a device fitted with an appropriate
Gigabit Ethernet connection.
5 Check the LEDs on the front of the Switch to ensure that it is operating
correctly. Refer to
“LEDs” on page 15 for more information.
GBIC Ports
GBIC
Transceiver
erstack 3 Switch 4228G
DUA1730-0AAA04.book Page 29 Thursday, November 17, 2005 2:59 PM
