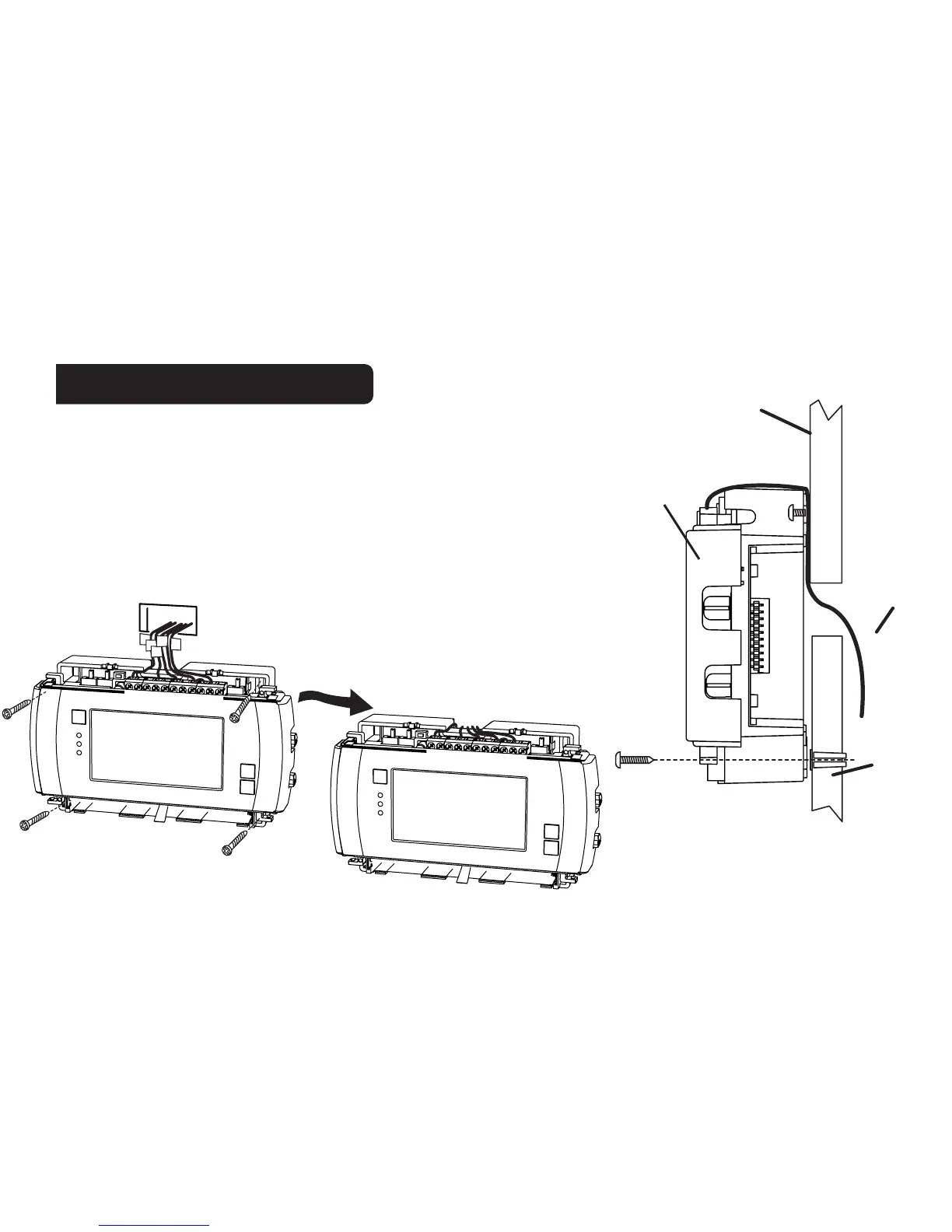

Mount the 3M-30 to wall
1. Hold the 3M-30 against the wall, with the wires coming over the
top above terminal block. The 3M-30 will cover the hole in the wall.
2. Position 3M-30 for best appearance.
3. Attach the 3M-30 to the wall with the screws provided.
4. If you are mounting the 3M-30 to sheet rock or if you are using
the old mounting holes, use the plastic anchors provided.
5. Mark rst and drill a 3/16-in.(4.8mm) hole for the insert at each
screw location, then mount the unit.
Screw to wall
Place wires like this
C
B
O
W
W
2
Y
Y2
R
H
R
C
G
A
Wall
Wires
Wall
anchor
from
HEAT/COOL
system
C
B
O
W
W
2
Y
Y2
R
H
R
C
G
A
C
W
Y
RH
G
3M-30
