2.5 Fully pull out sliding connector nest from the cable
holder. Put marking(s) on the fiber with a marking pen
1st marking: at the edge of holder body
2nd marking: at the indicator “0.9”
(900um fiber only)

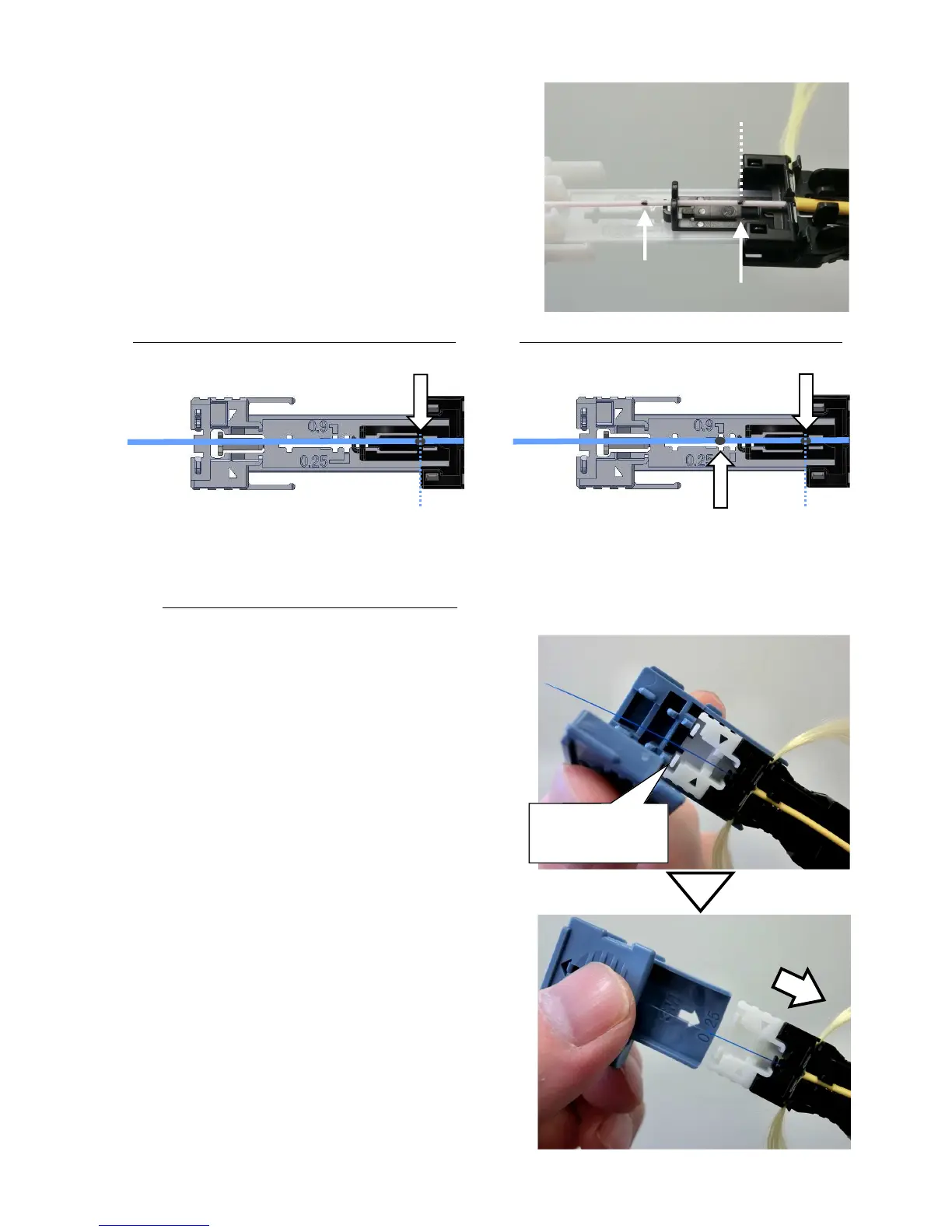

Marking locations for cable with 250µm fiber inside Marking locations for cable with 900µm fiber inside
1st marking
2nd marking
(900um fiber only)
2.6 Bring the sliding nest back to original position. Strip buffer coating using appropriate stripping tool
Stripping 250µm fiber using disposable stripper
Place cable holder on the stripper such that cable holder butt up against the stop. Close the stripper and pull
out the cable holder
Abut cable holder
against stop
Caution: Do NOT OVERUSE the stripper (up to 20 strip-
ping) or may damage stripped fiber
Caution: Do NOT STRIP the same fiber twice or may dam-
age the stripped fiber.
