Parts Page
PARTS LIST FOR PN 20239 & 25128, 12,000 MAX RPM
DIE GRINDERS (Series C)

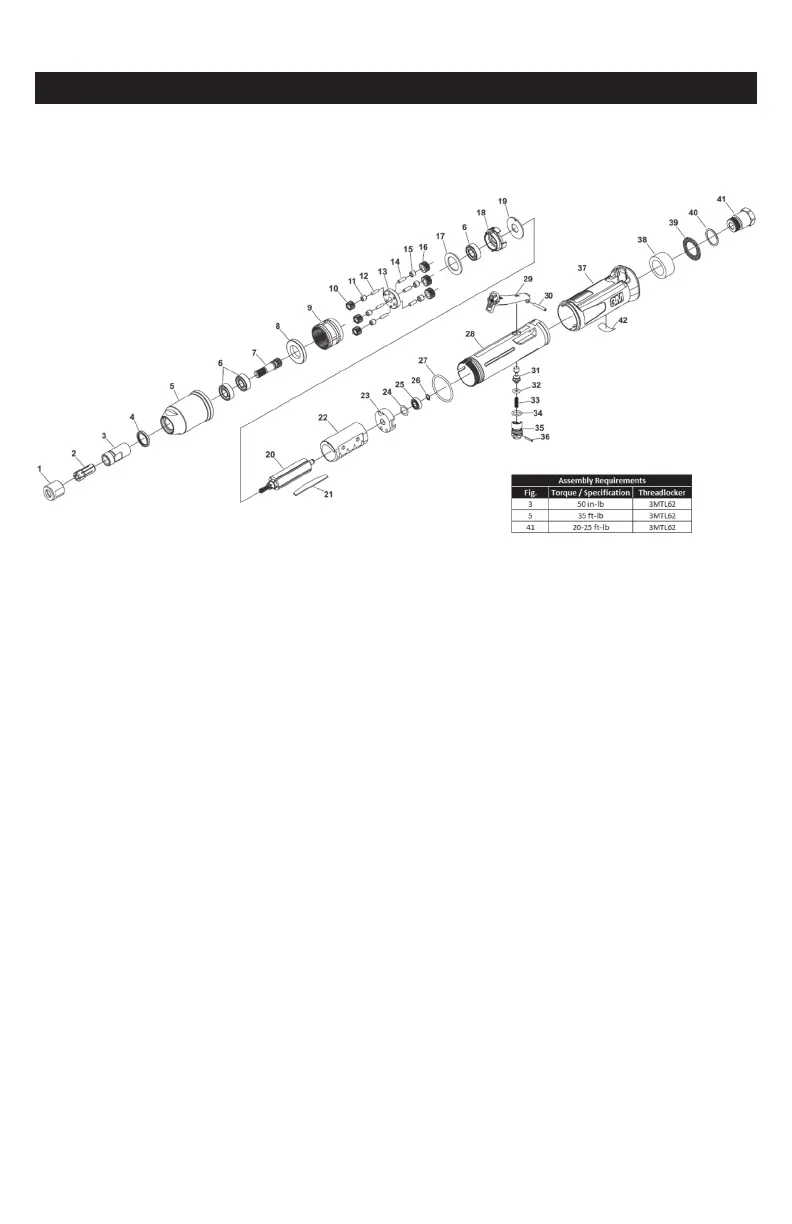

Fig. 3M PN Description Qty.
1 06572 Collet Nut 1
2 06575 Collet 1/4" 1
2 06545 Collet 3/8" OPT
2 06546 Collet 8 mm OPT
2 06573 Collet 1/8" OPT
2 06574 Collet 3/16" OPT
2 06576 Collet 3 mm OPT
2 06577 Collet 6 mm OPT
3 06571 Collet Body 1
4 29005 Grease Seal 1
5 87410 Nose Piece 1
6 06510 Ball Bearing 3
(3/8" x 7/8" x 9/32")
7 87411 Output Shaft 1
8 87409 Spacer 1
9 87408 Ring Gear 1
10 30431 15 Tooth Planet Gear 3
11 30366 Bearing Needle 3
12 30370 Pin 3
13 87407 Carrier Plate 1
14 30426 Gear Pin 3
15 30388 Needle Bearing 1
16 87481 Planet Gear 3
17 87438 Wear Plate 1
18 28992 Front End Plate 1
19 29004 Font Wear Plate 1
20 87412 Rotor 1
Fig. 3M PN Description Qty.
21 28979 Vane Kevlar 1 HP (set of 5) 1
22 06563 Cylinder 1
23 28981 Rear Endplate 1
24 06527 Wave Washer 1
0.440" x 0.618" x 0.008"
25 06508 Ball Bearing 1
(1/4" x 5/8" x 0.1961")
26 30369 External Retaining Ring 1
27 06609 O-Ring (1.38" x 0.094") 1
28 28977 Housing 1 HP 1
29 06642 Lever Assembly 1
30 87402 Roll Pin 1
31 28980 Trigger Valve 1
32 28983 O-Ring 1
33 06614 Spring 1
34 06620 O-Ring (0.364" x 0.070") 1
35 06627 Air Regulator 1
36 06616 Pin 1
37 28978 Housing Cover 1 HP 1
38 29006 Mufer 1
39 28982 Diffuser Screen 1
40 29007 O-Ring 1
41 28991 3/8" NPT Bushing 1
42 87126 Label 1
Not
Shown 06569 9/16" x 3/4" Wrench 2
