Parts Page

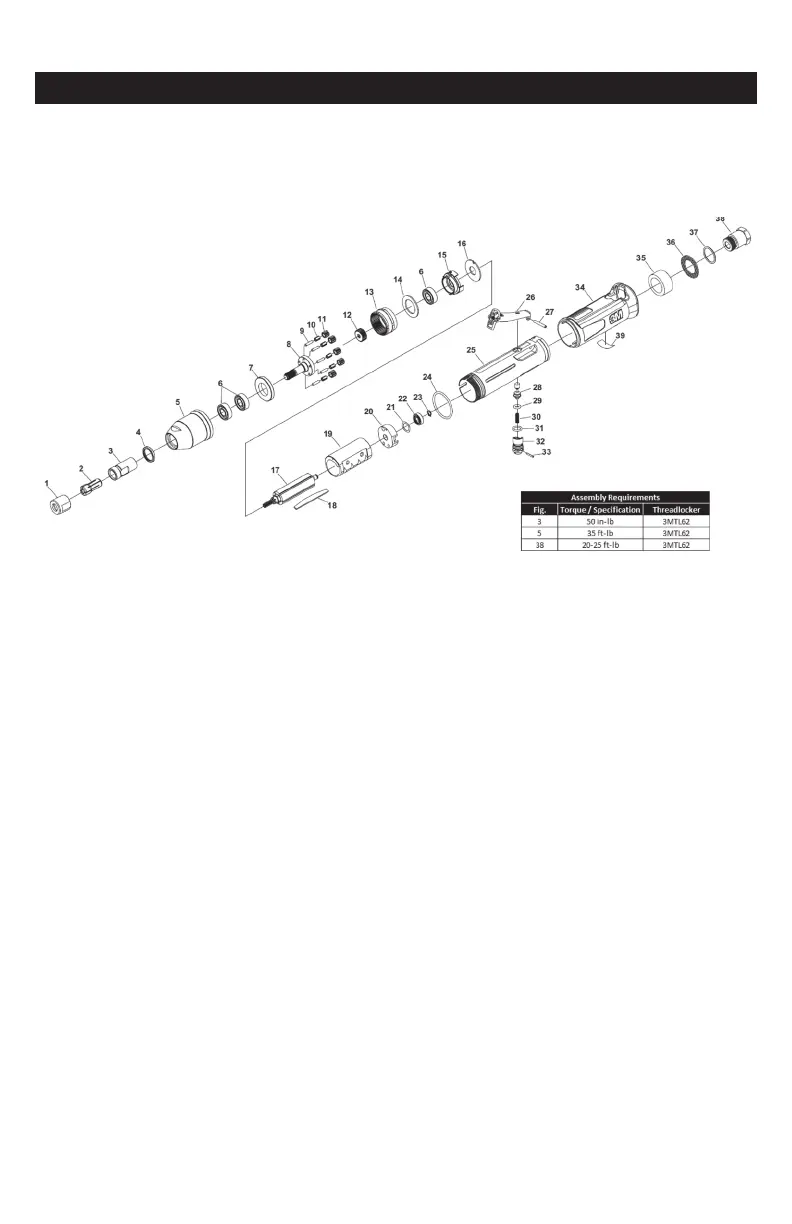

PARTS LIST FOR PN 20240 & 25129, 8,000 MAX RPM
DIE GRINDERS (Series C)
Fig. 3M PN Description Qty.
1 06572 Collet Nut 1
2 06575 Collet 1/4" 1
2 06545 Collet 3/8" OPT
2 06546 Collet 8 mm OPT
2 06573 Collet 1/8" OPT
2 06574 Collet 3/16" OPT
2 06576 Collet 3 mm OPT
2 06577 Collet 6 mm OPT
3 06571 Collet Body 1
4 29005 Grease Seal 1
5 87415 Nose Piece 1
6 06510 Ball Bearing 3
(3/8" x 7/8" x 9/32")
7 87409 Spacer 1
8 87413 Carrier 1
9 87483 Pin 5
10 55758 Roller Cage 5
11 05314 11 Tooth Planet Gear 5
12 05313 25 Tooth Sun Gear 1
13 87413 Ring Gear 1
14 87438 Wear Plate 1
15 28992 Front Endplate 1
16 29004 Font Wear Plate 1
17 87412 Rotor 1
18 28979 Vane Kevlar 1 HP (set of 5) 1
Fig. 3M PN Description Qty.
19 06563 Cylinder 1
20 28981 Rear Endplate 1
21 06527 Wave Washer 1
0.440" x 0.618" x 0.008"
22 06508 Ball Bearing 1
23 30369 External Retaining Ring 1
24 06609 O-Ring (1.38" x 0.094") 1
25 28977 Housing 1 HP 1
26 06642 Lever Assembly 1
27 87402 Roll Pin 1
28 28980 Trigger Valve 1
29 28983 O-Ring 1
30 06614 Spring 1
31 06620 O-Ring (0.364" x 0.070") 1
32 06627 Air Regulator 1
33 06616 Pin 1
34 28978 Housing Cover 1 HP 1
35 29006 Mufer 1
36 28982 Diffuser Screen 1
37 29007 O-Ring 1
38 28991 3/8" NPT Bushing 1
39 87126 Label 1
Not
Shown 06569 9/16" x 3/4" Wrench 2
