Parts Page

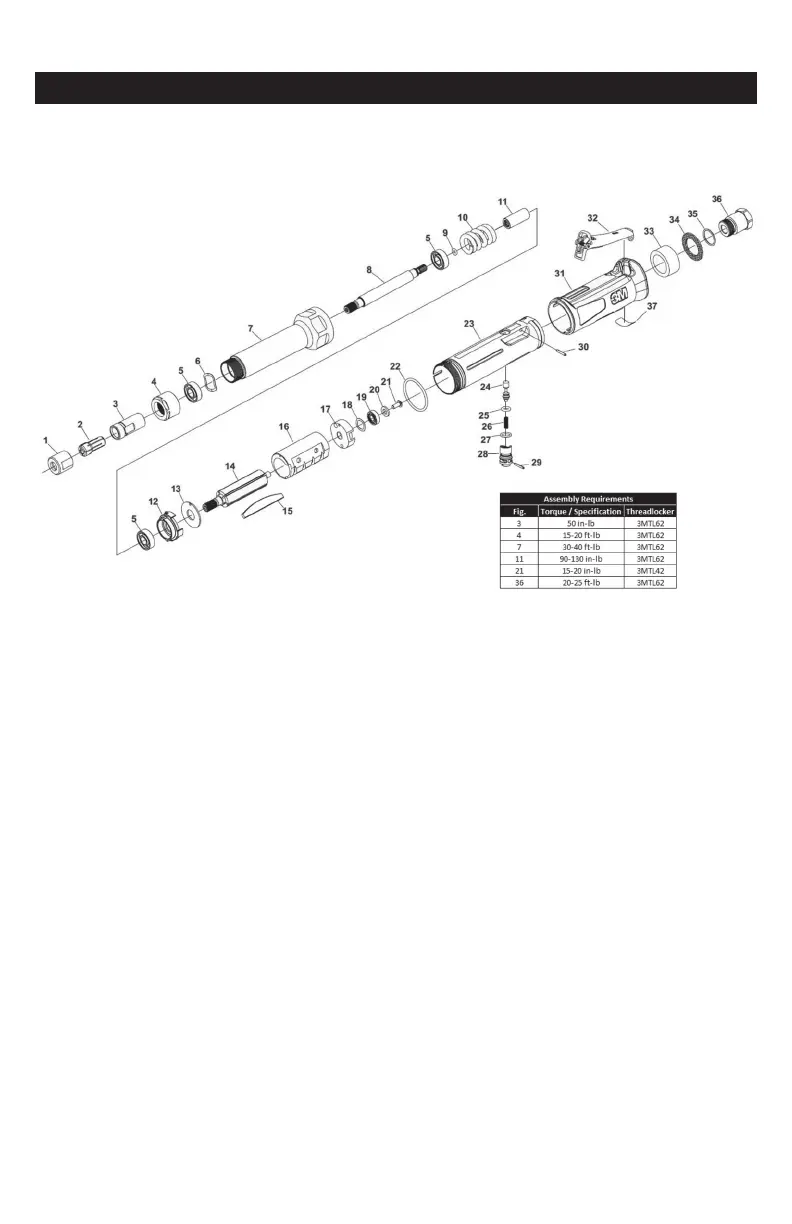

PARTS LIST FOR PN 28770, 18,000 MAX RPM,
1 HP EXTENDED DIE GRINDER (Series C)
Fig. 3M PN Description Qty.
1 06572 Collet Nut 1
2 06575 Collet 1/4" 1
2 06545 Collet 3/8" OPT
2 06546 Collet 8 mm OPT
2 06573 Collet 1/8" OPT
2 06574 Collet 3/16" OPT
2 06576 Collet 3 mm OPT
2 06577 Collet 6 mm OPT
3 06571 Collet Body 1
4 28988 Bearing Retainer 1
5 06510 Ball Bearing 3
(3/8" x 7/8" x 9/32")
6 28787 Wave Washer 1
7 28987 Extension Housing 1
8 87425 Extension Shaft 1
9 28733 O-Ring 1
10 55097 Spring 1
11 87403 Coupler 1
12 28992 Front Endplate 1
13 29004 Front Wear Plate 1
14 06561 Rotor 1
15 28979 Vane Kevlar 1 HP (set of 5) 1
16 06601 Cylinder 1
17 28981 Rear End Plate 1
18 06527 Wave Washer 1
0.440" x 0.618" x 0.008"
Fig. 3M PN Description Qty.
19 06508 Ball Bearing 1
1/4" x 5/8" x 0.196"
20 06567 Washer 1
0.251" x 0.468" x 0.063"
21 06568 Screw #8-32 x 3/8" 1
22 06609 O-Ring 1.38" x 0.094" 1
23 28977 Housing 1 HP 1
24 28980 Trigger Valve 1
25 28983 O-Ring 1
26 06614 Spring 1
27 06620 O-Ring (0.375" x 0.063") 1
28 06627 Air Regulator 1
29 06616 Pin 1
30 87402 Pin 1
31 28978 Housing Cover 1 HP 1
32 06642 Lever Assembly 1
33 29006 Mufer 1
34 28982 Screen Diffuser 1
35 29007 O-Ring 1
36 28991 Inlet 3/8" NPT 1
37 87126 Label 1
Not
Shown 06569 9/16" x 3/4" Wrench 2
