7

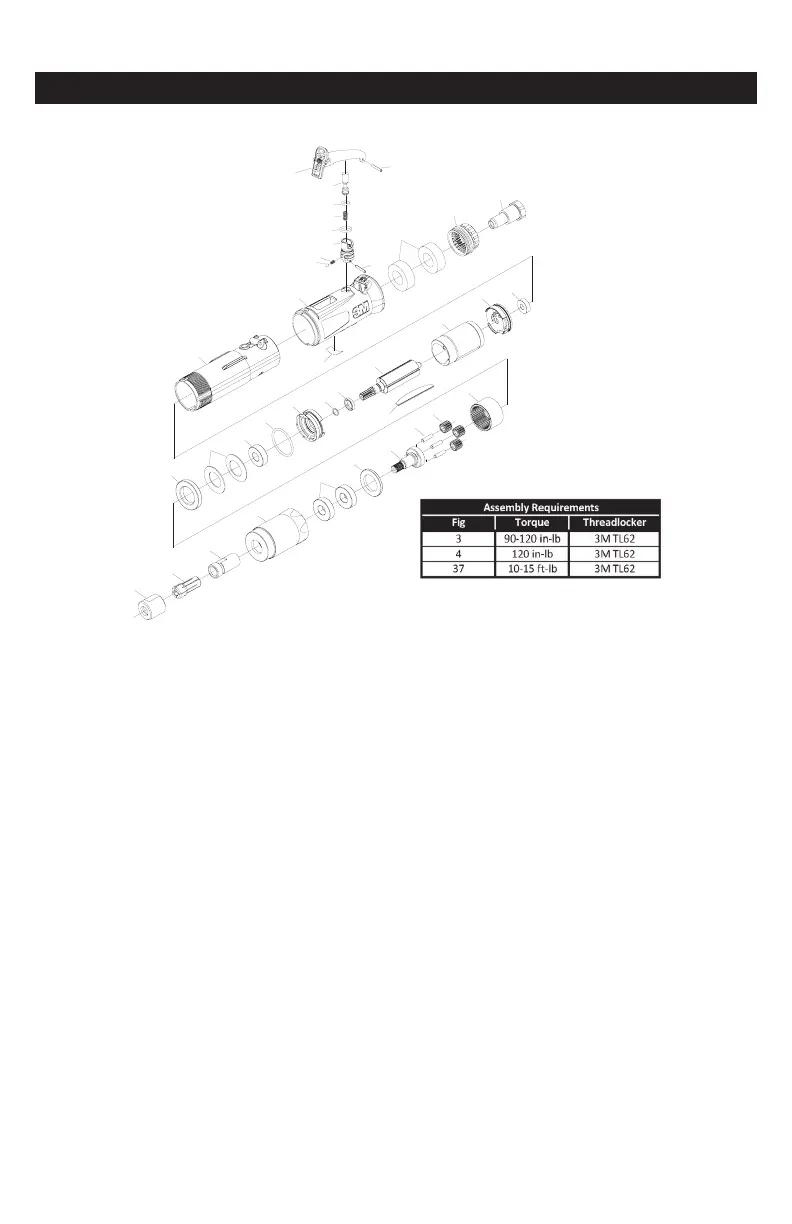

PARTS LIST FOR PN 28332 & 28347, 4,000 MAX RPM DIE GRINDERS (Series C)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
17
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Fig. 3M PN Description
1 06572 Collet Nut
2 06573 Collet (1/8") -
available separately
06575 Collet (1/4") - std w/28332
06574 Collet (3/16") -
available separately
06545 Collet (3/8") -
available separately
06576 Collet (3 mm) -
available separately
06577 Collet (6 mm) - std w/28347
06546 Collet (8 mm) -
available separately
3 06571 Collet Body
4 87163 Gear Case
5 30389 Ball Bearing (2)
6 30397 Spring Steel Washer
7 30378 Gear Carrier
8 30393 Pin (3)
9 30408 Planet Gear (3)
10 30425 RIng Gear
11 30423 Pilot
12 30392 Spring Washer (2)
13 06611 Ball Bearing
14 06621 O-Ring
15 06629 Front End Plate
16 30402 O-Ring
17 30418 Spacer
18 30424 Rotor
Fig. 3M PN Description
19 87137 Vane (0.5 HP)
20 06631 Cylinder
21 06630 Rear End Plate
22 06612 Ball Bearing
23 87123 Housing
24 87121 3M™ Jacket (0.5 HP)
25 28842 Lever Assembly (0.5 HP)
26 06626 Valve Stem
27 30400 O-Ring
28 06614 Spring
29 06620 O-Ring
30 06627 Air Regulator
31 06613 Spring
32 06622 Steel Ball
33 87132 Roll Pin (3/32" x 1")
34 06616 Pin
35 06632 Mufer Material (2 required)
36 06628 Exhaust Deector
37 06618 Inlet Bushing
38 87126 Safety Sticker
Not Shown 06569 Wrench, 9/16" x 3/4", (2)
Not Shown 28828 3M™ Air Tool Lubricant, 1 oz -
available separately
Not Shown 20451 3M™ Air Tool Lubricant, 4 oz -
available separately
Not Shown 20466 3M™ Air Tool Lubricant, Quart -
available separately
Not Shown 20467 3M™ Air Tool Lubricant, Gallon
- available separately
