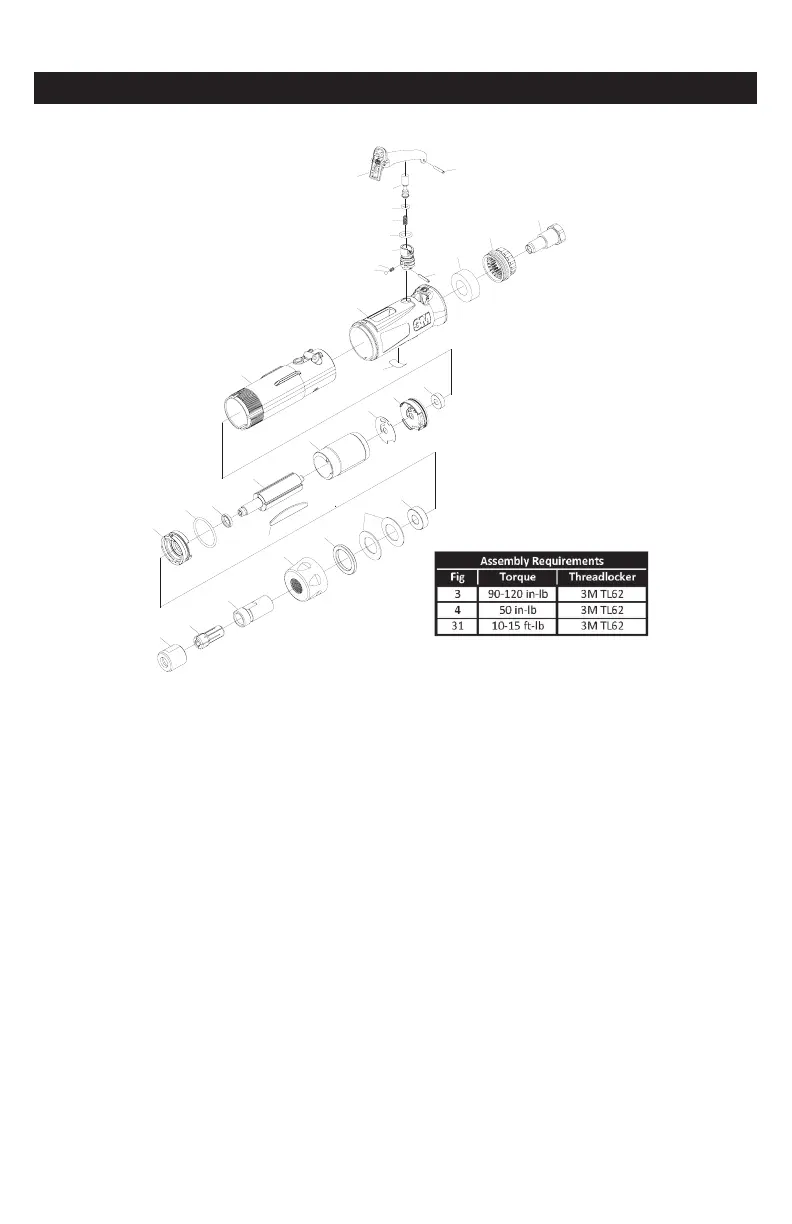

PARTS LIST FOR PN 28330 & 28345, 18,000 MAX RPM DIE GRINDERS (Series C)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Fig. 3M PN Description
1 06572 Collet Nut
2 06573 Collet (1/8") -
available separately
06575 Collet (1/4") - std w/28330
06574 Collet (3/16") -
available separately
06545 Collet (3/8") -
available separately
06576 Collet (3 mm) -
available separately
06577 Collet (6 mm) - std w/28345
06546 Collet (8 mm) -
available separately
3 30371 Collet Body
4 87128 Clamp Nut
5 30419 Disk Spring Spacer
6 30392 Spring Washer (2)
7 06611 Ball Bearing
8 06629 Front End Plate
9 30404 O-Ring
10 30418 Spacer
11 06634 Rotor
12 87137 Vane Set (0.5 HP)
13 06631 Cylinder
14 30373 Motor Restricting Washer
15 06630 Rear End Plate
Fig. 3M PN Description
16 06612 Ball Bearing
17 87123 Housing
18 87121 3M™ Jacket (0.5 HP)
19 28842 Lever Assembly (0.5 HP)
20 06626 Valve Stem
21 30400 O-Ring
22 06614 Spring
23 06620 O-Ring
24 06627 Air Regulator
25 06613 Spring
26 06622 Steel Ball
27 87132 Roll Pin (3/32" x 1")
28 06616 Pin
29 06632 Mufer Material
30 06628 Exhaust Deector
31 06618 Inlet Bushing
32 87126 Safety Sticker
Not Shown 06569 Wrench, 9/16" x 3/4", (2)
Not Shown 28828 3M™ Air Tool Lubricant, 1 oz -
available separately
Not Shown 20451 3M™ Air Tool Lubricant, 4 oz -
available separately
Not Shown 20466 3M™ Air Tool Lubricant, Quart -
available separately
Not Shown 20467 3M™ Air Tool Lubricant, Gallon
- available separately
