Model C960 Headset Intercom SystemReplacement Parts and Service
3M 2001 August
3--6

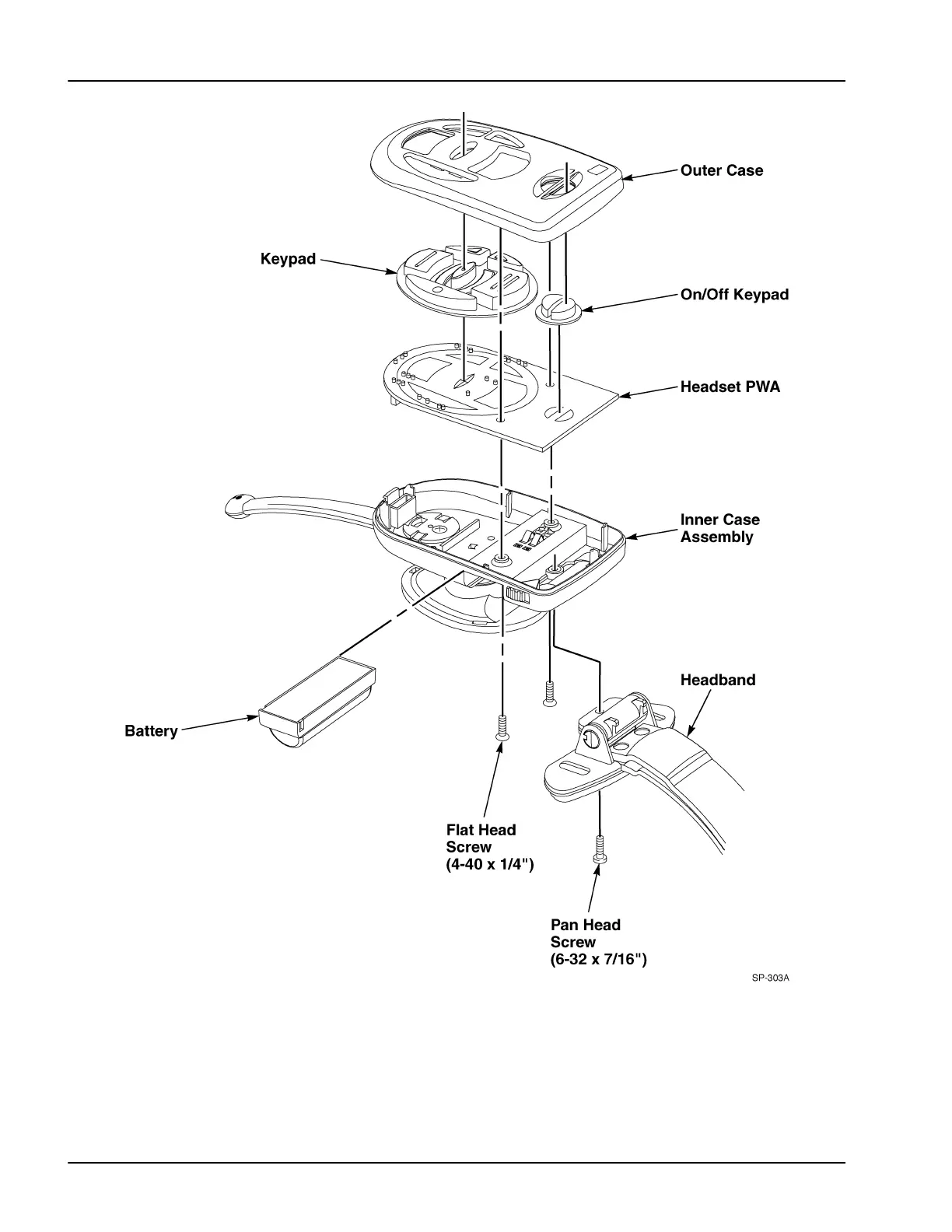

Figure 3-2.
4. Carefully unplug the microphone and speaker
connectors from the headset PWA and set the
PWA aside. See Figure 3-3.
5. Remove the connector terminals from the speaker
connector housing as shown in Figure 3-4.
