3M Touch Systems Technical Note
Product: MicroTouch
™
CT150 Monitor Industrial Bezel – Installation Instructions
Document #33148 3M Touch Systems Inc. Proprietary Information © 2006 3M. All Rights Reserved. Page 2
Bezel Installation Instructions
1. Place a soft, clean towel on a solid, flat work surface to prepare for the bezel installation.
2. If your CT150 monitor has another bezel on it, you must first remove the existing bezel from the
monitor prior to installation of the industrial bezel. If necessary: Place the monitor face down on
the protected work surface. Remove the bezel affixing screws from the back of the unit (screw
locations shown in figure 1 below) and gently separate the bezel from the display.

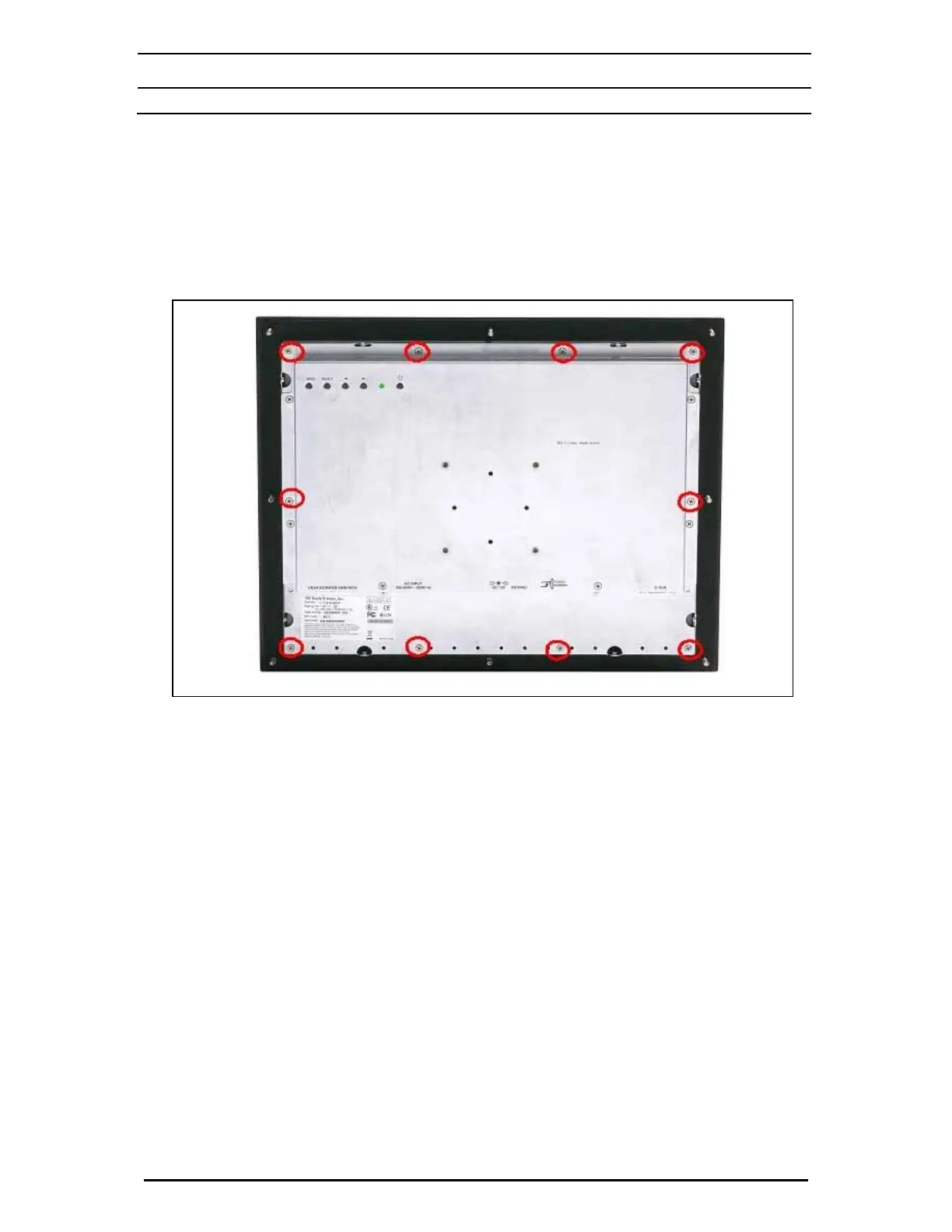

Figure 1 – Bezel screw locations
3. Unpack the industrial mount bezel from its box and plastic bag. You should note that there are
two gaskets mounted to the bezel at the factory. The inner gasket provides the ingress protection
seal between the bezel and touch screen. The outer gasket is installed to provide an ingress
protection seal between the larger diameter of the bezel and enclosure into which the monitor will
be mounted.
