3M PELTOR ComTac 7 - SYSTEM POWER ON PROCEDURE; Operating Temperature; Start Sequence; Fitting the SCU-300

21
4. TO POWER ON THE 3M™ PELTOR™
TACTICAL MODULAR AUDIO SYSTEM
4.1. OPERATING TEMPERATURE
-20°C/-4°F to 50°C/122°F.
4.2. START SEQUENCE
To operate the 3M™ PELTOR™ Tactical Modular Audio
System,makesuretotandpoweronthesystem
components in the correct sequence. For more detailed
instructions, refer to the User Instructions for the system
components.
1. TEP-300, refer to “4.5. To power on the TEP-300”.
2. ComTac™ VII, refer to “4.6. To power on the ComTac™
VII”.
3. SCU-300, refer to “4.7. To power on the SCU-300”.
4. RCU-300, refer to “4.8. To power on the RCU-300”.

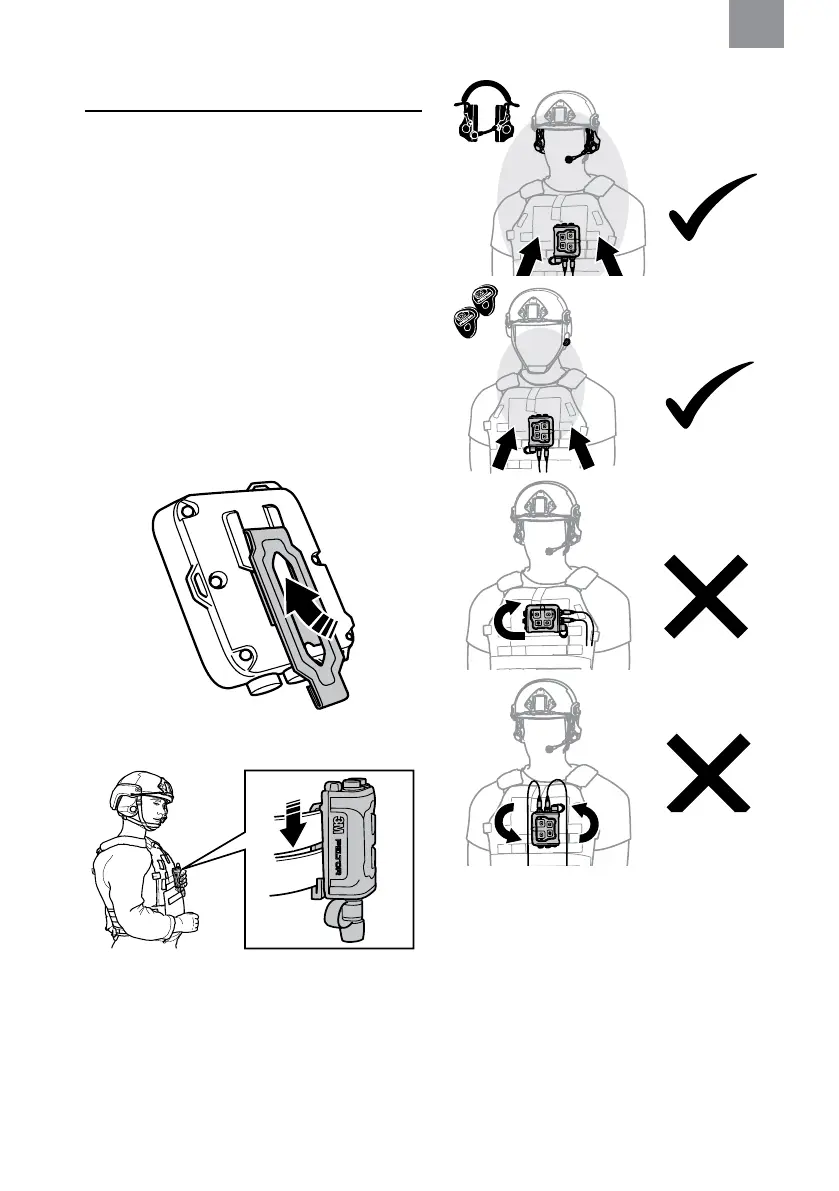

4.3. TO FIT THE SCU-300
1. Slide the metal clip onto the rails on the back of the
SCU-300.
2. Attach the SCU-300 to your protective vest according to
the illustration.
IMPORTANT! Make sure that the SCU-300 is placed in
upright position and as high as possible within the chest area.
EN
