3M Peltor LiteCom MT53H7A4400-EU User Manual

(K)
1) Helmet Manufacturer 2) Helmet Model 3) Attachment 4) Head size: S=small, N=medium, L=large
3M 1465 P3E NL
3M Airstream AH1, AH4, AH7, HT-701,
HT-702, HT-705, HT-707
P3AE NL
3M Mistral M-106, M-107, M-306, M-307 P3AF NL
3M G500 Headgear P3E SNL
3M G2000 P3K SNL
3M G22 P3E NL
3M G3000 P3E SNL
Auboueix Brennus P3F SNL
Auboueix Fondelec P3F SNL
Auboueix Iris P3E NL
Auboueix Iris 2 P3E NL
Sofop Taliaplast Oceanic P3E NL
Sofop Taliaplast Opus P3E NL
Berendsen Safety, Balance HD P3N SNL
Centurion 1125/ARCO plus P3H SNL
Centurion 1100/ARCO type 2 P3H NL
Centurion 1540/ARCO P3A NL
Evert Larsson Robust P3E SNL
Evert Larsson Balance P3E NL
Evert Larsson Balance AC/3M 1465 P3E NL
Kemira Top Cap P3A SNL
LAS LP2002 P3E SNL
LAS LP2006 P3E SNL
MSA Super V-Gard II P3E SNL
MSA V-Gard P3E SNL
Petzl Vertex P3E SNL
Protector Style 300 P3E SNL
Protector Style 600 P3G SNL
Protector Tuffmaster II P3E, P3G NL
Römer Bravo 2 Nomaz P3B SNL
Römer Marcus Top 2 Atlas Nomaz P3B SNL
Römer N2 Atlas Nomaz P3BB SNL
Römer Pro Expo P3E SNL
Römer Pro Nomaz P3E SNL
Römer Top Expo Atlas P3B SNL
Schuberth BEN P3BB SNL
Schuberth BER80/WPC80 P3EA SNL
Schuberth BER S P3E SNL
Schuberth BOP R P3B SNL
Schuberth PIONIER P3B SNL
Schuberth SH 91/WPL 91 P3EB SNL
Schuberth SW1 P3EB NL
UVEX Airwing P3E SNL
Voss Inap 88 P3E SNL
Voss Inap Master P3E NL
Voss Inap Star P3E NL
Voss Inap PCG P3G NL

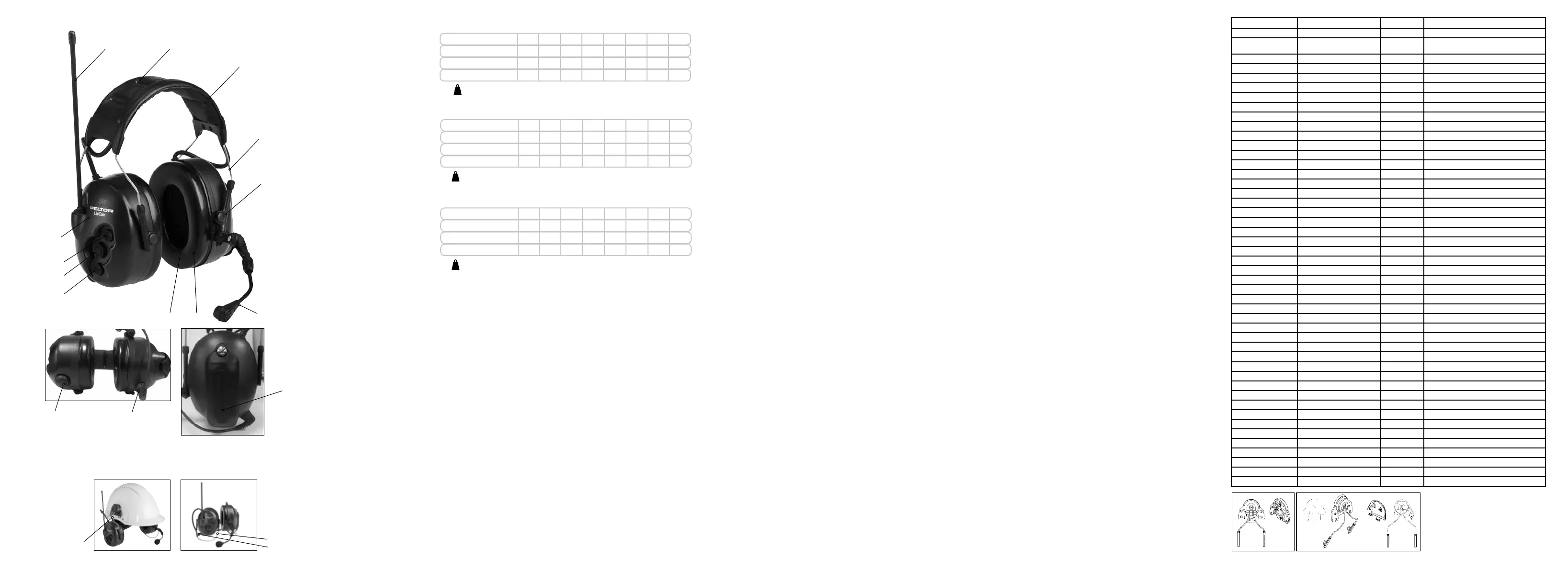

(A) Headband MT53H7A4400-EU
(A:1)
(A:4)
(A:5)(A:6)
(A:8)
(A:10)
(A:7)
(A:9)
(A:2)
(A:3)
(A:12)
(A:11)
(A:15)
(A:14)
(A:13)
Technical data
Frequency range: 446 MHz (PMR)
Operation mode: Half duplex
Channels: max 8 (PMR)
Channel raster: 6,25
Channel separation: 12,5 kHz
Modulation: FM: 2,5 kHz
Microphone type: Electret (MT53)
Receiver sensibility: Typical-122 dBm
Selective squelch: CTCSS (38 channels)
Output power: 150 mW
Range: Up to 3 km depending on conditions
Power supply: 2 AA alkaline (3,0V) or NiMH (2,4V)
Power consumption: Stand-by: <80 mA
Receiving: <85 mA
Transmitting: <210 mA
Operating time: 20 hrs
Operating temperature: -20°C to +55°C
Storage temperature: -40°C to +55°C
(B) Helmet attachment
MT53H7P3E4400-EU
(C) Neckband
MT53H7B4400-EU
(B:1)
(C:1)
(C:2)
(J:1)
(J:2)
MT53H7A4400-EU
SNR=32dB H=33 dB M=30 dB L=23 dB
5) 418 g
MT53H7P3E4400-EU
SNR=33 dB H=34 dB M=30 dB L=23 dB
5) 394 g
(J:3)
5) 384 g
MT53H7B4400-EU
SNR=32 dB H=34 dB M=30 dB L=22 dB
The product is in conformity with the provisions set out in the following directives.
Thereby it fulls the requirements for CE marking.
• PPE directive 89/686/EEC
• R&TTE-directive 1999/5/EC
• ROHS-directive 2011/65/EU
The product is tested and approved in accordance with following standards:
EN 352-1:2002 / EN 352-3:2002, EN 62479:2010, EN 300 296-2 V1.3.1, EN 301 489-1 V1.9.2,
EN 301 489-5 V1.3.1, EN 60950-1:2006 +A11:2009 +A1:2010 +A11:2009 +A12:2011 +AC:2011, EN 50581:2012
The product has been examined by:
• Combitech AB, Änkhusgatan 9, Box 1017, SE-551 11 Jönköping, Sweden. Notied body #2279
• BACL, Bay Area Compliance Labs Corp (Shenzhen), 6/F,
the 3:rd Phase of WanLi Ind Build ShiHua Road,
FuTian Free Trade Zone, Guangdong, Shenzhen, China, Notied body #0313
(M:1)
Z3G Z3KZ3E
(L)
Frequency (Hz)
1)
63 125 250 500 1000 2000 4000 8000
Mean attenuation (dB)
2)
17.9 18.1 24.3 32.1 36.2 34.7 39.2 36.0
Std deviation (dB)
3)
2.5 2.4 1.7 2.2 2.6 3.6 3.3 2.4
Assumed Protection Value (dB)
4)
15.4 15.6 22.6 29.9 33.6 31.1 35.9 33.6
Frequency (Hz)
1)
63 125 250 500 1000 2000 4000 8000
Mean attenuation (dB)
2)
17.5 18.4 24.5 31.9 37.1 35.2 39.2 36.0
Std deviation (dB)
3)
3.2 2.8 1.9 3.1 3.0 2.6 2.9 2.8
Assumed Protection Value (dB)
4)
14.3 15.6 22.6 28.8 34.1 32.7 36.3 33.2
Frequency (Hz)
1)
63 125 250 500 1000 2000 4000 8000
Mean attenuation (dB)
2)
18.6 16.9 23.2 32.1 35.2 35.6 38.3 37.4
Std deviation (dB)
3)
4.0 3.0 2.4 2.5 2.1 2.9 3.7 3.2
Assumed Protection Value (dB)
4)
14.5 13.9 20.8 29.5 33.1 32.6 34.6 34.3
(M:2)
(M:3)
