3M X20 Brochure & Specs

3M
™
Digital Projector X20 Specifications
and Accessories
Optical
Brightness: 2000 lumens*
Imager set: 0.063", P-Si TFT Panel
Resolution (native): XGA (1024 x 768 pixels)
Aspect ratio: 4:3 native, 16:9 supported
Colors: 1 6.7 million
Screen size (range): 30-300"
Zoom/Focus: Manual
Zoom ratio: 1 :2:1
Projection lens: F (focal length): F 1.8-1.9 (f=16.4 - 19.7mm)
Optional lenses: No
Contrast ratio: 500:1
Lamp: 160W UHB
Lamp Life: 2000 hours (normal)
Up to 3000 hours (whisper)
*indicates maximum lumens rating
Electrical
Video compatibility: NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, SECAM
Component signal: 480i, 480p, 525i, 525p, 625i,
576i, 720p, 750p, 1080i, 1125i
(through computer input ports)
Automatic Digital
Keystone correction: Fixed 6:1 upward shift;
Vertical +/- 30°**
Audio: 1 x 1W
Noise level: Normal 36dB, Whisper 30dB
Compatible resolution: VGA, SVGA, XGA, SXGA, UXGA
Horizontal scan: 31.5-106kHZ
Vertical scan: 56-120Hz
Power consumption: 250W
Power supply: Universal: 100-120V/220-240V, 50/60Hz
Regulatory approvals: UL, cUL, FCC Part 15 Class B,
CE, EN60950, WEEE
Operating temperature: 41°-95°F (5°-35°C)
Storage temperature: -4°-140°F (-20°-60°C)
Altitude: Sea level to 6000 ft. (1,829m)
**The degrees specified are based on XGA resolution at 60Hz input
and zoom lens position is wide.
Size
Dimensions (W x H x D): 10.8 x 2.3 x 8.1" (274 x 59 x 205mm)
Weight: 1.784Kg
*Dimensions do not include elevator feet
(a) Screen Size
Diagnonal
Image Size 4:3
(b) Projection Distance (c) Projection height
Minimum (m) Maximum (m) Down Up
inch
m
m inch m inch m inch m inch
30 0.8 0.8 30 0.9 36 7 3 39 15
40 1.0 1.0 40 1.2 48 9 3 52 21
50 1.3 1.3 50 1.5 61 11 4 65 26
60 1.5 1.5 61 1.9 73 13 5 78 31
70 1.8 1.8 71 2.2 85 15 6 91 36
80 2.0 2.1 81 2.5 97 17 7 105 41
90 2.3 2.3 91 2.8 110 20 8 118 46
100 2.5 2.6 102 3.1 122 22 9 131 51
120 3.0 3.1 122 3.7 147 26 10 157 62
150 3.8 3.9 153 4.7 183 33 13 196 77
200 5.1 5.2 204 6.2 245 44 17 261 103
250 6.4 6.5 255 7.8 306 54 21 327 129
300 7.6 7.8 306 9.3 368 65 26 392 154
Warranties
Projector: 3 Years or 2500 Hours maximum
Lamp: 90 Days or 180 Hours

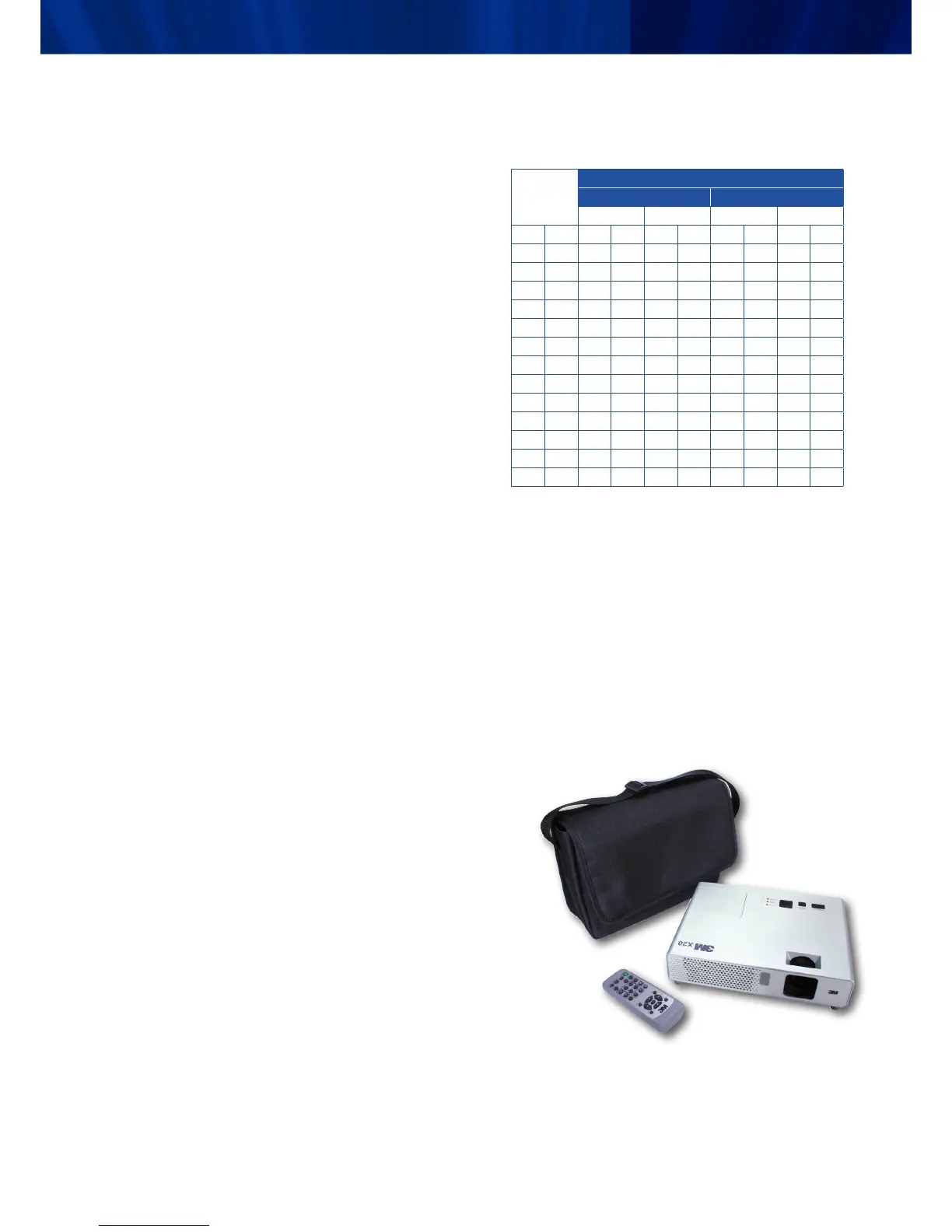

Accessories Included
• Power cords (x3 - US, UK, Euro)
• RGB computer cable
• RCA/Stereo mini Audio Adapter
• Remote control with 2 AA batteries
• Multi-language User’s Manual
• Multi-language Operator’s Guide CD
• Lens cap
• Soft Carry Case
Optional Accessories
• Replacement Lamp Kit (LKX20) 78-6969-9903-2
• Universal Ceiling Mount 78-6969-9874-5
3
3M United Kingdom PLC
Tel: +44 (0) 1234 229695
Email: 3Mpresentations@mmm.com
www.3M.co.uk/meetings
3M Ireland
Tel: +353 (0)1 2803 555
Email: 3Mpresentations@mmm.com
www.3M.ie/meetings
Please recycle. Printed in the United Kingdom.
© 3M 2007. All rights reserved.
For help and advice on proper disposal of mercury lamps, and other
WEEE matters, contact us on weee.uk@mmm.com or 01344 858 880
X20

3M X20 Specifications

General

Number of colors	16.78 million colors
Vertical scan range	56 - 120 Hz
Horizontal scan range	31.5 - 106 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-30 - 30 °
Audio input	1
Aspect ratio	4:3, 16:9
Dimensions (WxDxH)	274 x 205 x 59 mm
Power requirements	100 - 120 V, 220 - 240 V, 50/60 Hz
Focus	Manual
Focal length range	16.4 - 19.7 mm
Lamp type	UHB
Lamp power	160 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, NTSC 4.43, PAL, SECAM
RMS rated power	1 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	36 dB
Certification	UL, cUL, FCC Part 15 Class B, CE, EN60950, WEEE
Power consumption (typical)	250 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	1784 g
