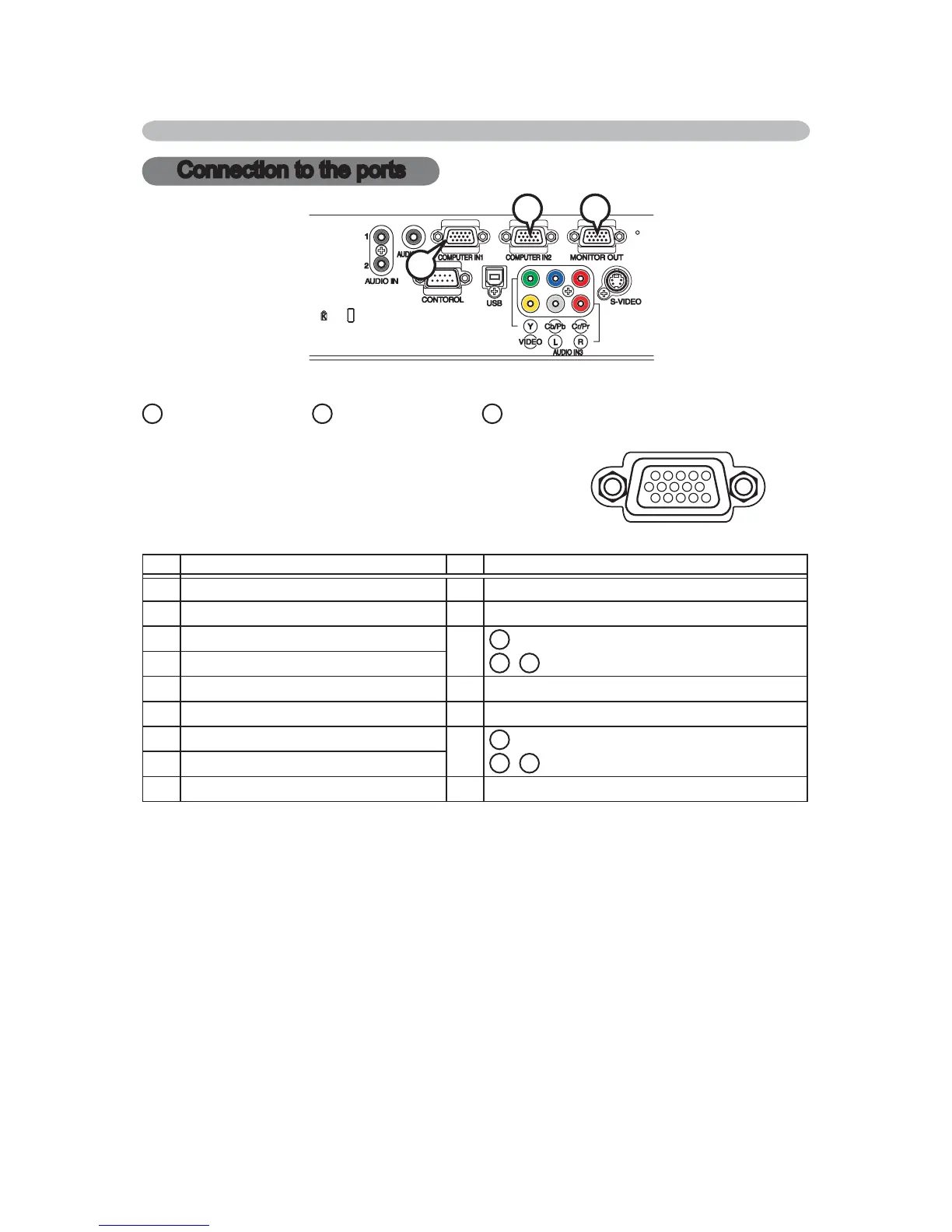

Connection to the ports
A
COMPUTER IN1,
B
COMPUTER IN2,
C
MONITOR OUT
D-sub 15pin mini shrink jack
9LGHRVLJQDO5*%VHSDUDWH$QDORJ9SSȍ
terminated (positive)
• H/V. sync. Signal: TTL level (positive/negative)
• Composite sync. Signal: TTL level
Pin Signal Pin Signal
1
Video Red 10 Ground
2
Video Green 11 (No connection)
3
Video Blue
12
A
: SDA (DDC data)
B
,
C
: (No connection)
4
(No connection)
5
Ground 13 H. sync / Composite sync.
6
Ground Red 14 V. sync.
7
Ground Green
15
A
: SCL (DDC clock)
B
,
C
: (No connection)
8
Ground Blue
9
(No connection) - -
