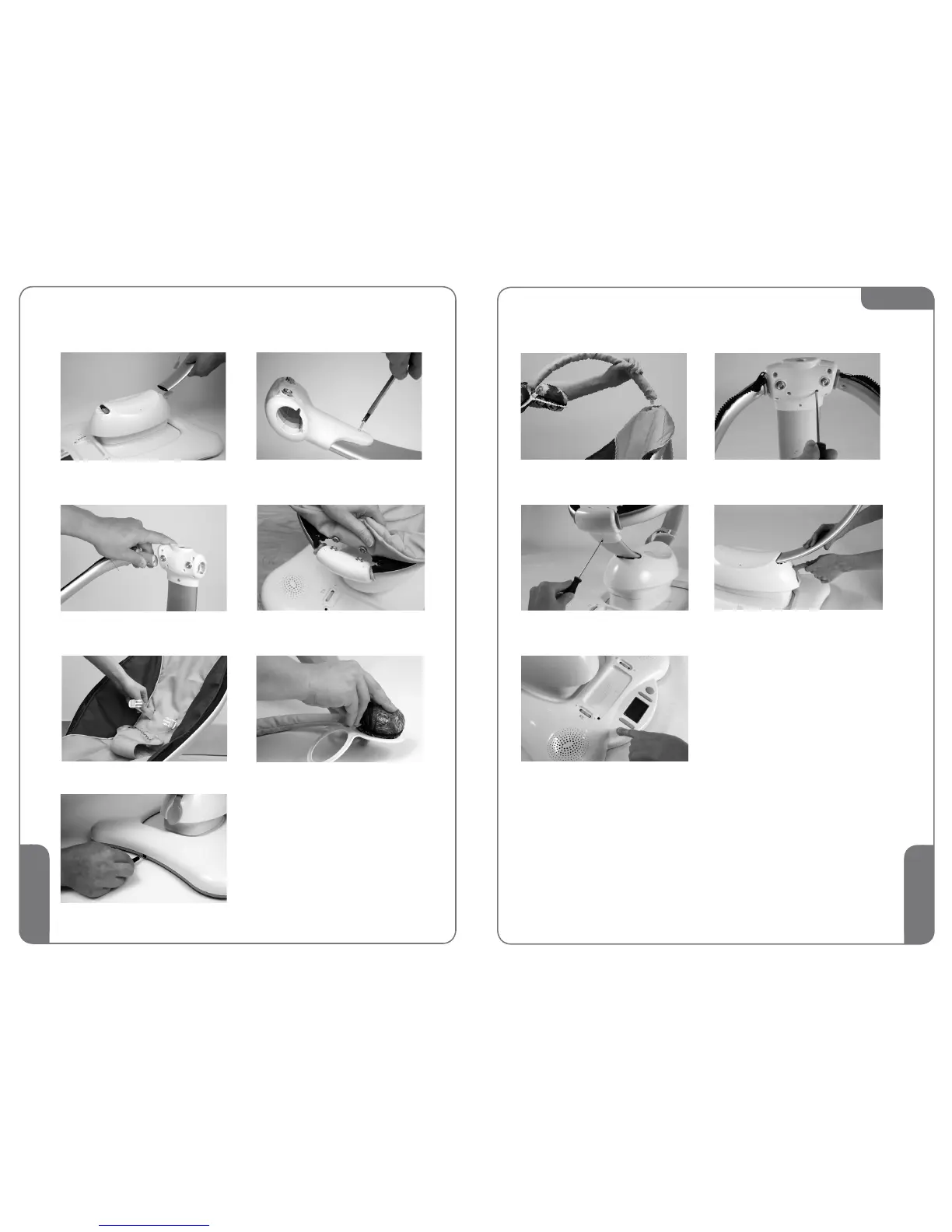

Assembly
Setup
Step 1: Unlock Seat Recline and slide Center Support Tube through the
back of Base. Install Front End Cap until it clicks and tighten screw.
Step 3: Thread Child Restraint Harness through back of fabric.
Install toy bar and plug-in.
Step 2: Install Seat Side Rails until they “click” and can no longer be
removed. Zip in Fabric and Snap Ends.
*Discard all plastic bags
English
Assembly by an adult requires a Phillips head screwdriver.
Disassembly
Chapter 3: Disassembly
Step 1 Remove Toy Bar and
Fabric.
Step 5 Unlock Seat Recline and
slide Center Support Tube out
of Base.
Step 2 To remove side rails depress
upper and lower ball locks.
Step 6 To fit back in box press
and hold the Power button for 5
seconds.
Step 3 Unscrew Front End Cap
and depress ball lock to remove.
Disassembly by an adult requires a Phillips head screwdriver.
Having trouble with the ball locks?
Hint: Use the end of the MP3 cable or a narrow screwdriver to depress
the lock, remove rail or end cap as far as you can. Withdraw the
tool, then remove part entirely.
