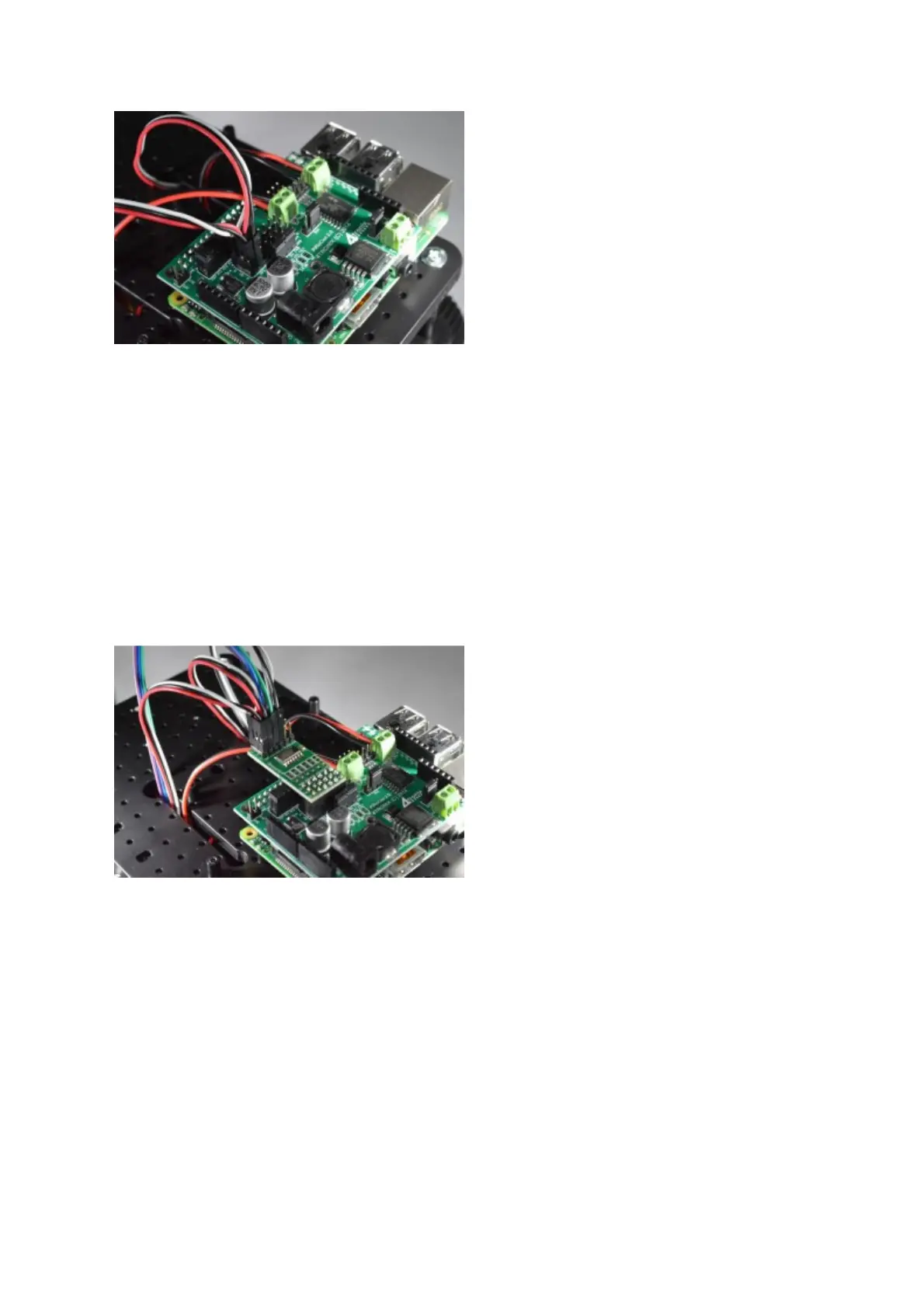

Connect to the Pirocon2 (or the iBoost64 as below)

•

Left sensor to Pin 7 (marked x07 or #04)

•

Right sensor to Pin 11 (marked x11 or #17)

The wire colours from the obstacle sensor are:

•

Red: 5V

•

Black: Gnd

•

White or Yellow: Signal

Make sure you connect them to the correct pins on the Pirocon or iBoost64
