3. Mounting the Line Sensors

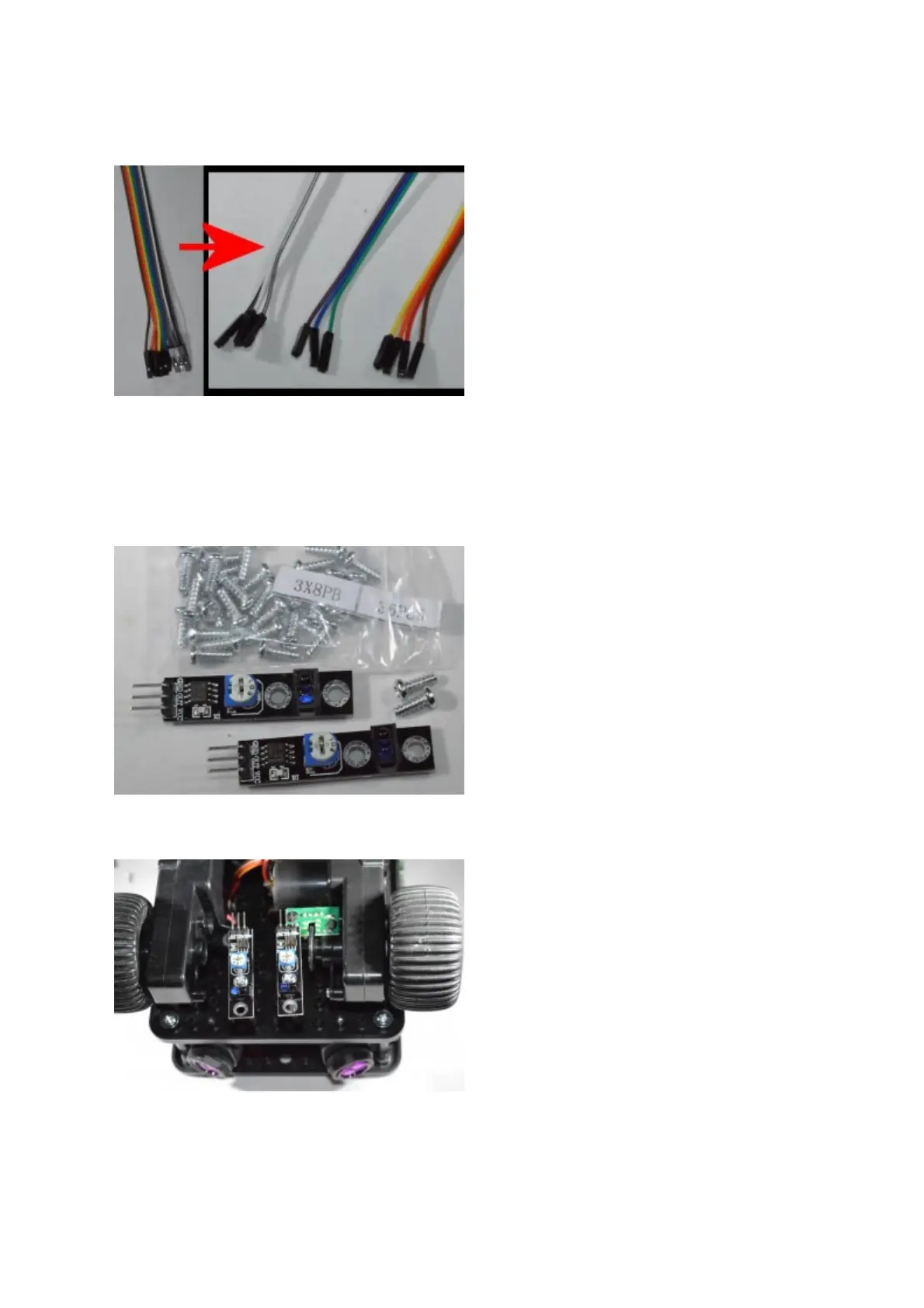

First, take the 30cm female-female jumper strip of 10 wires and split it into three strips:
•
Brown, Red, Orange, Yellow (this is for the Ultrasonic Sensor)
•
Green, Blue, Purple (this is for the Left Line Sensor)
•
Grey, White, Black (this is for the Right Line Sensor)
Next, prepare the two Line Sensors and 2 of the 3x8PB screws as shown
Screw the line sensors in position as shown, using the screwhole in the middle of the circuit
board
