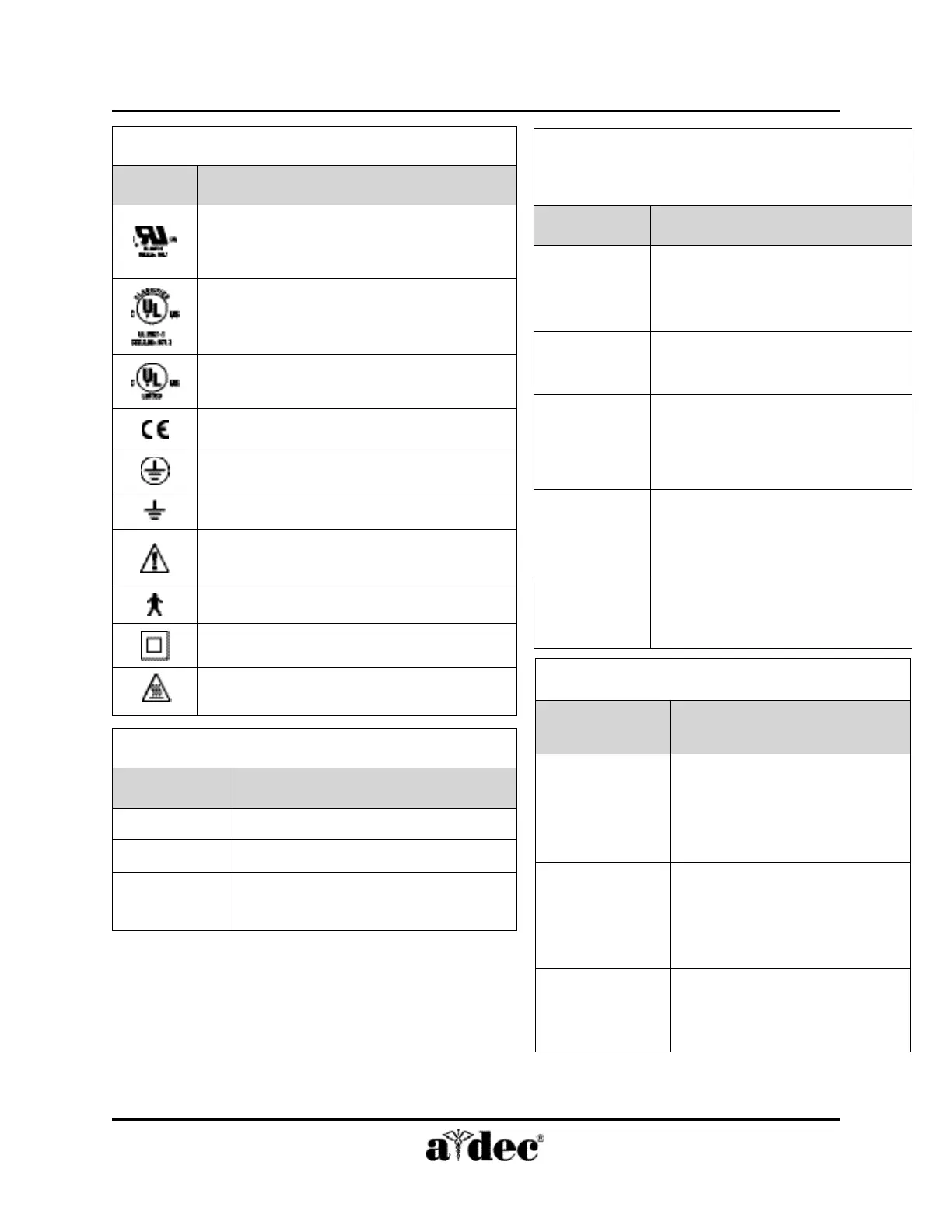

Identification of Symbols
SYMBOL DESCRIPTION
Recognized by Underwriters Laboratories Inc. with respect to
electric shock, fire and mechanical hazards only in
accordance with UL 60601-1 (2601-1) and under mutual recog-
nition agreement with CAN/CSA C22.2, No. 601.1.
Classified by Underwriters Laboratories Inc. with respect to
electric shock, fire and mechanical hazards only in
accordance with UL 60601-1 (2601-1) and under mutual recog-
nition agreement with CAN/CSA C22.2, No. 601.1.
UL listed to UL 61010A-1, BS
EN 61010-2-010 and Canadian (CAN/CSA C22.2, No. 1010.1-92)
safety standards.
Conforms to applicable European Directives (refer to
Declaration of Conformity).
Protective earth (ground).
Functional earth (ground).
Attention, consult accompanying documents. No user service-
able parts. Attention, line voltage. Only licensed electrician
should remove cover.
Type B applied part.
Class II equipment.
Caution: Metal surfaces can be hot during and following the
dry cycle.
Classification of Equipment (EN-
60601-1)
TYPES/MODE CLASSIFICATION
Types of shock
protection
CLASS I EQUIPMENT: Dental chairs, dental lights,
and power supplies
CLASS II EQUIPMENT: Chair, wall, and
cart-mounted delivery systems
Degree of
shock
protection
TYPE B APPLIED PART: Delivery
systems only
Degree of
protection
against water
ingress
ORDINARY EQUIPMENT: All products
Mode of
operation
CONTINUOUS OPERATION: All models except
dental chairs
CONTINUOUS OPERATION WITH INTERMITTENT
LOADING: Dental chairs - 5% duty cycle
Flammable
gasses:
Not suitable for use in the presence of a
flammable anesthetic mixture with air, oxygen, or
nitrous oxide, where such gasses may
accumulate in concentration (closed space).
Electrical Rating
TYPE SPECIFICATION
Volts:
100/110-120/220-240 VAC
Frequency:
50-60 Hz
Current:
As configured and specified in equipment manual
(products labeled 15A or greater require dedicated
circuit, identified in distribution panel).
Environmental Specifications
TEMPERATURE/
HUMIDITY
SPECIFICATION
Storage/
Transportation
Temperature: -40C to 70×C
(-40×F to 158×F)
Relative humidity: 80% for up to 31×C,
decreasing linearly to
50% at 40×C.
Operating
Temperature: 10×C to 40×C
(40×F to 104×F)
Relative humidity: 80% for up to 31×C,
decreasing linearly to
50% at 40×C.
Indoor Use:
Altitude up to 2,000M (6,563 ft.),
installation category II, pollution degree 2.
(UL 61010A-1 and CAN/CSA C22.2,
No. 1010.1-92 only)
