16
IOM S-050

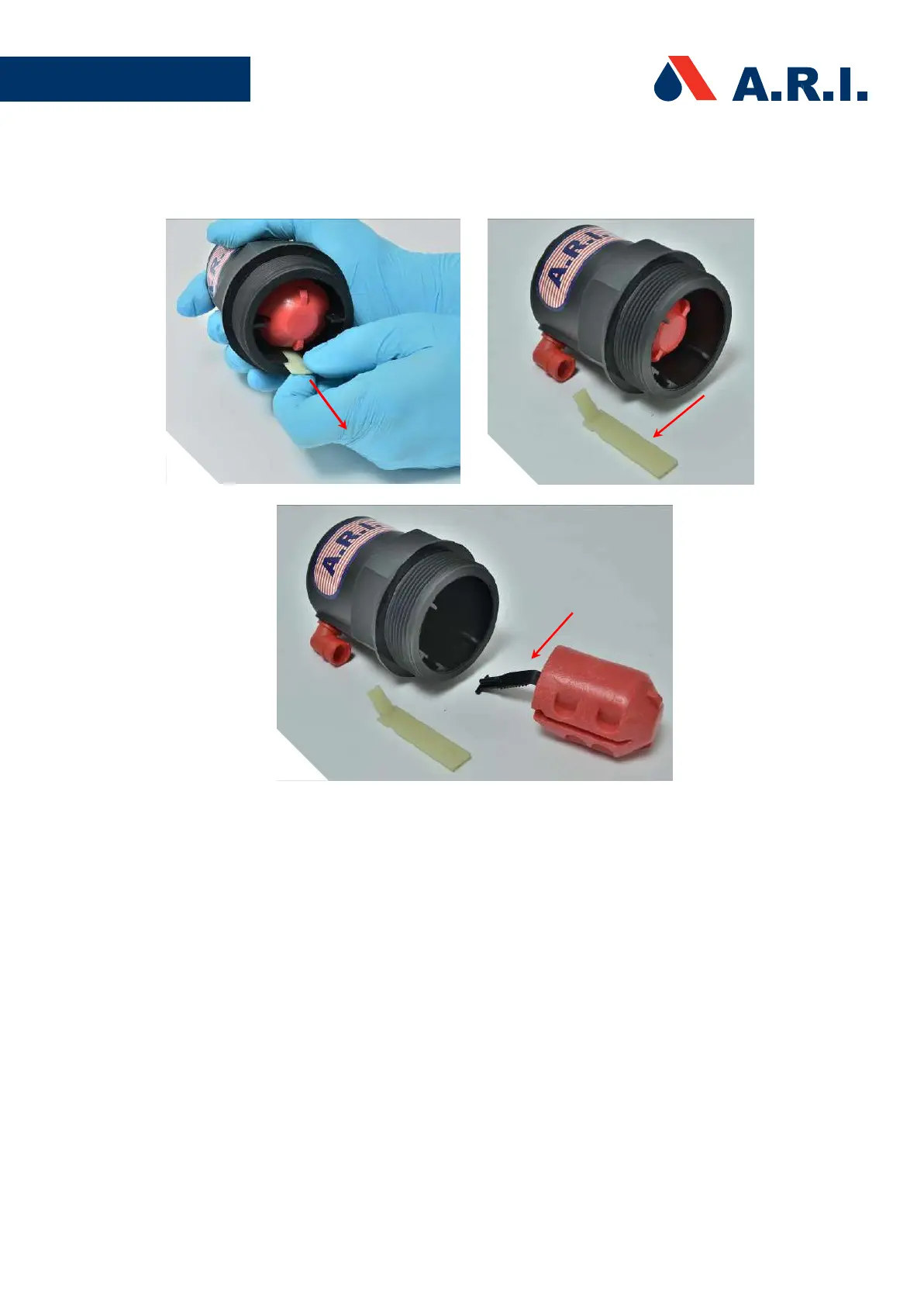

5.3.4. Disassembly of the Float
• Hold the Body, turn it to the side [1] and remove the Clamping Stem [2] and the Float [3] (together with the
Rolling Seal
3
1
2
