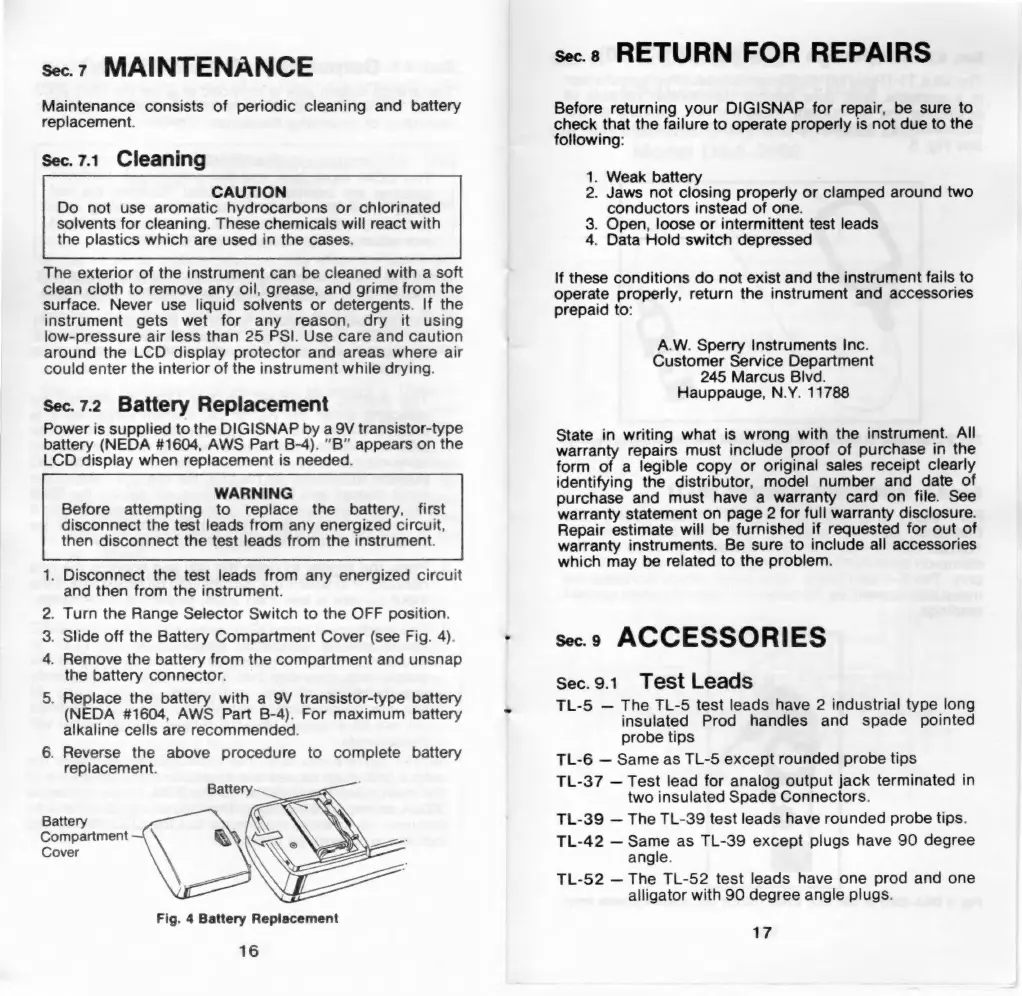

sec.7
MAINTENANCE
Maintenance
consists
of
periodic
cleaning
and
battery
replacement.
Sec.
7.1
Cleaning
CAUTION
Do
not
use
aromatic
hydrocarbons
or
chlorinated
solvents
for
cleaning.
These
chemicals
will
react
with
the
plastics
which
are
used
in
the
cases.
The
exterior
of
the
instrument
can
be
cleaned
with
a
soft
clean
cloth
to
remove
any
oil,
grease,
and
grime
from
the
surface.
Never
use
liquid
solvents
or
detergents.
If
the
instrument
gets
wet
for
any
reason,
dry
it
using
low-pressure
air
less
than
25
PSI.
Use
care
and
caution
around
the
LCD
display
protector
and
areas
where
air
could
enter
the
interior
of
the
instrument
while
drying.
Sec.7.2
Battery
Replacement
Power
is
supplied
to
the
DIGISNAP
by
a
9V
transistor-type
battery
(NEDA
#1604,
AWS
Part
B-4).
"B”
appears
on
the
LCD
display
when
replacement
is
needed.
WARNING
Before
attempting
to
replace
the
battery,
first
disconnect
the
test
leads
from
any
energized
circuit,
then
disconnect
the
test
leads
from
the
instrument.
1.
Disconnect
the
test
leads
from
any
energized
circuit
and
then
from
the
instrument.
2.
Turn
the
Range
Selector
Switch
to
the
OFF
position.
3.
Slide
off
the
Battery
Compartment
Cover
(see
Fig.
4).
4.
Remove
the
battery
from
the
compartment
and
unsnap
the
battery
connector.
5.
Replace
the
battery
with
a
9V
transistor-type
battery
(NEDA
#1604,
AWS
Part
B-4).
For
maximum
battery
alkaline
cells
are
recommended.
6.
Reverse
the
above
procedure
to
complete
battery
replacement.
Battery
Compartment
Cover
Fig.
4
Battery
Repiacement
16
sec.8
RETURN
FOR
REPAIRS
Before
returning
your
DIGISNAP
for
repair,
be
sure
to
check
that
the
failure
to
operate
properly
is
not
due
to
the
following:
.
Weak
battery
.
Jaws
not
closing
properly
or
clamped
around
two
conductors
instead
of
one.
.
Open,
loose
or
intermittent
test
leads
.
Data
Hold
switch
depressed
fo
NH
If
these
conditions
do
not
exist
and
the
instrument
fails
to
operate
properly,
return
the
instrument
and
accessories
prepaid
to:
A.W.
Sperry
Instruments
Inc.
Customer
Service
Department
245
Marcus
Blvd.
Hauppauge,
N.Y.
11788
State
in
writing
what
is
wrong
with
the
instrument.
All
warranty
repairs
must
include
proof
of
purchase
in
the
form
of
a
legible
copy
or
original
sales
receipt
clearly
identifying
the
distributor,
model
number
and
date
of
purchase
and
must
have
a
warranty
card
on
file.
See
warranty
statement
on
page
2
for
full
warranty
disclosure.
Repair
estimate
will
be
furnished
if
requested
for
out
of
warranty
instruments.
Be
sure
to
include
all
accessories
which
may
be
related
to
the
problem.
sec.9
ACCESSORIES
Sec.9.1
Test
Leads
TL-5
The
TL-5
test
leads
have
2
industrial
type
long
insulated
Prod
handles
and
spade
pointed
probe
tips
TL-6
Same
as
TL-5
except
rounded
probe
tips
TL-37
Test
lead
for
analog
output
jack
terminated
in
two
insulated
Spade
Connectors.
TL-39
The
TL-39
test
leads
have
rounded
probe
tips.
TL-42
Same
as
TL-39
except
plugs
have
90
degree
angle.
TL-52
The
TL-52
test
leads
have
one
prod
and
one
alligator
with
90
degree
angle
plugs.
17
