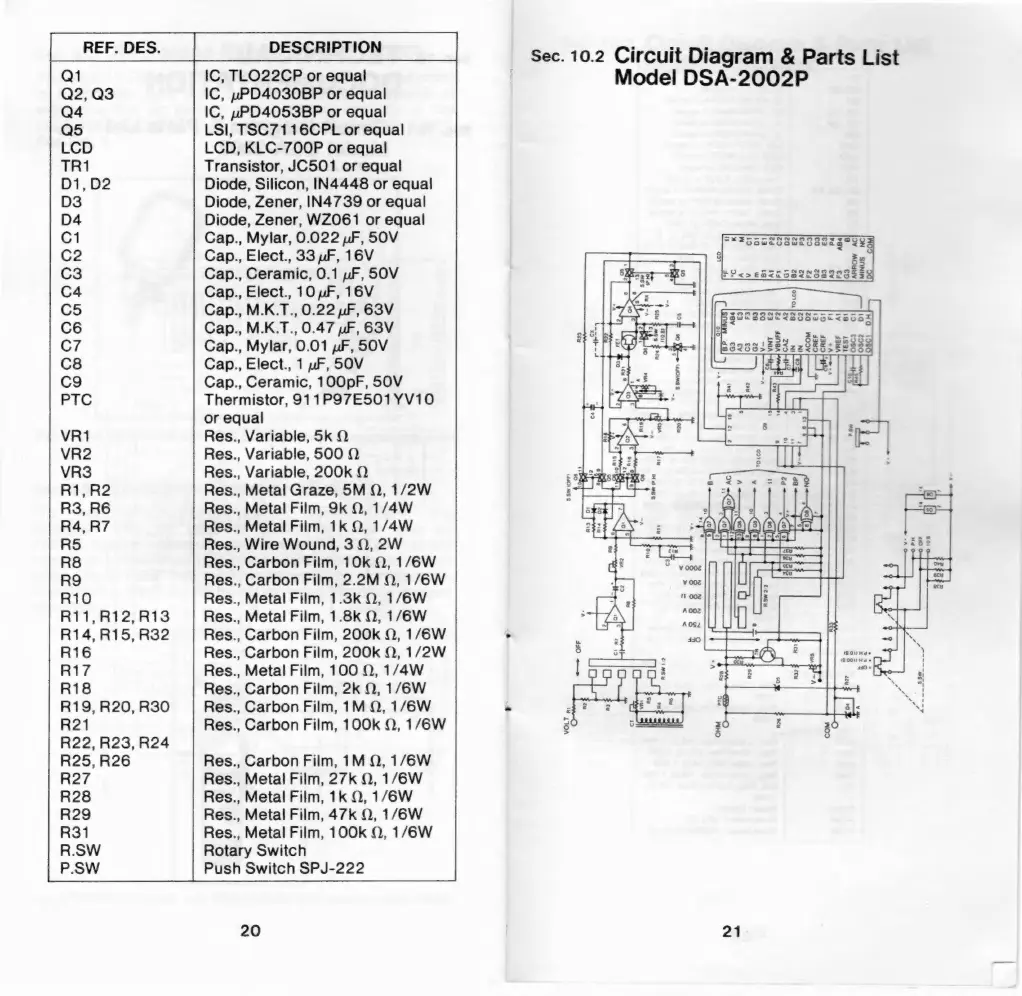

REF.DES.
|
DESCRIPTION
Sec.
10.2
Circuit
Diagram
&
Parts
List
IC,
TLO22CP
;
,
IC.
uPD4030BP
or
equal
Model
DSA-2002P
IC, uwPD4053BP or equal
LSI, TSC7116CPL or equal
LCD, KLC-700P or equal
Transistor, JC501 or equal
Diode, Silicon, IN4448 or equal
Diode, Zener, IN4739 or equal
Diode, Zener, WZ061 or equal
Cap., Mylar, 0.022 uF, 50V
Cap., Elect., 33 uF, 16V
Cap., Ceramic, 0.1 uF, 50V
Cap., Elect., 10 uF, 16V
Cap., M.K.T., 0.22 uF, 63V
Cap., M.K.T., 0.47 uF, 63V
Cap., Mylar, 0.01 uF, 50V
Cap., Elect., 1 uF, 50V
Cap., Ceramic, 100pF, 50V
Thermistor, 911P97E501YV10
or equal
Res., Variable, 5k 0
Res., Variable, 500 0
Res., Variable, 200k 0
Res., Metal Graze, 5M ©, 1/2W
Res., Metal Film, 9k 0, 1/4W
Res., Metal Film, 1k 0, 1/4W
Res., Wire Wound, 3 0, 2W
Res., Carbon Film, 10k 0, 1/6W
Res., Carbon Film, 2.2M ©, 1/6W
Res., Metal Film, 1.3k 0, 1/6W
R11,R12,R13 Res., Metal Film, 1.8k ©, 1/6W
R14, R15, R382 Res., Carbon Film, 200k ©, 1/6W >
R16 Res., Carbon Film, 200k 0, 1/2W
R17 Res., Metal Film, 100 0, 1/4W
R18 Res., Carbon Film, 2k 0, 1/6W
R19, R20, R30 Res., Carbon Film, 1M ©, 1/6W é
R21 Res., Carbon Film, 100k 0, 1/6W
R22, R23, R24
Res., Carbon Film, 1M 0, 1/6W
Res., Metal Film, 27k 0, 1/6W
Res., Metal Film, 1k 0, 1/6W
Res., Metal Film, 47k 0, 1/6W
Res., Metal Film, 100k ©, 1/6W
Rotary Switch
Push Switch SPJ-222
20 21
