A.W. Sperry Instruments AWS DIGISNAP DSA-2002 User Manual

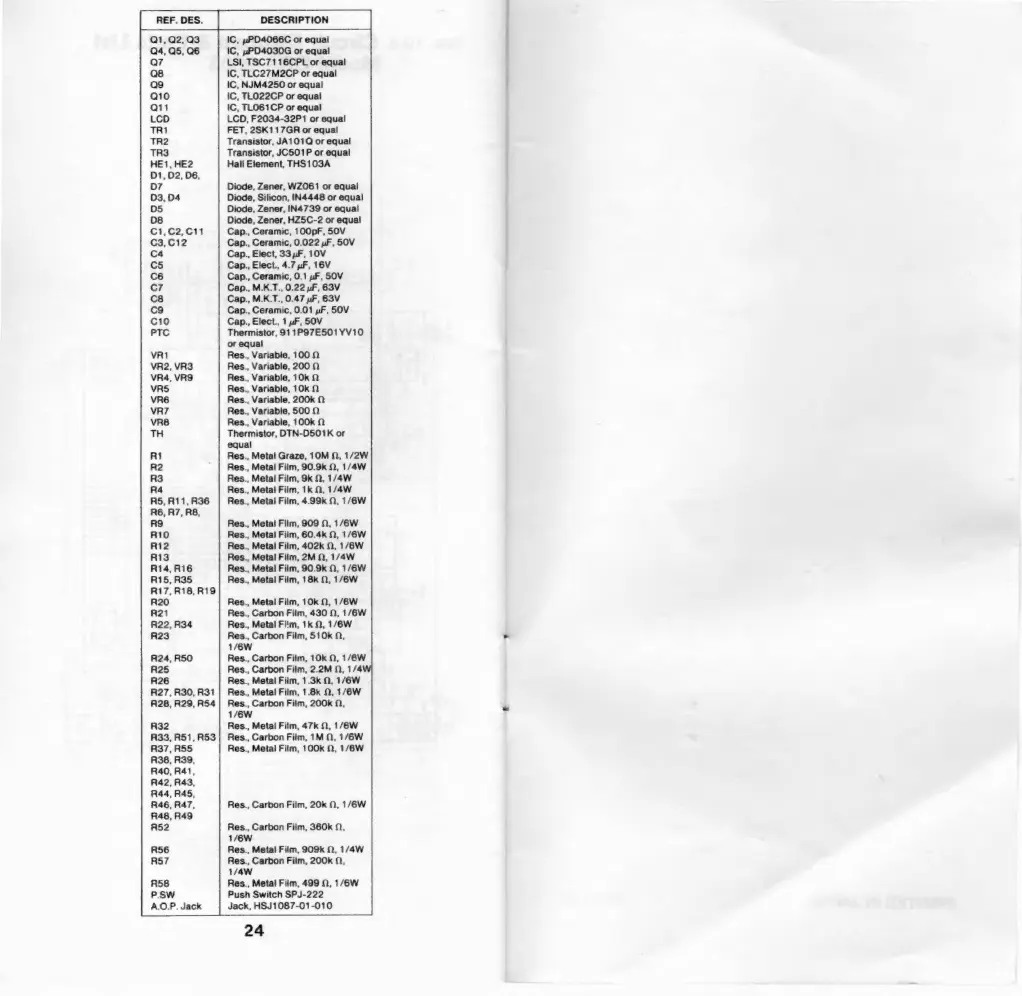

| REF.DES. | DESCRIPTION
Q1,Q2,Q3 IC, pPD4066C or equal
Q4, Q5, Q6 IC, pPD4030G or equal
LSI, TSC7116CPL or equal
IC, TLC27M2CP or equal
IC, NJM4250 or equal
IC, TLO22CP or equal
IC, TLO61CP or equal
LCD, F2034-32P1 or equal
FET, 2SK117GR or equal
Transistor, JA101Q or equal
Transistor, JC501P or equal
Hall Element, THS103A
Diode, Zener, WZ061 or equal
Diode, Silicon, IN4448 or equal
Diode, Zener, IN4739 or equal
Diode, Zener, HZ5C-2 or equal
C1,C2,C11 Cap., Ceramic, 100pF, 50V
C3,C12 Cap., Ceramic, 0.022 uF, SOV
C4 Cap., Elect, 33 uF, 10V
cs Cap., Elect., 4.7 uF, 16V
cé6 Cap., Ceramic, 0.1 uF, 50V
C7 Cap., M.K.T., 0.22 uF, 63V
cs Cap., M.K.T., 0.47 uF, 63V
cs Cap., Ceramic, 0.01 pF, 50V
c10 Cap., Elect., 1 uF, 50V
PTC Thermistor, 911P97E501YV10
or equal
VR1 Res., Variable, 100 2
VR2, VR3 Res., Variable, 200 2
VR4, VR9 Res., Variable, 10k 2
VRS Res., Variable, 10k 2
VRE Res., Variable, 200k 2
VR7 Res., Variable, 500 0
VR8 Res., Variable, 100k 2
TH Thermistor, DTN-D501K or
equal
R1 Res., Metal Graze, 10M , 1/2W
R2 Res., Metal Film, 90.9k 2, 1/4W
R3 Res., Metal Film, 9k 2, 1/4W
R4 Res., Metal Film, 1k 2, 1/4W
R5, R11, R36 Res., Metal Film, 4.99k 0, 1/6W
R6, R7, R8,
R9 Res., Metal Film, 909 0, 1/6W
R10 Res., Metal Film, 60.4k 0, 1/6W
R12 Res., Metal Film, 402k 0, 1/6W
R13 Res., Metal Film, 2M 0, 1/4W
R14, R16 Res., Metal Film, 90.9k 0, 1/6W
R15, R35 Res., Metal Film, 18k 0, 1/6W
R17, R18,R19
R20 Res., Metal Film, 10k 0, 1/6W
R21 Res., Carbon Film, 430 9, 1/6W
R22, R34 Res., Metal Fi'm, 1k , 1/6W
R23 Res., Carbon Film, 510k ©,
1/6W
R24, R50 Res., Carbon Film, 10k 0, 1/6W
R25 Res., Carbon Film, 2.2M ©, 1/4
R26 Res., Metal Film, 1.3k 2, 1/6W
R27, R30, R31} Res., Metal Film, 1.8k 2, 1/6W
R28, R29,R54| Res., Carbon Film, 200k ,
1/6W
R32 Res., Metal Film, 47k 2, 1/6W
R33, R51,R53} Res., Carbon Film, 1M Q, 1/6W
R37, R55 Res., Metal Film, 100k 2, 1/6W
R38, R39,
R40, R41,
R42, R43,
R44, R45,
R46, R47, Res., Carbon Film, 20k 9, 1/6W
R48, R49
R52 Res., Carbon Film, 360k 0,
1/6W
R56 Res., Metal Film, 909k 0, 1/4W
R57 Res., Carbon Film, 200k 9,
1/4W
R58 Res., Metai Film, 499 9, 1/6W
P.SW Push Switch SPJ-222
A.O.P. Jack Jack, HSJ1087-01-010
