Room Side Replaceable Units
• Install the RSR Adaptor Frame into
the ceiling grid such that the gasketed
channel is pointing upward.
• Using the integral handles, carefully
lay the AstroFan
™
unit onto the RSR
Adaptor Frame, ensuring its bottom
edge rests in the gasketed channel of
the filter frame. See Fig. 3.
– It is recommended that two (2)
people work together to ensure
proper handling of units.
• If using a flexible grid (typically
supported with wires or rod), the unit
must be secured to an engineered
support system, suspended with wire
or rod (supplied by others) using the
universal hanging tabs/mounting pads
affixed to the housing. See Fig. 4.
INSTALLATION
AstroFan
Housing
RSR Adaptor
Frame
Gasketed
Channel
RSR
Filter
Filter
Media
Gel
Grid / T-Bar
Ceiling
Gasket

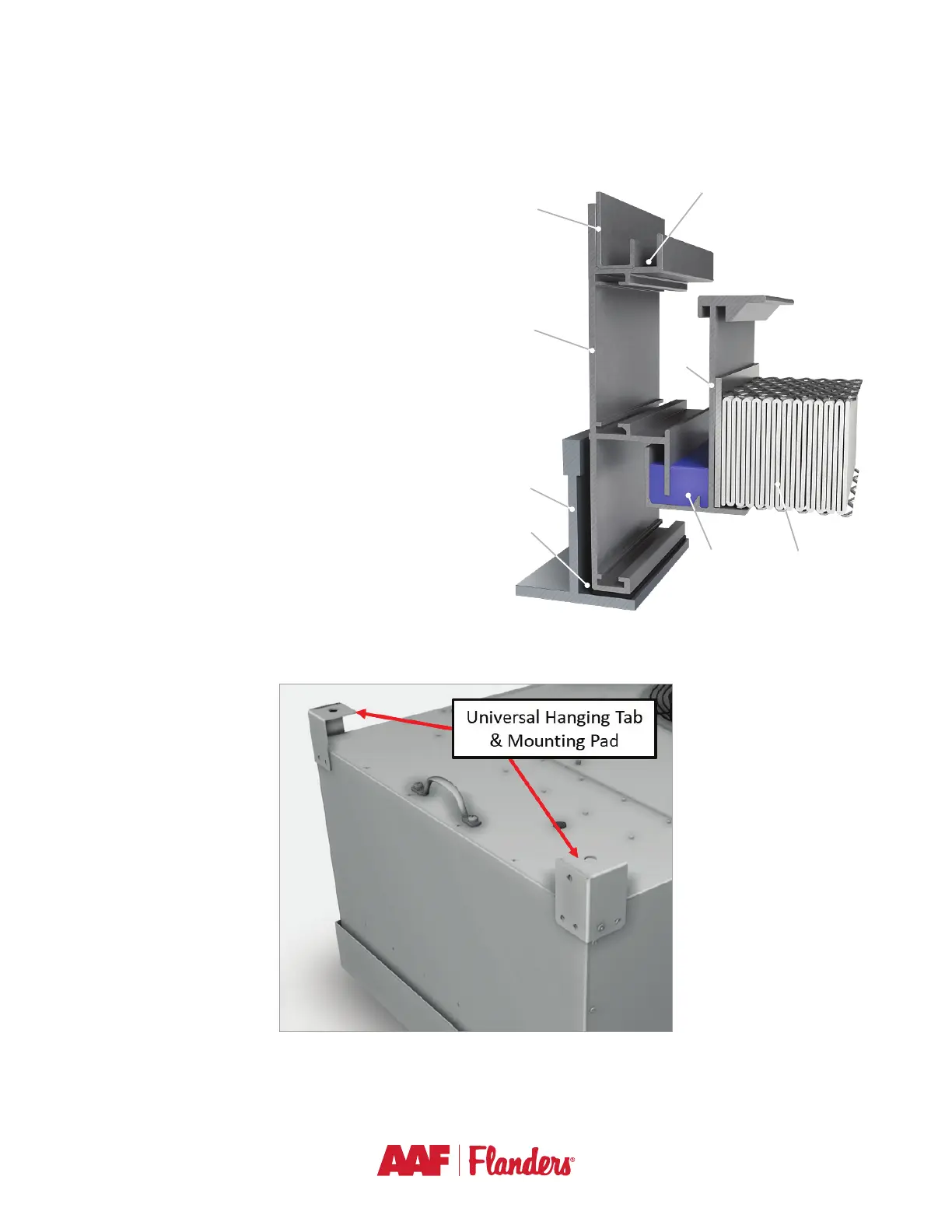

Fig 3: RSR Ceiling Grid Interface
Fig 4: Wire - Hanging Tabs
