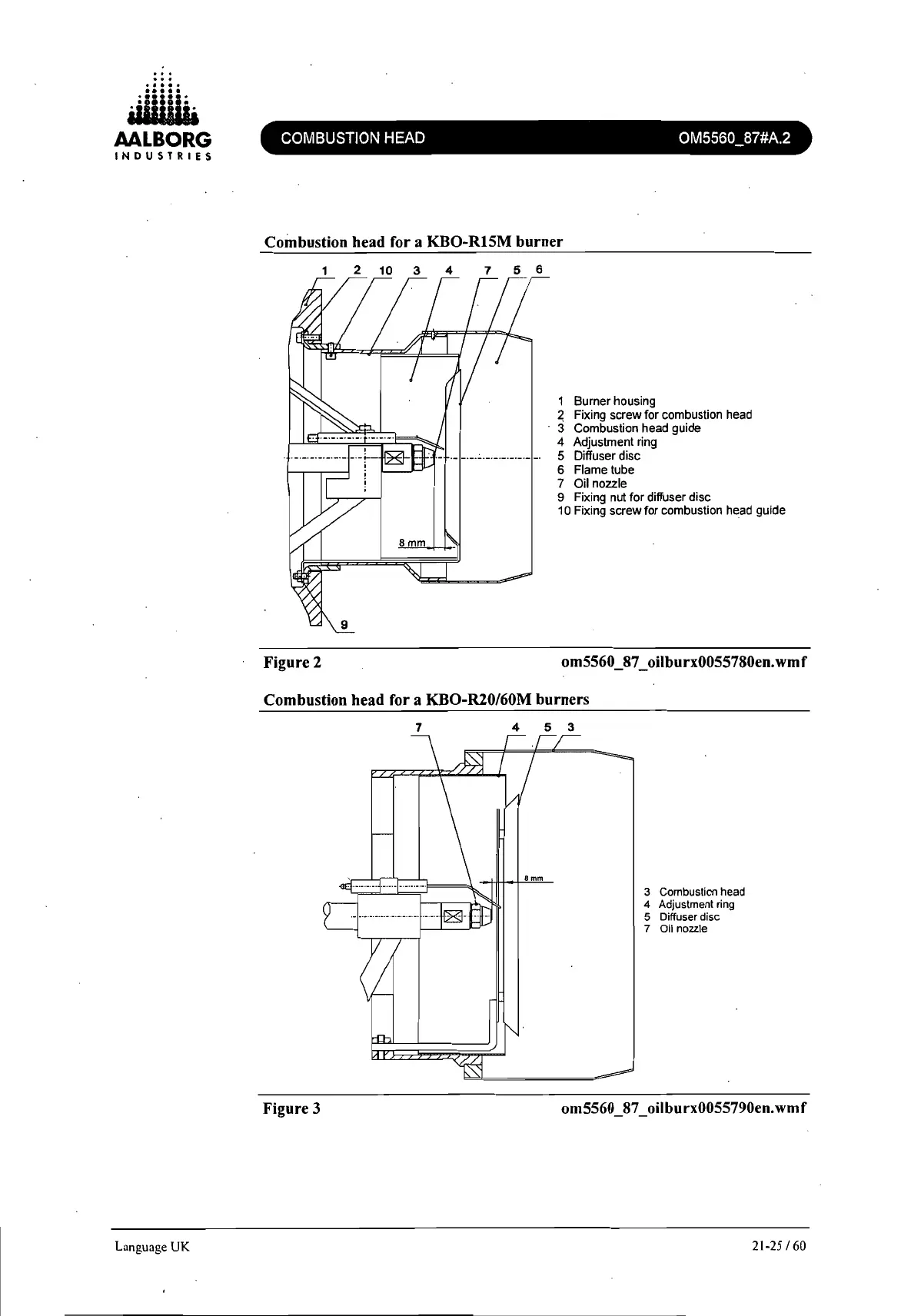

COMBUSTION HEAD OM5560_87#A.2
Coinbustion head for a KBO-R15M
burner
Figure 2
1 Burner housing
2 Fixing screw for combustion head
:3
Combustion head guide
4 Adjustment ring
5 Diffuser disc
6
Flame tube
7 Oil nozzle
9 Fixing
nut
for diffuser disc
10
Fixing screw for combustion
head
guide
om5560 _87_ oiIburx0055780en.
wmf
Combustion head for a KBO-R20/60M
burners
7
4
Figure 3
5 3
3 Combustion head
4 Adjustment ring
5 Diffuser disc
7 Oil nozzle
om5560 _87_ oilburx0055790en.
wmf
