AB Marine Gori - Installation Specifications; Schematic Drawings; Saildrive Nut Socket Sizes; Torque Settings

[Gori 2-Blade Saildrive Propeller Installation and Maintenance Instructions, 6/21/2022]
Distributed By
AB Marine, Inc ▪ 747 Aquidneck Ave ▪ Middletown ▪ RI 02842
Tel: 401-847-7960 ▪ Fax: 401-849-0631
Email: Sales@AB-Marine.com ▪ Website: www.AB-Marine.com

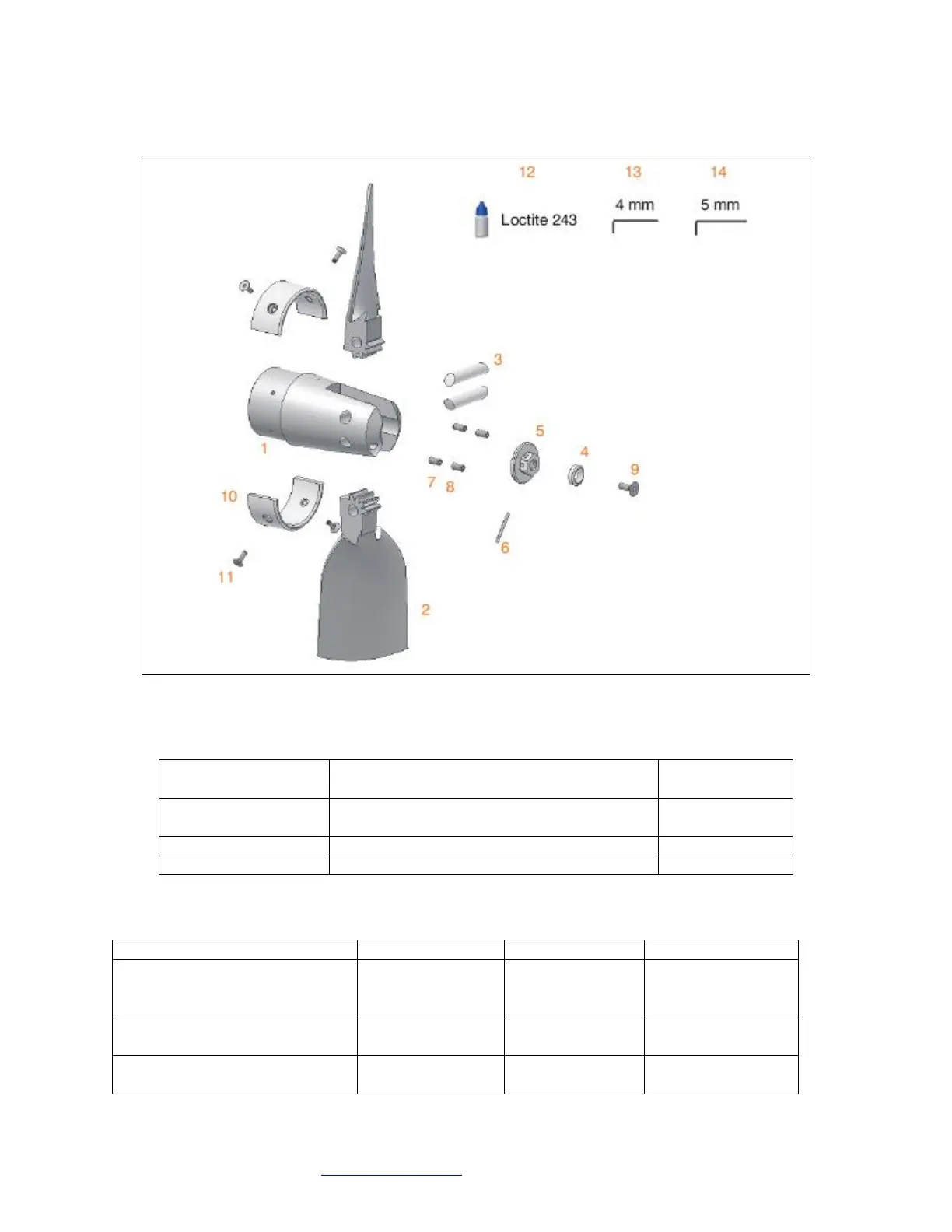

Schematic Drawings
Saildrive Nut Socket Sizes
2-Blade ~ Saildrive
11.5" to 12.5" diameter for Bukh DV-8
SME and DV-10 LSME
22 mm socket
2-Blade ~ Saildrive
11.5" to 12.5" diameter for Volvo Penta
MB2A with 50S saildrive
19 mm socket
2-Blade ~ Saildrive
13" to 18" diameter
24 mm socket
Torque Settings
Saildrive Model
Fastener Type
Fastener Size
Torque
Yanmar SD20/25, 30/31,
Volvo, Lombardini, Beta,
Nanni, Technodrive SP60
Saildrive Nut
M16 X 2.0
45 ft/lb (60Nm)
Yanmar SD40/50/60
Saildrive Nut
M20 x 2.0
72 ft/lb (88-
98Nm)
[All]
Nut Locking Bolt
M8
9-10 ft/lb
(15NM)
