Rear direction indicator lights

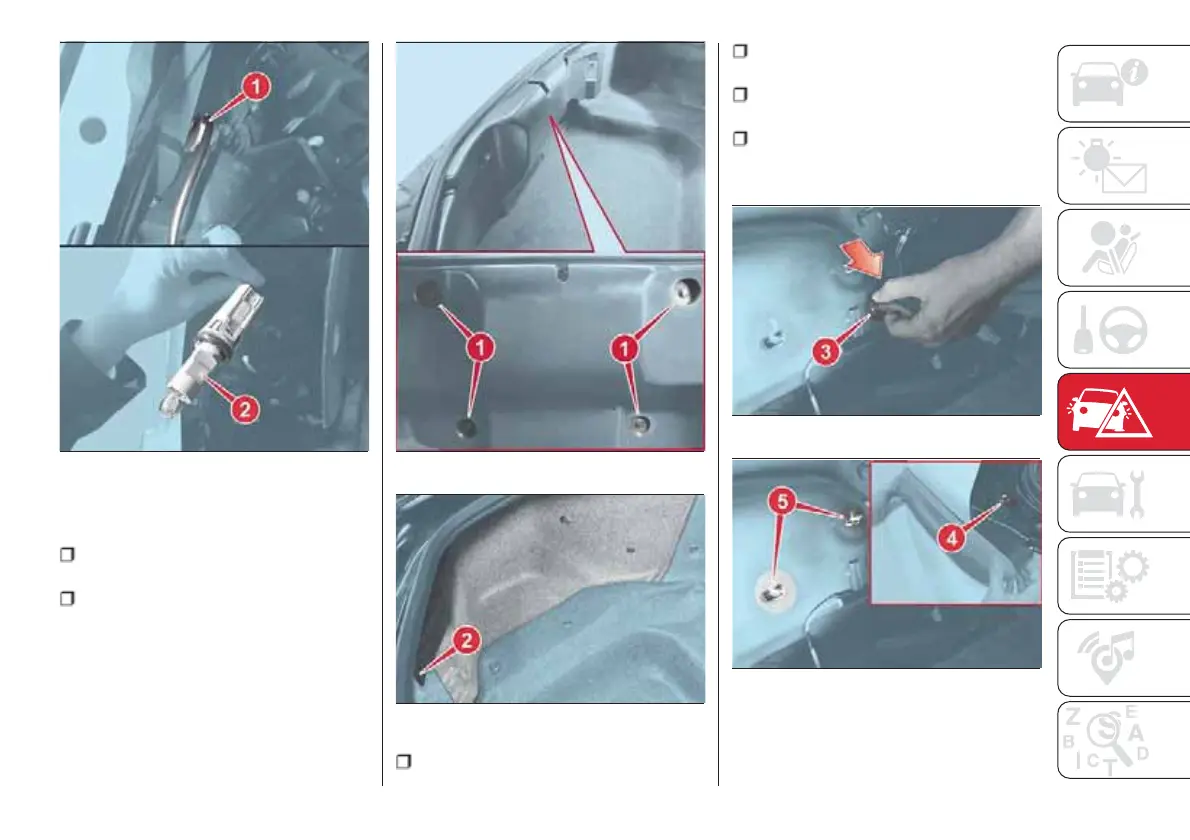

Proceed as follows:
remove the retainers 1 fig. 117 and
the boot lid end trim;
remove the retainers 2 fig. 118 and
then partially peel back the boot lid side
trim;
disconnect the connector 3
remove a screw 4 fig. 120 and the
two nuts 5;
pull the unit rearward 6 fig. 121 to
remove it;
turn the socket and bulb assembly 7
fig. 122 counterclockwise and remove
it.
