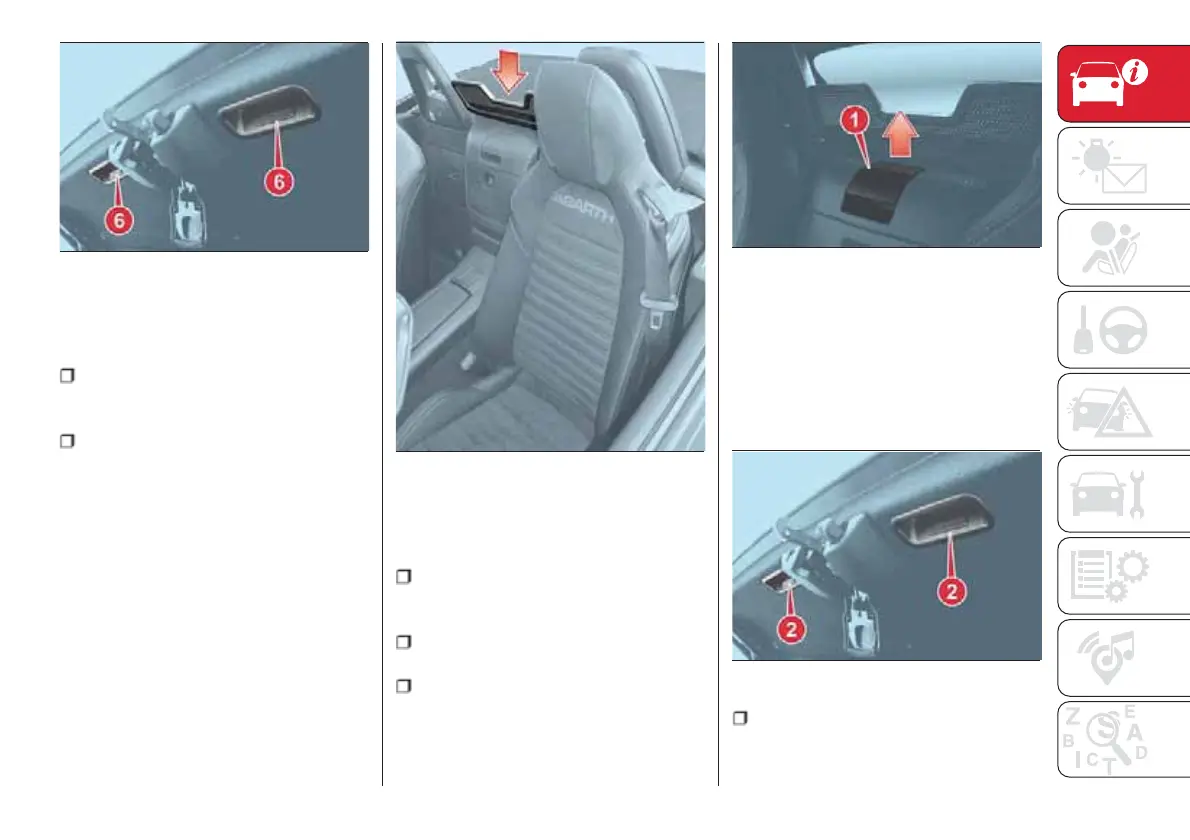

Abarth 124 SPIDER - Raising the Convertible Top

IMPORTANT To lower the convertible
top from inside the vehicle, use the
convertible top's handles 6 fig. 43.
move the convertible top rearward
and fold it while pressing the rear glass
lightly with your hand;
with the back end of the convertible
top pressed, press the front end until a
latch sound is heard fig. 44. Lightly rock
the retracted convertible top to make
sure it is securely locked.
RAISING THE
CONVERTIBLE TOP
Proceed as follows:
make sure the parking brake is
applied. If the engine is running, turn it
off;
pull up the unlock lever 1 to
disengage the lock 1 fig. 45;
standing outside of the vehicle, hold
the convertible top along the front edge
and pull it towards the vehicle front;
IMPORTANT If the power windows do
not go down automatically, fully open
the windows.
IMPORTANT To raise the convertible
top from inside the vehicle, use the
convertible top's handles 2 fig. 46.
sitting in a seat, grasp the convertible
top's handles 3 fig. 47, and press the
convertible top against the windscreen.
43
04110102-123-002AB
44
04110102-126-001AB
45
04110103-121-004-1AB
46
04110103-L23-002AB
43
