RIGHT HAND DRIVE VERSION
RIGHT HAND DRIVE VERSION
DASHBOARD
The presence and position of the controls, instruments and gauges may vary depending on the version.
F0U197Ab

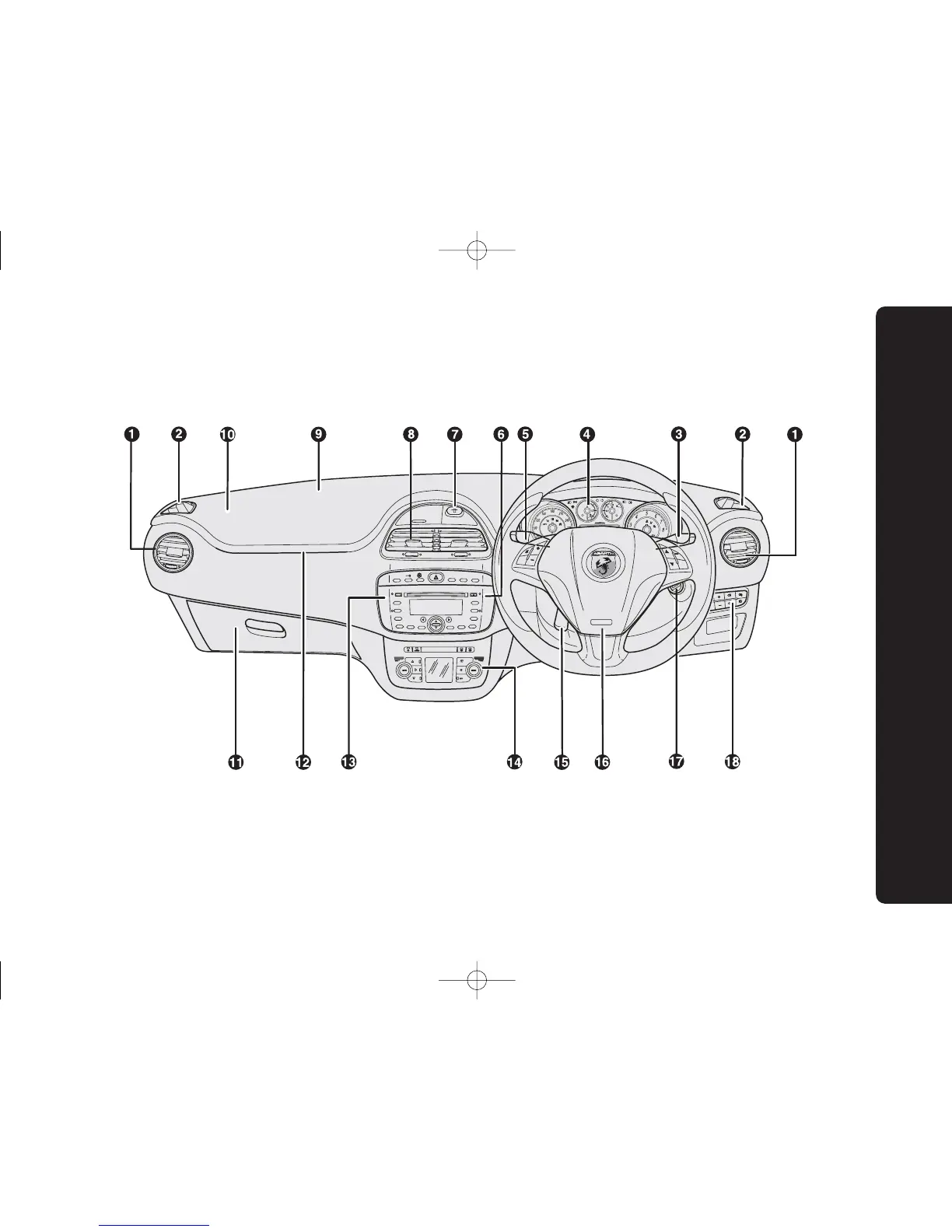

fig. 1
1. Adjustable side air vents – 2. Fixed side air vents – 3. Right steering column stalk: windscreen wiper controls, rear
window wiper, trip computer – 4. Instrument panel – 5. Left steering column stalk: external lights – 6. Panel controls –
7. Portable navigation system setup (for versions/markets, where provided) –
8. Adjustable central air vents – 9. Fixed
upper air vent – 10. Front airbag – passenger side – 11. Glove compartment – 12. Light guide – 13. Radio (for versions/
markets where provided) – 14. HVAC controls – 15. Steering wheel adjustment lever – 16. Front airbag – driver’s side –
17. Ignition device – 18. Control panel: headlamp alignment adjustment/ reconfigurable multifunction display.
