6REPLACEMENT INSTRUCTIONS | ACH580-01 VXR UL TYPE 1 , R1/R2
Step Instruction
Diagram
12

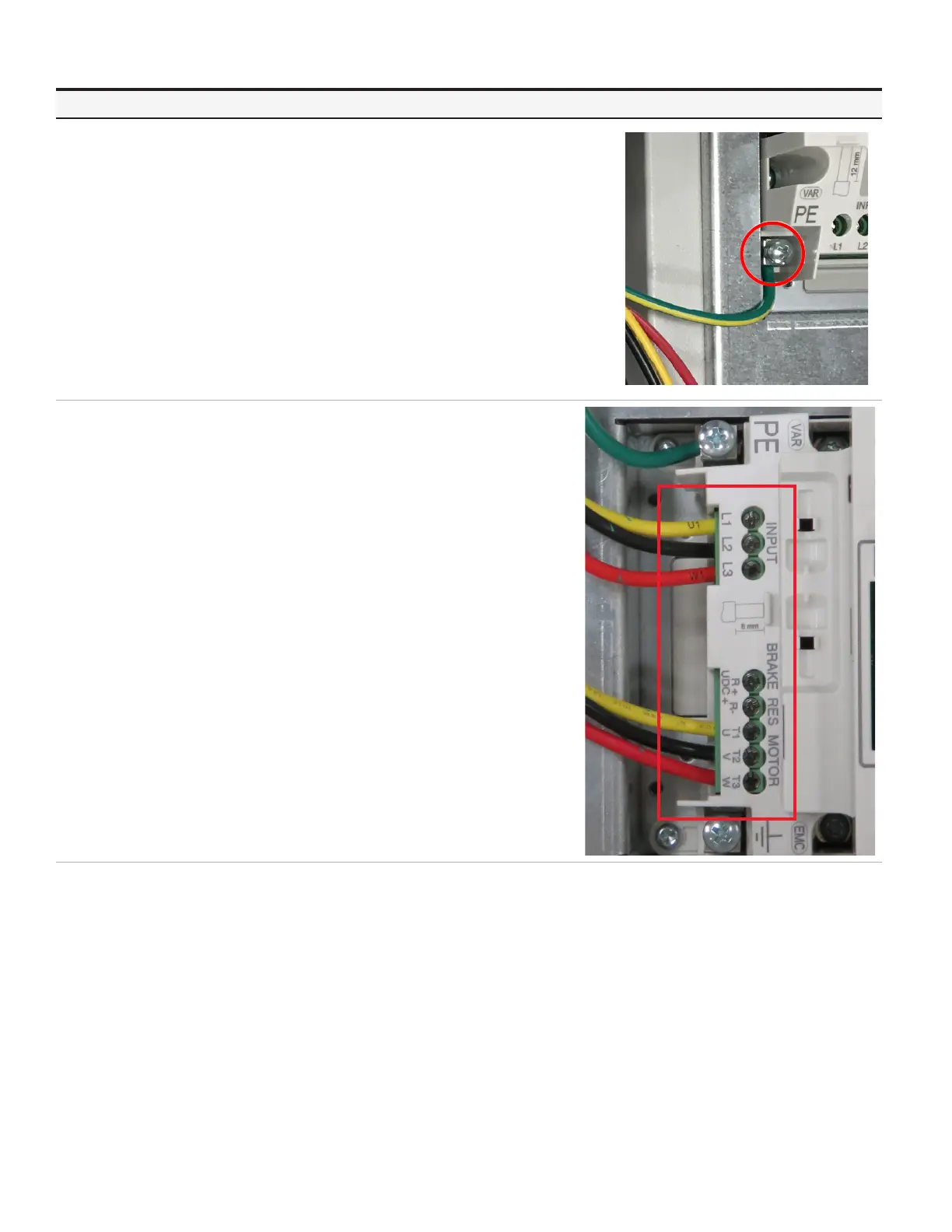

Secure the ground wire to the drive.
Using a PZ3 bit, torque to 14 in-lb (1.5 Nm).
13
Connect the input wires (from fuse block) to the Input Terminals of
the drive.
Yellow U1 to L1
Black V1 to L2
Red W1 to L3
R1 Frame: Using PZ2 bit, torque terminals to 5 in-lb (0.5 Nm).
R2 Frame: Using a PZ2 bit, torque terminals to 14 in-lb (1.5 Nm).
Connect the motor wires (from 1M contactor) to Motor Terminals of
the drive.
Yellow U2 to T1/U
Black V2 to T2/V
Red W2 to T3/W
R1 Frame: Using PZ2 bit, torque terminals to 5 in-lb (0.5 Nm).
R2 Frame: Using a PZ2 bit, torque terminals to 14 in-lb (1.5 Nm).
