ABB AI523 - PM56 xx-2 ETH Disassembly Procedure

To Next Page

To Previous Page

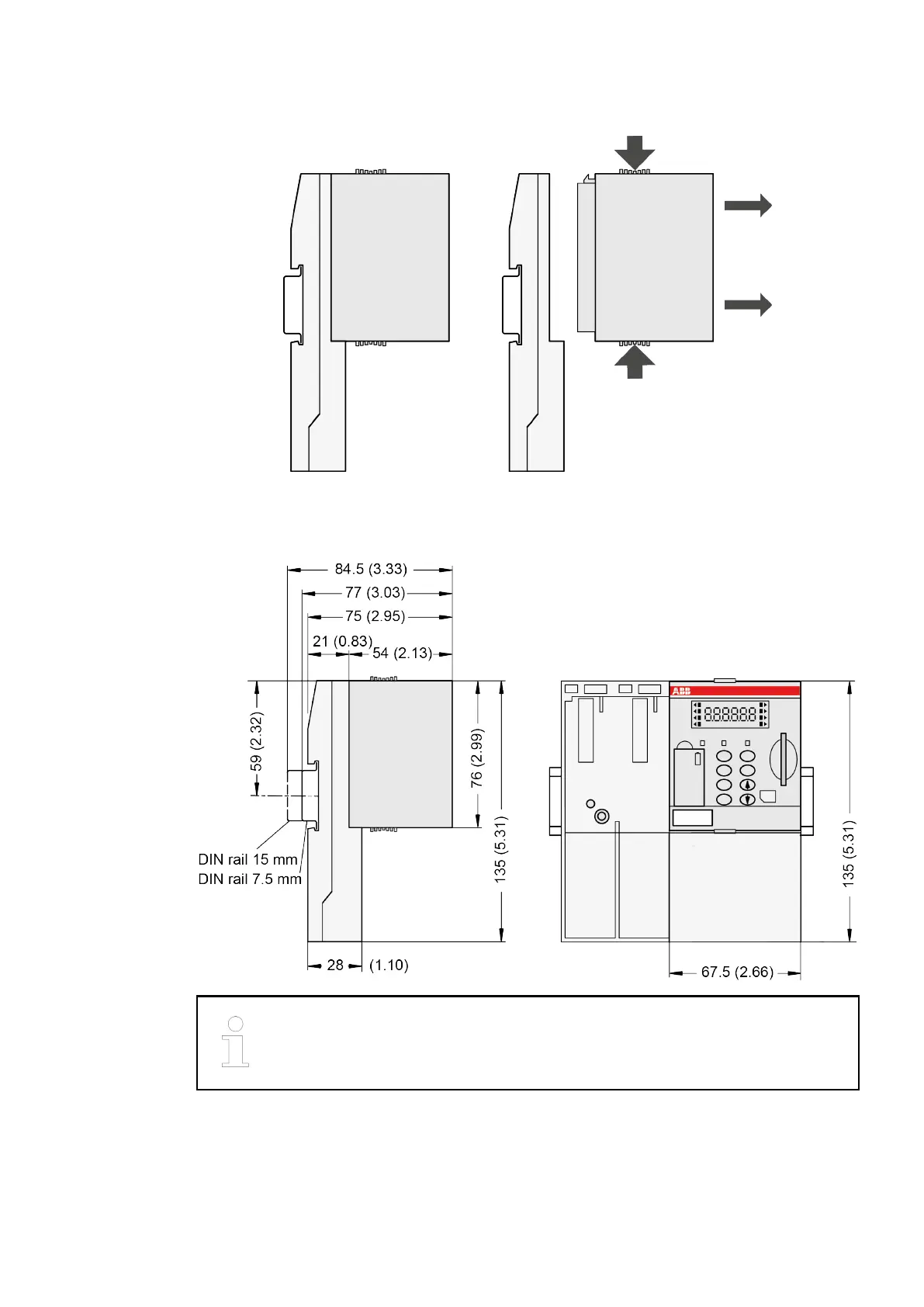

29.2 Disassembly

29.3 Dimensions

The dimensions are in mm and in brackets in inch.

PM56xx-2ETH

Dimensions

2019/11/15 3ADR024117M02xx, 11, en_US 225
