ABB AMS 500 - Printing Tags; Print Job Configuration

AMS 500
ABSOLUTE MARKING SYSTEM
37
Printing Tags

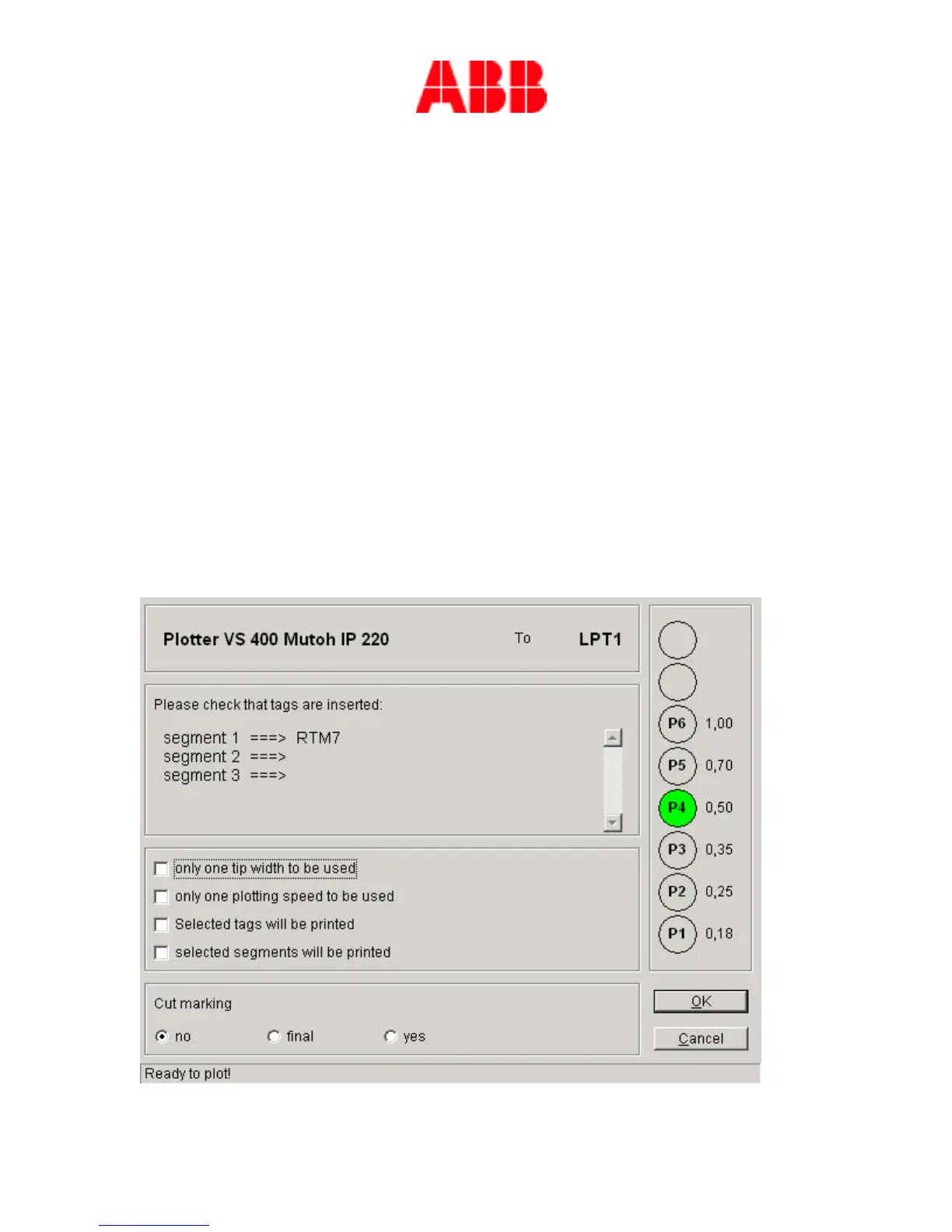

After all the marking sequences required have been entered, the tags can be printed. Click the
printer icon on the toolbar at the top of the window. This opens a dialog box displaying print
information. In the top part of the window the output device (plotter) and communication
port are shown. Immediately below, the elements to be printed are displayed in the according
segment.
