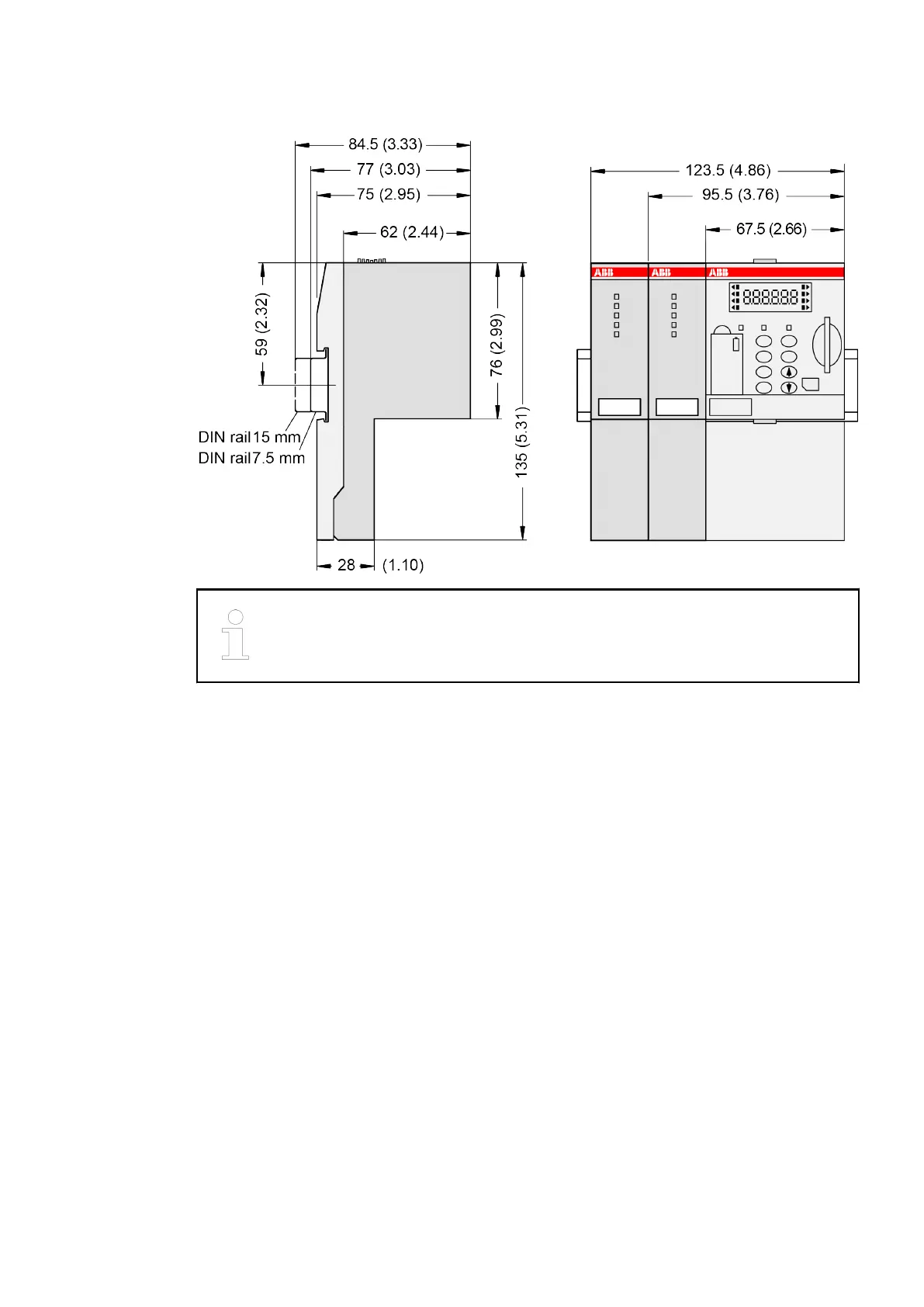

14.3 Dimensions

The dimensions are in mm and in brackets in inch.

CM589-PNIO(-4)

Dimensions

2019/11/153ADR024117M02xx, 11, en_US114
