Wiring with the logic relay
140
1SVC 440 795 M0100

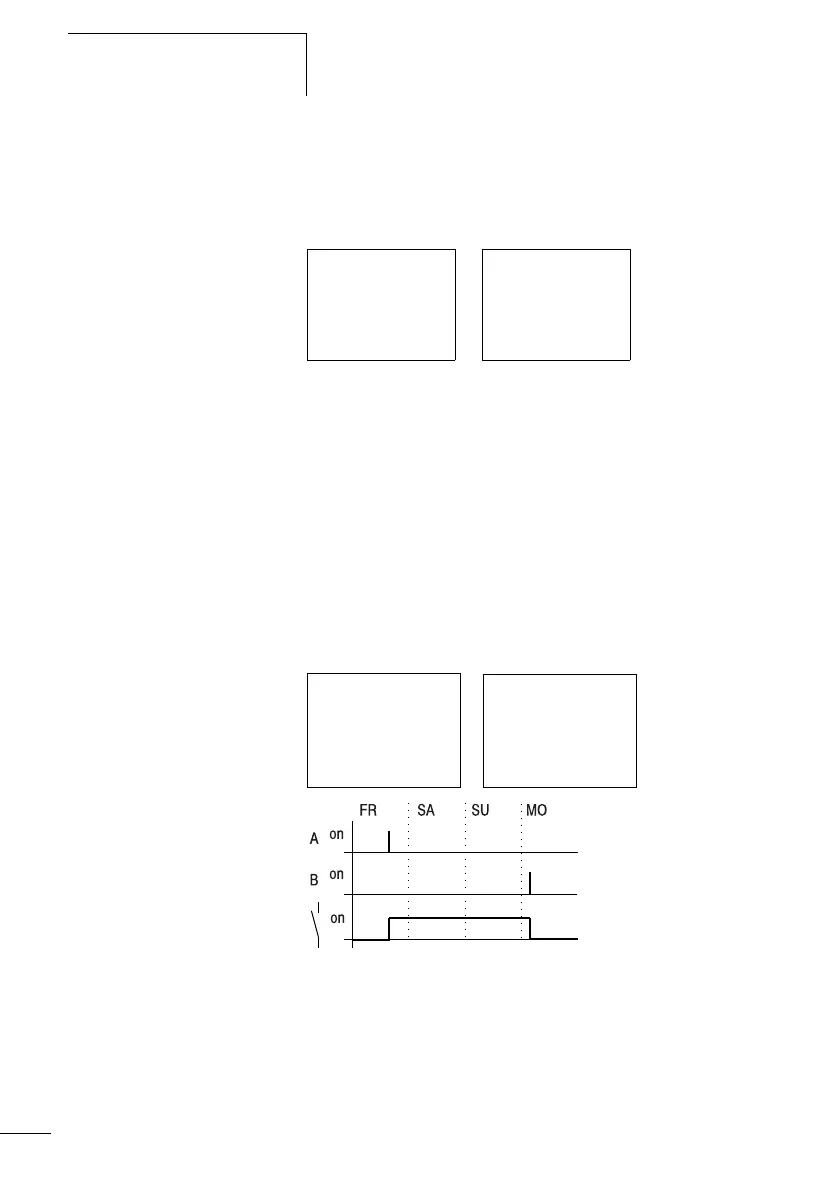

Work days example
The time switch
Ö1 switches on Monday to Friday between
06:30 and 09:00 and between 17:00 and 22:30.
Figure 58: Work days signal diagram
Weekends example
Time switch
Ö2 switches on at 16:00 on Friday and switches
off at 06:00 on Monday.
Figure 59: Signal diagram of “weekend”
Ö1 A +
D MO-FR
ON 06:30
OFF 09:00
Ö1 B +
D MO-FR
ON 17:00
OFF 22:30
Ö2 A +
D FR
ON 16:00
OFF --:--
Ö2 B +
D MO
ON --:--
OFF 06:00
