Timing relays
157
1SVC 440 795 M0100
Timing relay, on- and off-delayed with and without
random switching
Time value I1: on-delay time
Time value I2: off-delay time
Random switching: The contact of the timing relay switches
randomly within the setpoint value ranges.

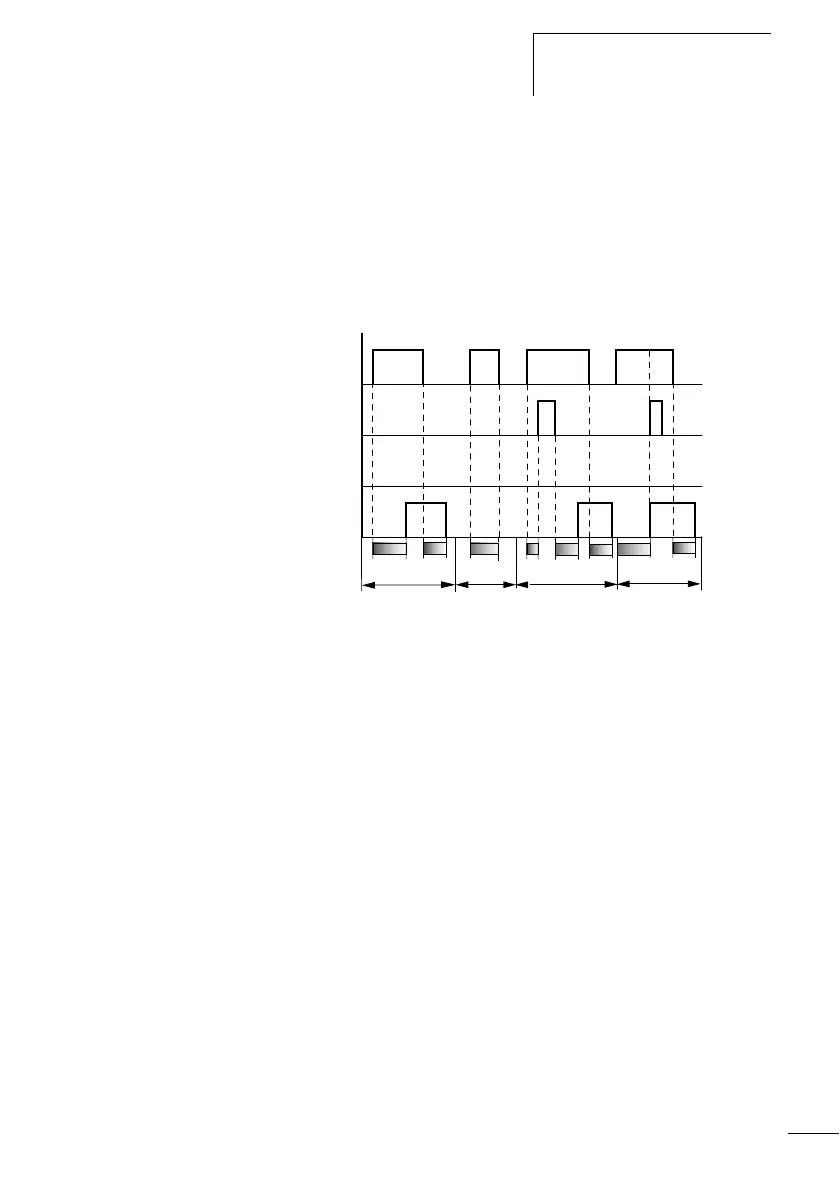

Figure 66: Signal diagram timing relay, on and off-delayed 1
1: Trigger coil TTx
2: Stop coil HTx
3: Reset coil RTx
4: Switching contact (n/o contact) Tx
t
s1
: Pick-up time
t
s2
: Drop-out time
• Range A: The relay processes the two times without any
interruption.
• Range B: The trigger coil drops out before the on-delay is
reached.
• Range C: The stop coil stops the timeout of the on-delay.
• Range D: The stop coil has no effect in this range.
A
B
C
1
2
4
3
D
tt
s1
t
s2
t
s2
t
s1
t
s2
t
1
+ t
2
= t
s1
