ABB EBN861 - Page 8

8
7.4.1 External fuses for EBN861
Apart from the internal fuses (see also 7.4), the EBN861 power electronic unit requires two additional
external fuses, which are supplied separately to the unit.

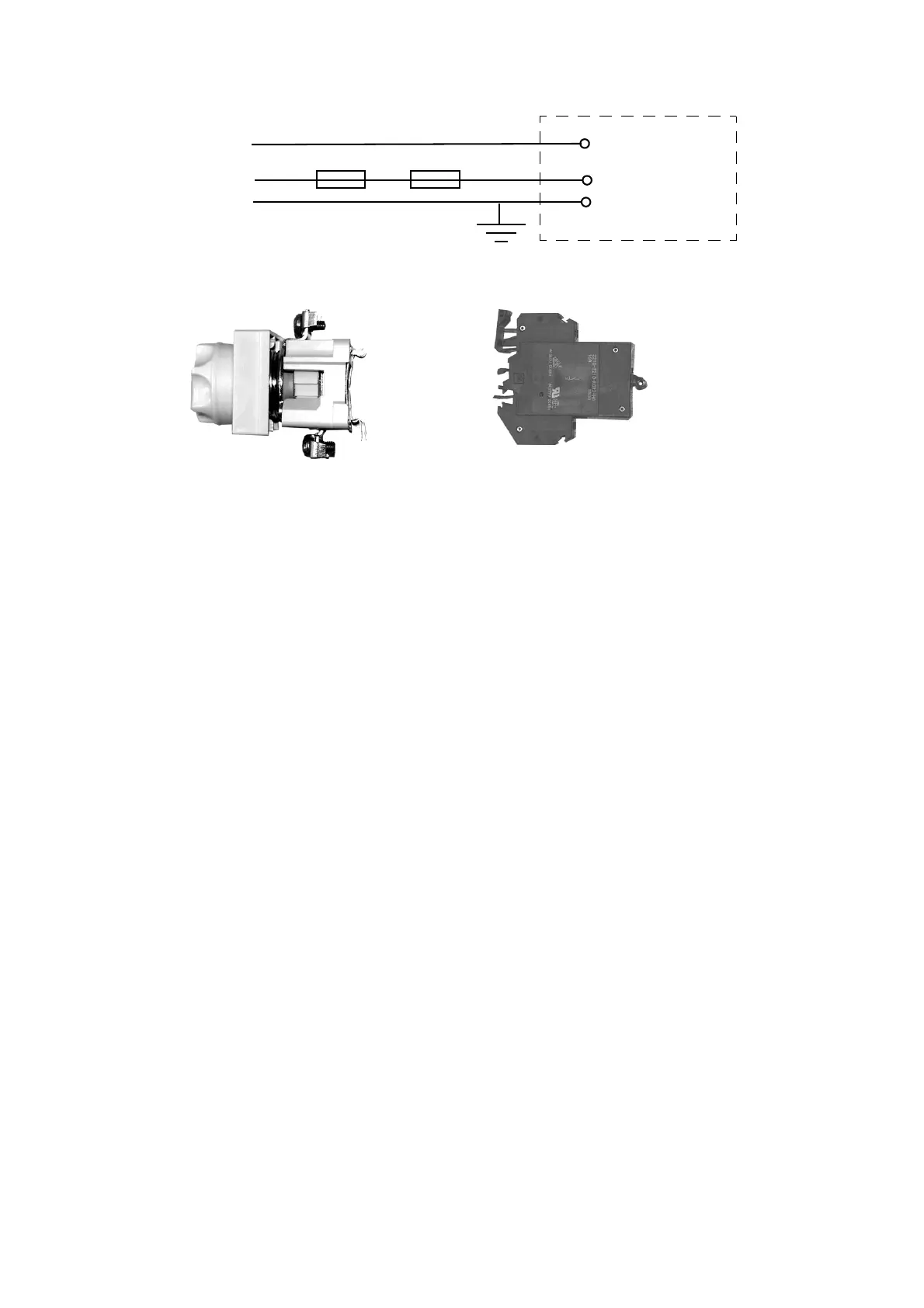

Fig. 4: External fuses
Fig. 5: External fuse; 35 A
Fig. 6: External thermal fuse; 16 A
L
AC 230 V 1~
16 A (ϑ)
35 A
N
PE
Electronic
unit
r00176rxa
r00177rxa
