IEC/EN 60947-2 Annex M
0,5
0,5
0,4
0,3
0,2
0,1
0,06
0
FAULT
∆t (s)
0,3
1
1,5
2
3
Ι∆n (A)
auto
tx10
off
tx1
man
on
FAIL SAFE
Ι∆nx1
Ι∆nx10
Ι∆nx0,1
TEST
RESET
RESET
ON
ELR48P
terminals
5 4 3 2 1
12 11 10 9 8 7
Ι∆
nx0,1
tx1
man
off
Ι∆
nx1
Ι∆
nx10
tx10
auto
on
FAIL SAFE
A
B
C
D
E
RESET
1
0
48
54
(with cover)
48
45
45
R3
63 920
44
ELR48P
5 4
23
1
ALIMENTAZIONE
TERRA
N L1 L2 L3
SOR
Aux
TR...
7 8 9 10 11 12
S2-S1 T2-T1
1 2 3 4
V aux
ELR48P
2CSG252211R1202
ELR48V24P
2CSG452211R1202

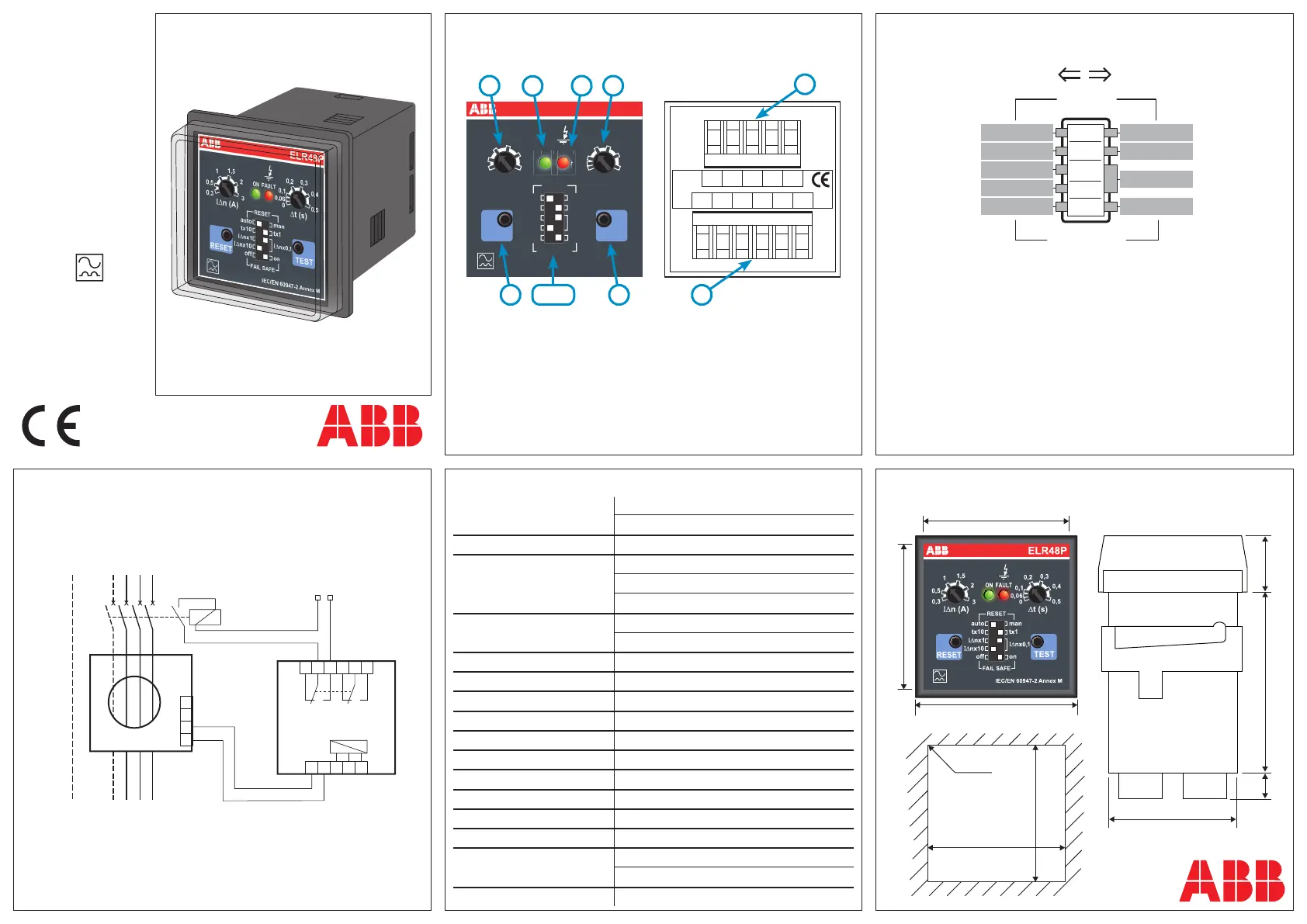

Front panel
residual
current relay
A Type
Description
Connection
Minidip Set Up
Legenda:
1) - Sensitivity setting IΔn
2) - Delay time setting
3) - Test pushbutton
4) - Reset pushbutton
5) - GREEN Led: auxiliary supply presence
6) - RED Led: trip contact intervention
7) - Terminals for connection of output contacts
8) - Terminals for auxiliary supply and toroidal connection
Technical features Dimensions (mm)
Auxiliary Power Supply ELR48P: 110, 230 V ac / 110 V dc (±20%); 50-60 Hz
ELR48V24P: 24-48 V ac (±20%); 50-60Hz
Maximum consumption 3 VA
0,03 ÷ 0,3 A with K = 0,1
Sensitivity setting IΔn 0,3 ÷ 3 A with K = 1
3 ÷ 30 A with K = 10
Delay time setting
0 ÷ 0,5 sec. with K = 1
0,5 ÷ 5 sec. with K = 10
Signallings led ON, led FAULT
Toroidal transformers TR range
Output contact capacity 5 A 250V
Adjustable features Fail Safe, Autoreset
Operating temperature -10 ÷ 60°C
Storage temperature -20 ÷ 70°C
Max humidity ≤ 95 %
Dielectric test 2,5 kV 60 sec.
Mounting position Any
Wiring type Screw terminals / cross section cables 2,5 mm²
Protection degree
IP52 front with cover
(IP40 front) - IP20 terminals
Standard IEC EN 60947-2 Annex-M
Wiring diagram with shunt trip and Fail Safe activated.
Connect the terminals 7 and 8 when undervoltage release is used.
Auxiliary Power Supply Vaux:
ELR48P
• Terminals 2 - 3 = 110 V ac/dc (±20%)
• Terminals 1 - 3 = 230 V ac (±20%)
ELR48V24P
• Terminals 2 - 3 = 24 V ac/dc (±20%)
• Terminals 1 - 3 = 48 V ac/dc (±20%)
Toroidal transformer connection:
To link the terminals 4 and 5 with toroidal terminals S1 and S2
A - Reset Mode
position 1: automatic reset
position 0: manual reset
B - Delay time multiplication constant
position 1: K = 10
position 0: K = 1
C/D - Sensitivity multiplication constant
c,d in position 0: K = 0,1
c in position 1, d in position 0: K = 1
c,d in position 1 K = 10
E - Output contacts Fail Safe
position 1: the relay is normally de-energized
position 0: the relay is normally energized (Fail Safe)
Minidip
26
8
1
5
4 3
FRONT VIEW REAR VIEW
7
EARTH
SUPPLY
SHUNT TRIP
2CSG444006D5101
