Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 102
April 2015 HZTL2412_EN Revision E

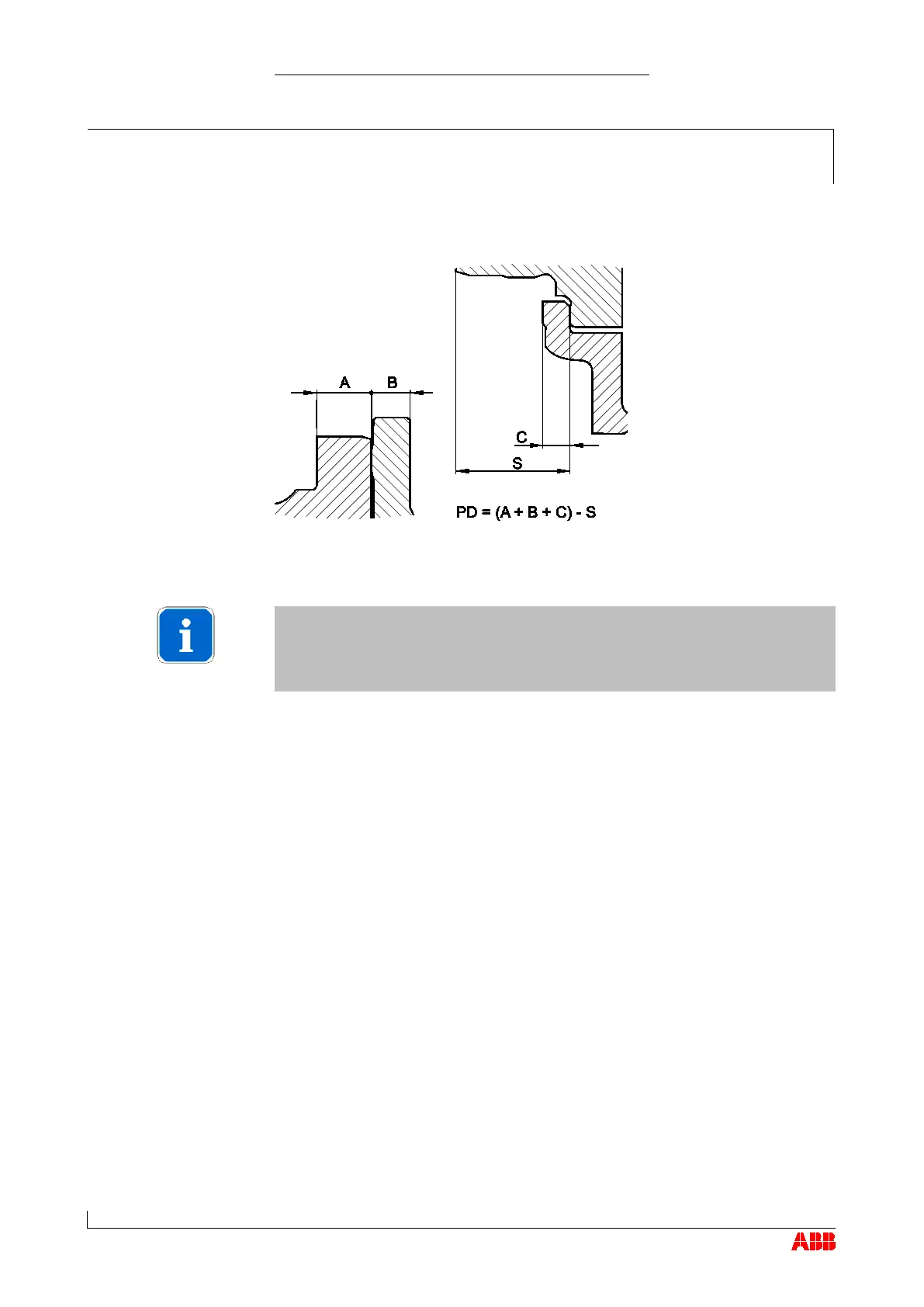

 Calculate the press fit (PD) as shown.
NOTICE
If the calculated value (PD) is outside ±0.2 mm, an official ABB
Turbocharging Service Station must be contacted.
 Measure the axial and radial clearances (see the section Axial and
radial clearances).
Nozzle ring press fit for
multiple inlet turbine
casing
