ABB HT562413 - Table of Tightening Torques

Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly
8
Table of tightening torques
8.6
Page 111
April 2015 HZTL2412_EN Revision E
Table of tightening torques
8.6

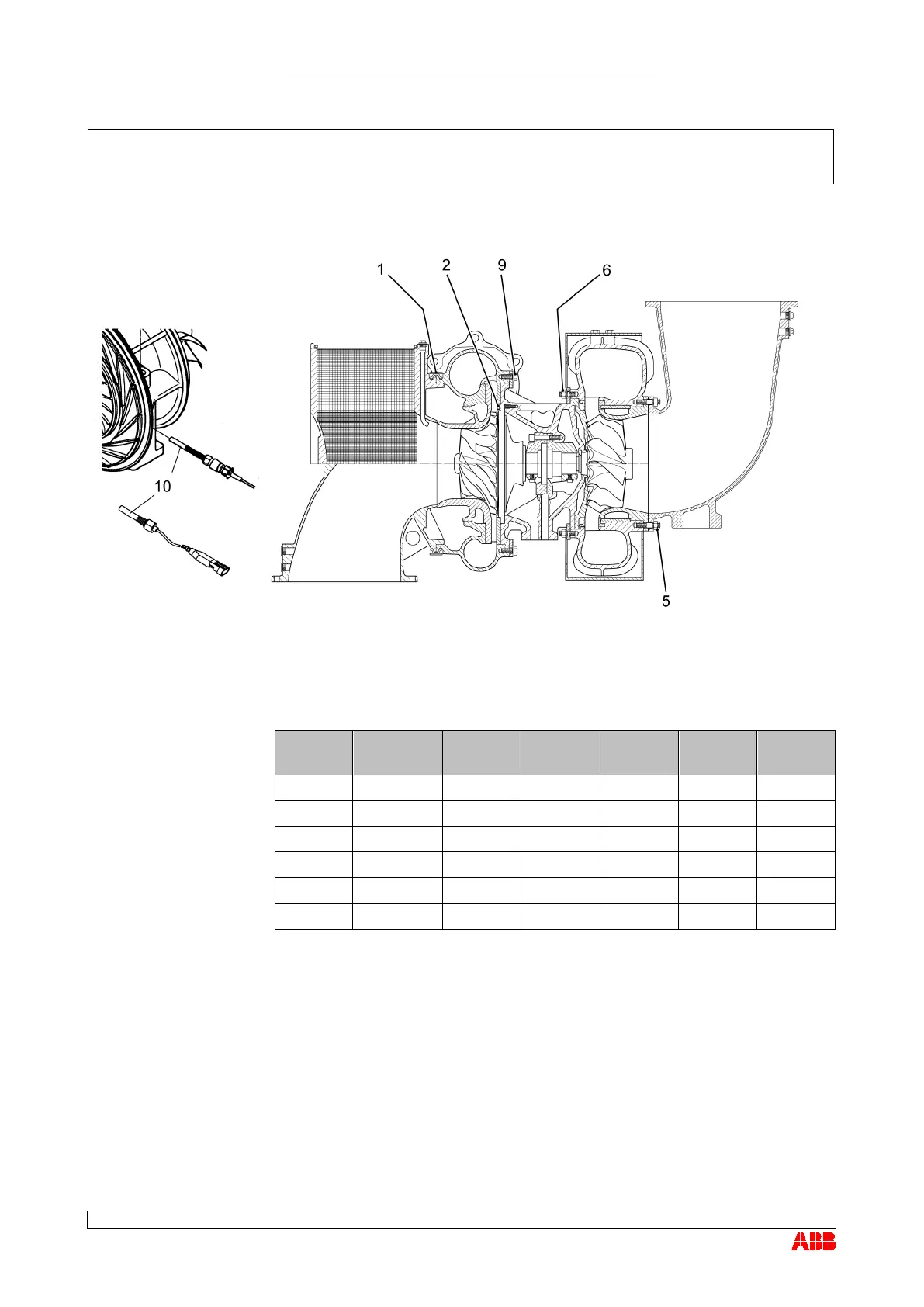

The following tightening torques must be used for the specified screw
connections:
Item
Part
number
TPS44
TPS48
TPS52
TPS57
TPS61
1 72020 60 60 60 60 60
2
42008
6
10
10
20
20
5 52433 20 20 40 65 65
6 51007 25 25 45 75 75
9 72011 35 35 70 105 105
10
86505
15
15
15
15
15
8.6
Tightening torques [Nm]
