8.3 Removing air inlets
 Mark the casing position for assembly.

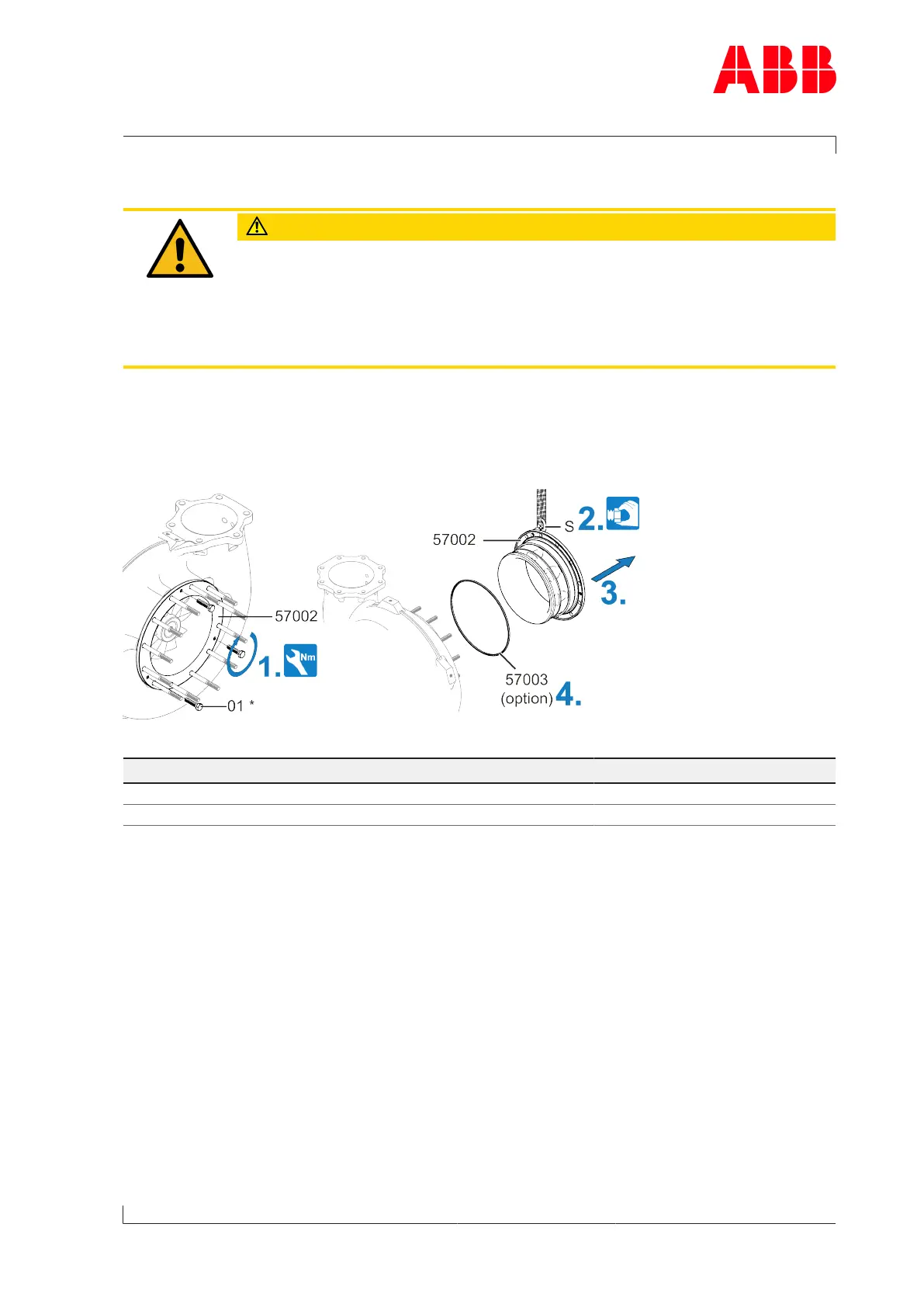

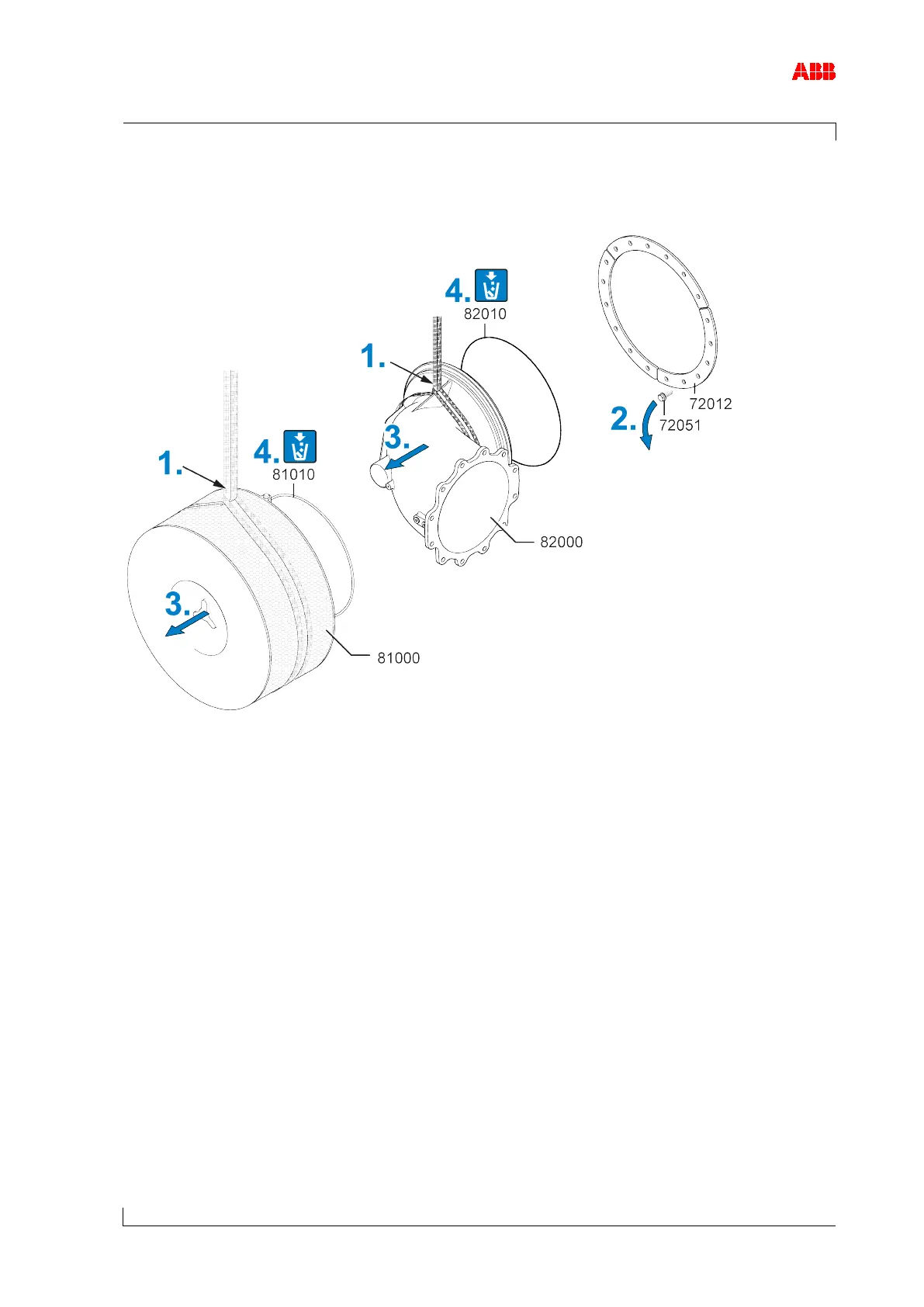

Figure 27: Removing the air inlets
1. Attach lifting gear to the filter silencer (81000) or air suction branch (82000).
2. Loosen the hexagon-head screws (72051) and remove them with fastening strips (72012).
3. Remove the filter silencer (81000) or air suction branch (82000).
4. Remove and dispose of the O-ring (81010 or 82010).
