Operation Manual / 4 Product description / A150-M.. - A155-M..
8
Dismantling and fitting
Page 102 /
120
© Copyright 2017 ABB. All rights reserved.
HZTL4032_EN
Revision F
January 2017

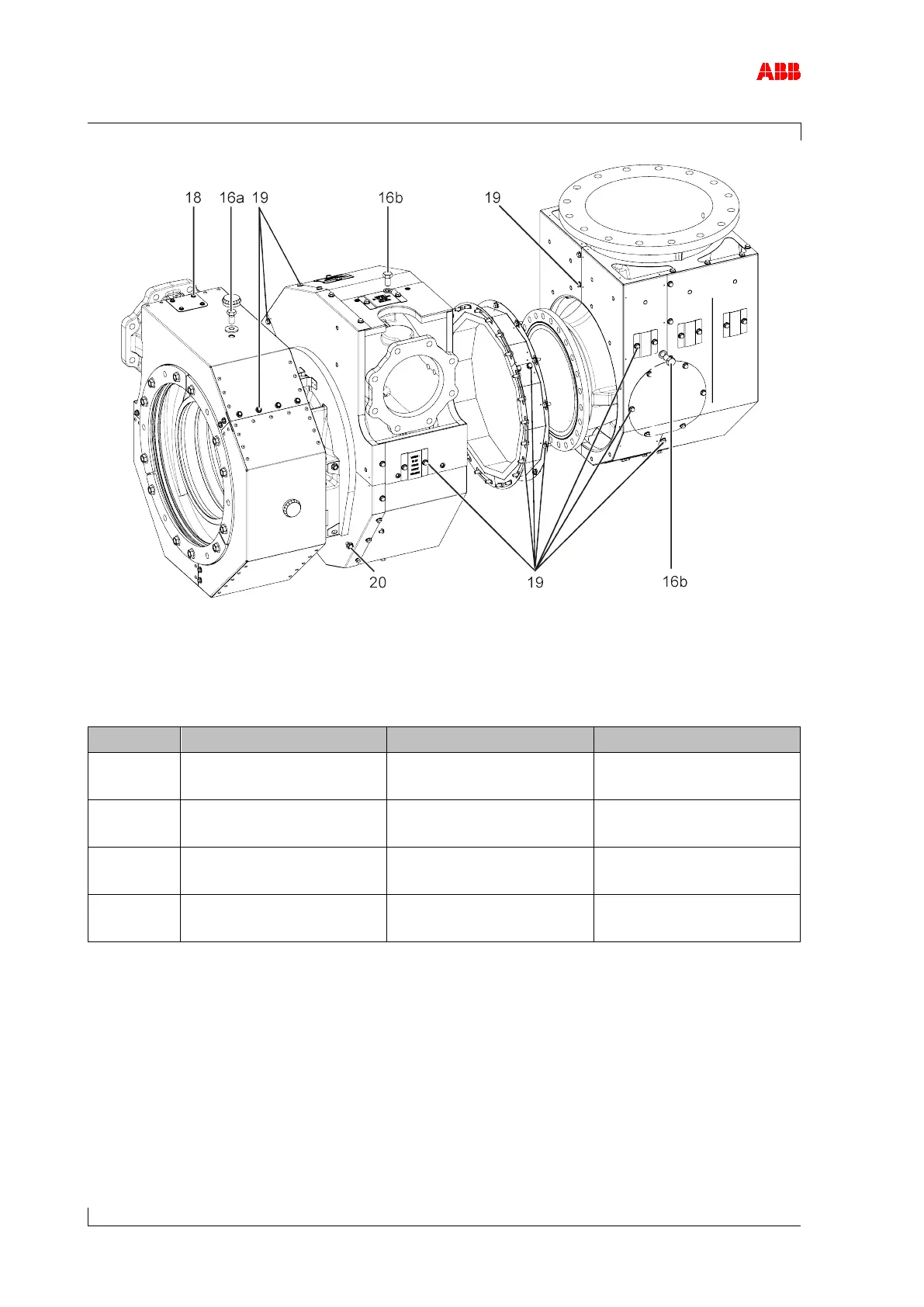

Figure 57: Tightening torques for insulation
The following tightening torques must be observed for the designated screw fittings:
Position
Part number
A150
A155
16b - - M12
65 Nm
M12
65 Nm
18 - - M6
10 Nm
M6
10 Nm
19 - - M8
25 Nm
M8
25 Nm
20 - - M10
45 Nm
M10
45 Nm
Table 49: Tightening torques for insulation
