Operation Manual / TPS44-F.. - TPS61-F..
Disassembling and assembling
turbocharger
Page 95
April 2015 HZTL2412_EN Revision E

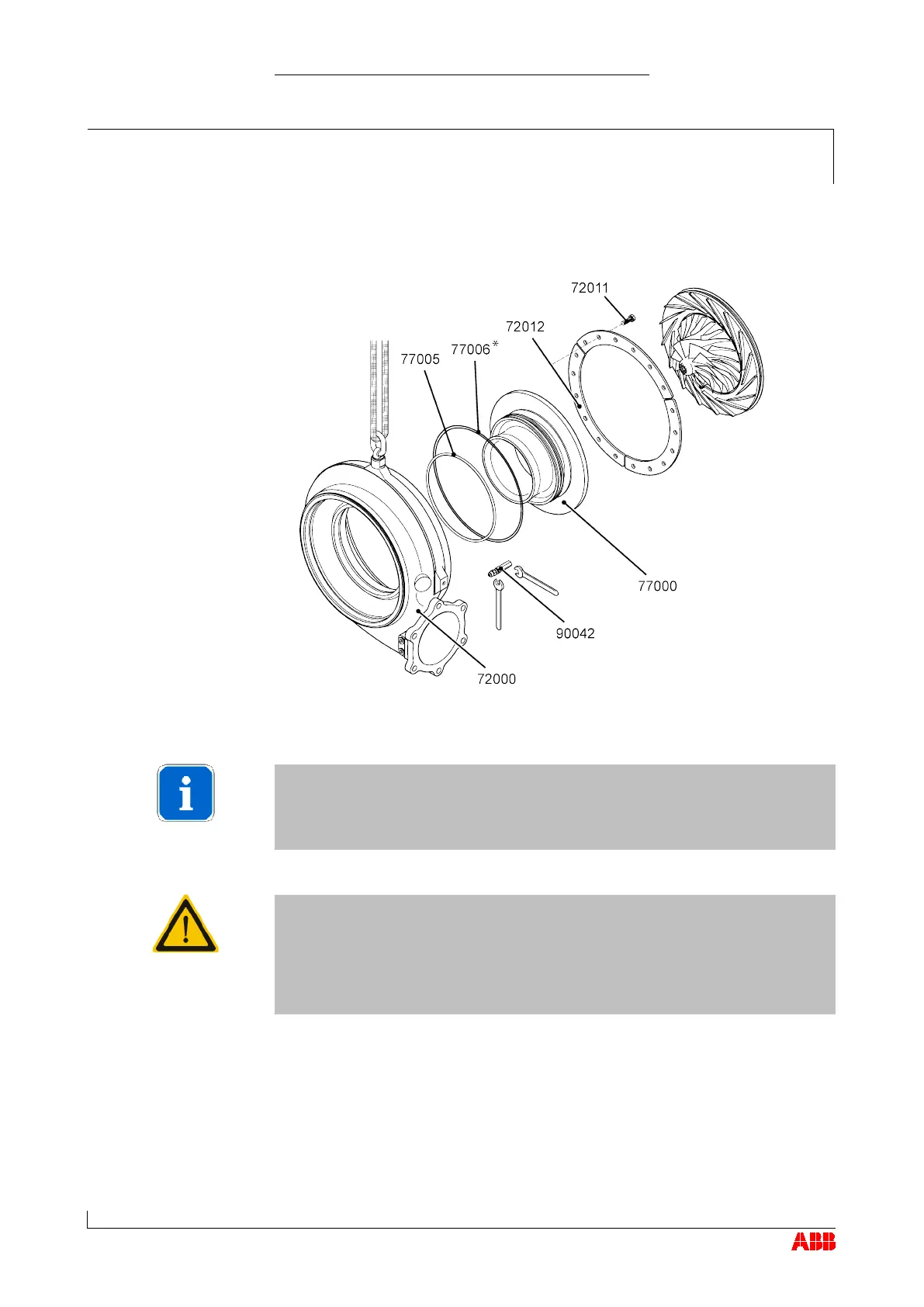

Slightly loosen the screws (72011) and turn the compressor casing
(72000) until the swivel lifting eye can be fastened to the lifting gear.
(77006* only provided with the wall insert with acceleration aid.)
If the compressor casing cannot be removed easily, it can be pressed
off using the press-off tool (90042) against the turbine casing. To do
this, the two cover plates (1, 2) must be removed from the hard
insulation on the turbine casing.
The press-off tool can generate a high axial force and, if it is not used
properly (too much pressure on one side), it can damage the rotor.
It should thus be used alternately on both sides while avoiding
excessive pressure on either side.
Loosen the screws (72011) and remove them together with the
fastening strips (72012).
Move the compressor casing (72000) with the wall insert (77000)
carefully away, doing so horizontally.
Tap the wall insert (77000) out of the compressor casing using a nylon
hammer and remove the O-ring seal (77005).
© Copyright 2015 ABB. All rights reserved.
