ABB HT563757 Manual

Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 96
April 2015 HZTL2412_EN Revision E

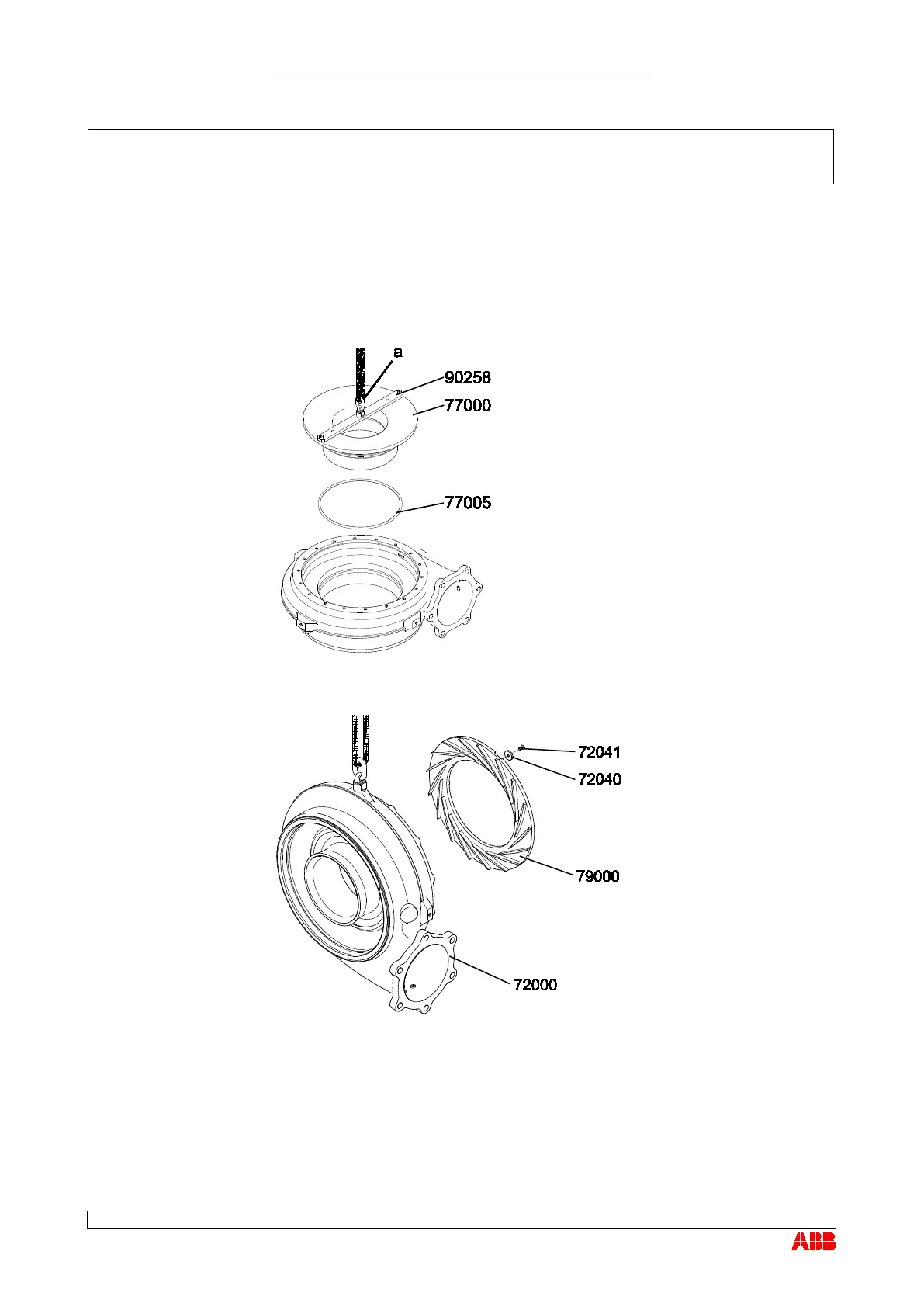

TPS61 wall insert removal
 Fasten lifting beam (90258) to wall insert.
 Fasten swivel lifting eye (a) to lifting beam.
 Remove wall insert (77000) using lifting gear.
 Loosen screws (72041) and remove them together with lockwashers
(72040) and diffuser (79000) from compressor casing (72000).
Disassembly of diffuser
TPS..-F31/32 / FV31/32
© Copyright 2015 ABB. All rights reserved.
