Operation Manual / TPS44-F.. - TPS61-F..
Taking out of operation
9
Shutting down the turbocharger
9.1
Page 115
April 2015 HZTL2412_EN Revision E

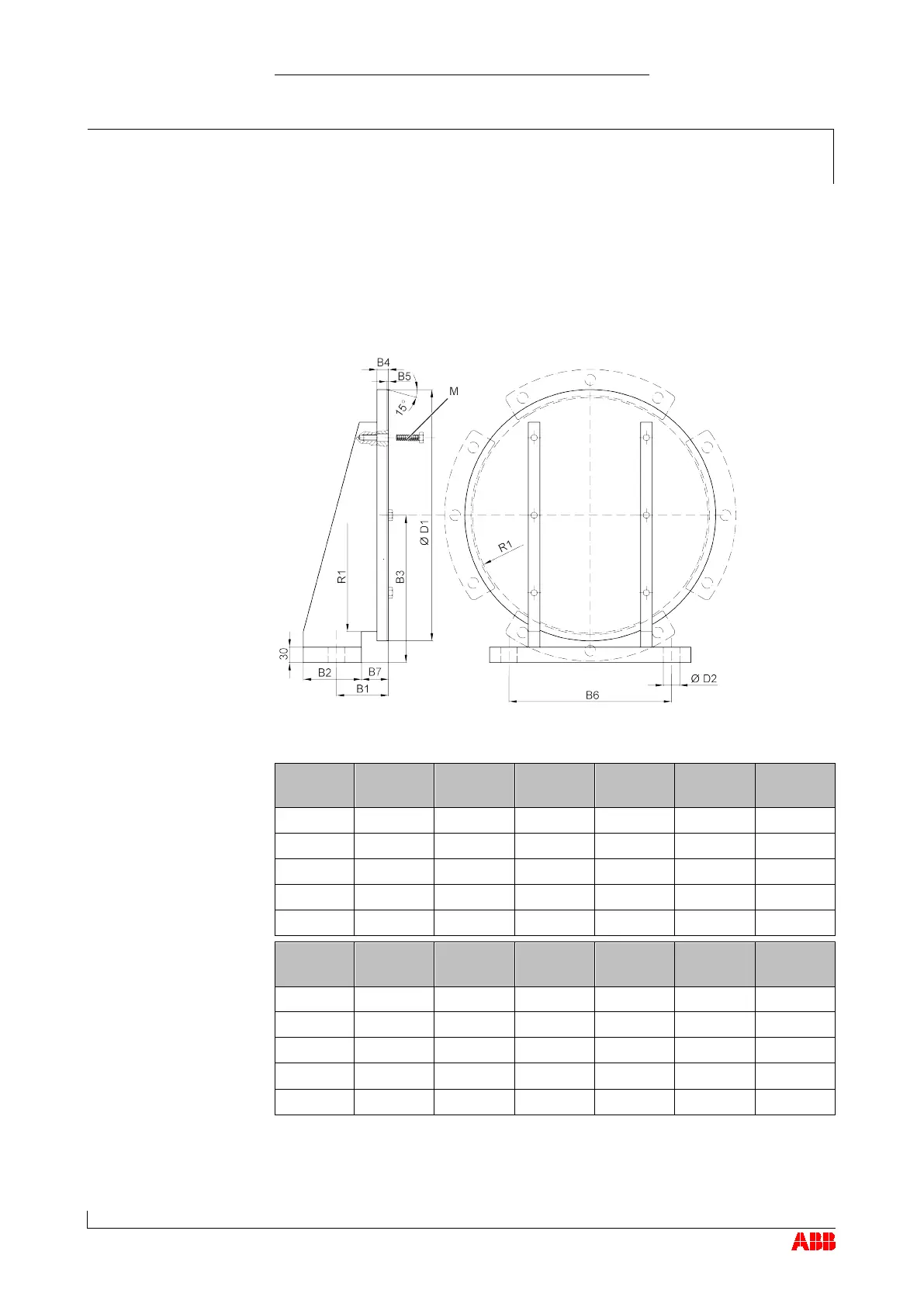

Cover plate drawing
The cover is not supplied by ABB Turbo Systems and must be
manufactured by the operator according to the following drawing.
Material: Common structural steel, according to DIN EN 10025-2
Product
B1
±0.5
B2
B3
B4
±0.2
B5
B6
TPS44 62.6 54 110 11.0 1 144
TPS48
65.7
60
130
11.7
1.5
150
TPS52 79.6 78 155 14.2 1.5 180
TPS57
98.2
100
190
17.2
2
220
TPS61 116.8 120 226 20.5 2.4 260
Product
B7
ØD1
±0.2
ØD1*
±0.2
ØD2
R1
M
TPS44 191.3 191.3 17 ≤88 M8
TPS48
35.7
222.7
227.7
17
≤105
M8
TPS52 39.6 265.7 271.7 21 ≤125 M8
TPS57 48.2 325.7 332.5 21 ≤153 M10
TPS61 56.8 387.7 395.9 25 ≤182 M10
Dimensions in [mm]
© Copyright 2015 ABB. All rights reserved.
