Operation Manual / TPS44-F.. - TPS61-F..
Operation
4
Speed measurement
4.4
Page 50
April 2015 HZTL2412_EN Revision E
Speed measurement
4.4
A speed measuring system permits continuous monitoring of the
turbocharger speed.
CAUTION
Do not use cables as a climbing aid
If you pull the speed measurement cables too hard, contacts can be
pulled out.
 Do not tension the speed measurement cables.

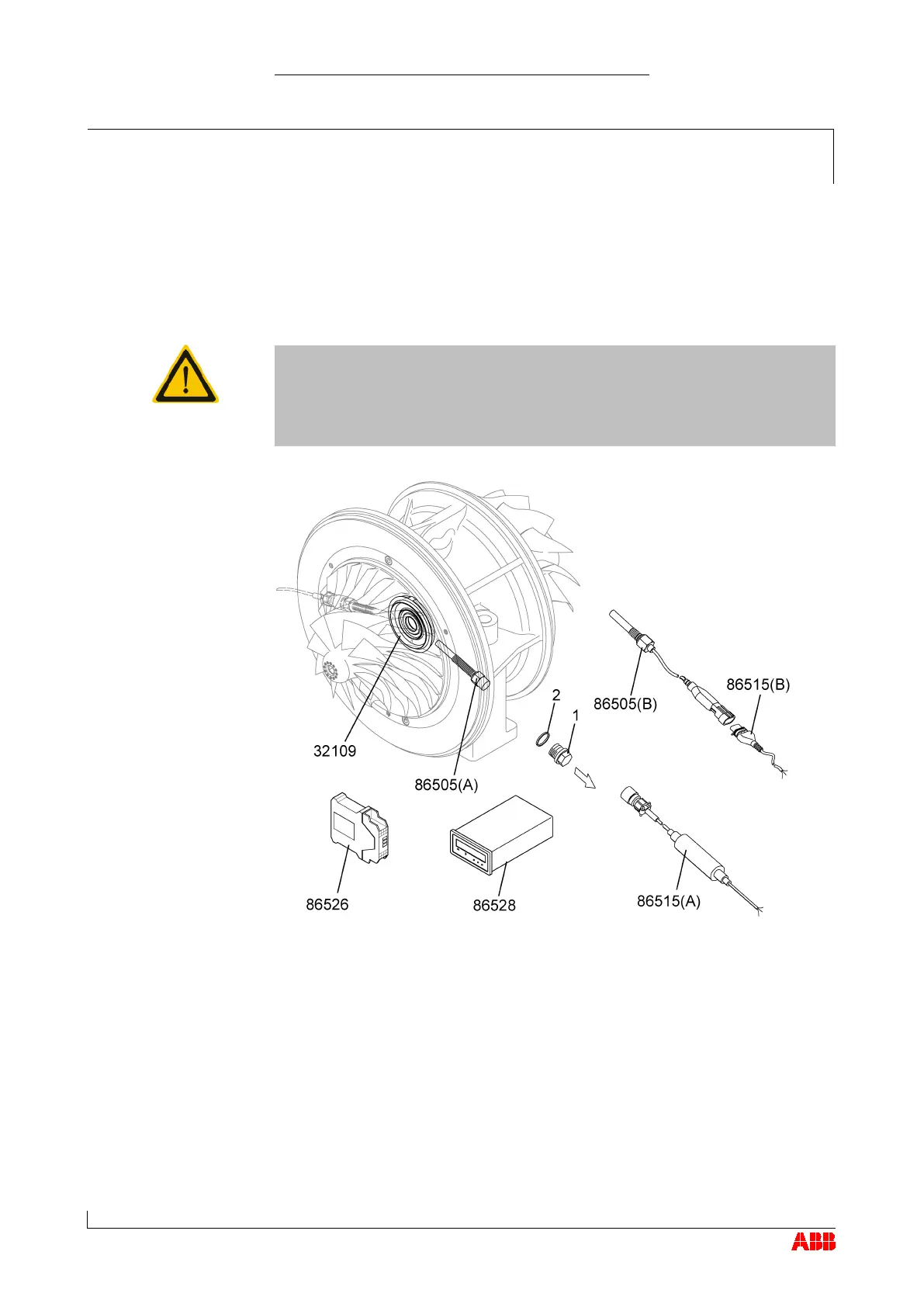

86505(A) Speed sensor (cable not
integrated)
86526 F/I converter
86505(B) Speed sensor (cable integrated) 86528 Tachometer
86515(A) Cable connector for 86505(A) 1 Screw plug
86515(B) Cable connector for 86505(B) 2 Gasket
